Wholesale of Portable Testing Instruments for Coal Mining Machinery

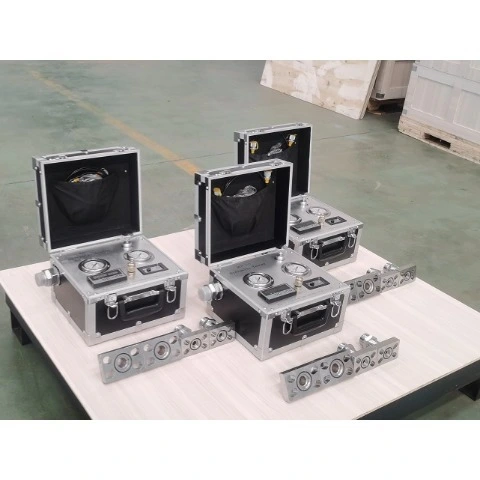

Portable Testing Instrument for Coal Mine Machinery Product Overview
This product is a highly integrated portable testing instrument designed for coal mine machinery, combining the core functions of a Portable Hydraulic Tester and a Hydraulic Pump Flow Tester. Compact and lightweight, it is engineered for easy use in underground and confined onsite spaces, enabling rapid measurement of key parameters such as hydraulic system pressure and flow. Data is displayed in real-time on a high-definition screen, with support for data analysis and storage. Offered with a complete set of accessories, including various interfaces and adapters, it ensures quick connection to a wide range of coal mine machinery such as hydraulic supports, shearers, and pump stations. It provides a comprehensive, all-in-one solution for daily maintenance, fault diagnosis, and performance evaluation of coal mine equipment.

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Measures flow, pressure, and temperature with accuracy.

Long Battery Life

High-capacity battery supports over 12 hours of continuous operation

Wholesale of Portable Testing Instruments for Coal Mining Machinery 7

Low price

We promise the lowest price for new products of the same variety in the world

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Rapid Response

Completes system connection and preliminary diagnosis within 5 seconds

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Multi-Equipment Compatibility

Supports various mining equipment including shearers, hydraulic supports, and conveyors

INSTRUMENT MAINTENANCE

HIGHLAND MYHT-1-5Portable Hydraulic Testers

Reduces equipment downtime by over 40%

测试仪-89

Lowers hydraulic system maintenance costs by approximately 35%

MYHT-1-7Portable Hydraulic Testers

Improves first-time repair success rate Extends equipment service life through preventive maintenance

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

Core Features

Multi-functional Hydraulic Testing: Real-time monitoring of key hydraulic parameters including pressure, flow, and temperature

Intelligent Fault Diagnosis: Built-in expert system automatically analyzes hydraulic system abnormalities

Solution Recommendations: Provides specific repair procedures and preventive advice based on diagnostic results

Mobile Operation: Explosion-proof design, lightweight, operable by a single person

Data Management & Analysis: Records historical data and generates equipment health trend reports

Hydraulic Flow Meter Test Kits HIGHLAND Hydraulic MYHT-1-5

Key Features

High precision-scale span±1%.
Turbine flow sensor-fast response,antipollution,low pressure loss.
With fast-measuring,high-accuracy and good-stability Platinum Resist ance Temperature Sensors:
Flow and temperature display--using four LED digital tube,free of lo w temperature limit,Instantaneous f bw rate 0.000-9999,breakpoints data keep 10 years.
Pressure indication: Seismic-resistant gauges with super stable and overload ability.

Components of instrumentation

MYHT Portable Hydraulic Tester consists of the testing system and data syste m.The testing system includes Simulation Loading Valve,Pressure Meter,Flow Meter and Temperature Meter.Different physical parameters of the hydraulic sy

stem are converted into electric parameters and sent to the data processing sys tem.

Wholesale of Portable Testing Instruments for Coal Mining Machinery 17

Application Scenarios

On-site underground hydraulic equipment maintenance

Preventive maintenance inspections

New equipment commissioning and acceptance

Technical training for maintenance personnel

Regular equipment performance evaluation

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic Test Bench 4. Portable Hydraulic Tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
