MYHT Series Portable Hydraulic Tester

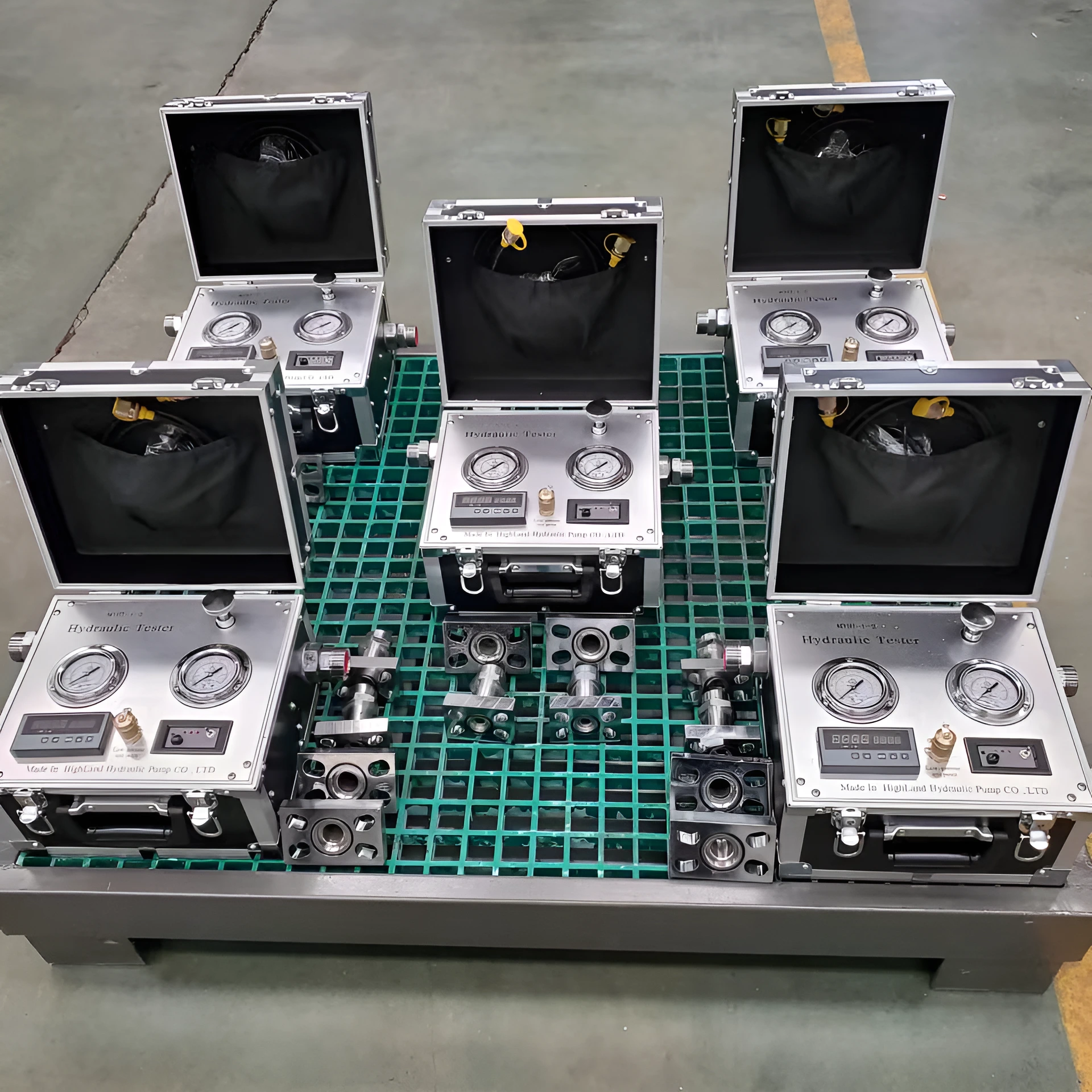

The MYHT Digital Portable Hydraulic Tester is anall-in-one unit designed to test the performance of hydraulic pumps, motors, valves and hydrostatic transmissions.

The easy-to-use design allows the operatorto just switch on and test, without cornptex setup or speciat training.

The MYHT is the ideal tool for pinpointing hydraulic system fauits,reducing downtime, and helping in preventative maintenance.

Simple operation includes a toggle switch to display either flow or temperature readings and a built-inloading valve is specifically designed to enable the operator to simulate the maximum working pressuresafely during normal machine operation.

PATENT NO: ZL 200520080054.X

● UP TO 500 LPM

● UP TO 420 BA

● BI-DIRECTIONAL

MOQ:

1 sets

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Max Flow

500L/min

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Net Weight

10.5kg

Dimensions

295*265*210mm

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

HIGHLAND

Products Advantages

The MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Precision

Measures flow, pressure, and temperature with accuracy.

Low price

We promise the lowest price for new products of the same variety in the world

Safety

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Efficiency

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Instrument maintenance

After connecting the instrument, the loading valve must be in the open state before turning on the device, otherwise it may cause danger!!!

液压测试仪1~1

液压测试仪2~1

液压测试仪3

Loading valve

If the loading could not work, please check whether there is some- thing wrong with valve coil and seal.

Battery

The hydraulic tester is droved by 12v lithium battery, which can work more than 30h after being charged about 4-8hour, The battery must be charged by equipped charger.

Flow meter

When it could not show data, it is possible that turbo rotor is stopped. Please open the turbine flow sensor and clean it. lf it still could not work, you should connect with manufacturer.

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

Product FEATUERS

◆ ACCURATE measurement of flow,pressure, peak pressure and temperature.

◆ SAFE to use in both directions of flow.Internal oil by-pass protects muitimeter and operato againstOVerpressure.

◆ Bi-DIRECTIONAL for unrestricted connection and

simplified testing.

◆ FAST checks on pumps, motors, valvescylinders, hydrostatic transmissions.

◆ EASY to operate controls. Connect Into the hydraulic system and simply“Switch on".

◆ OPORTABLE AND LIGHTWEIGHT with the case for easier viewing and cleaning

◆ ORECHARGEABLE POWER: lithium battedes 12v

◆ WARNING: ALWAYS START WITH THE LOADING VALVE OPEN

Installation

MYHT series hydraulic tester can be installed at any point in hydraulic pipeline.The hydraulic oil flow from input to output(Input)of the hydrau-lic tester muust keep over 30cm froms elbow\the links and valves.

Attention:You must open the loading vale when you stat the instrument.If the loading valve is closed,it is dangerous.

1)Once the hydraulic tester works,it could be regulated by loading valve

2)The cold weather could effect the testing precision,when the hydraulic oil keeps about 30℃,the hydraulic tester could wourk well.

3)Please close the switch after testing.

4)Pleas open pressure loading valve before testing.

Product Details

The MYHT Digital Portable Hydraulic Tester is built with high-quality materials, ensuring reliable and durable performance. Made to withstand tough working conditions, it's the ideal tool for efficient and accurate hydraulic testing on the go.

液压测试仪1~1

液压测试仪2~1

液压测试仪3

Packing & Delivery

To protect the goods, we pack the goods at least three layers. The first layer is film, the second is carton or woven bag, the third is carton or plywood case. Glass: plywood box, Other components: covered by bubble firm bag,packing in carton.
