Wholesale of Hydraulic Testers for Combine Harvesters

The Combine Harvester Hydraulic Tester is a practical device specially designed for testing the hydraulic systems of combine harvesters in the agricultural field, with its core advantages highlighting the two major features of "movable" and "complete accessories". In terms of mobility, the device adopts a lightweight body design, equipped with a convenient handle and a non-slip base, which can be easily carried by a single person. Whether it is a field operation site, an agricultural machinery maintenance workshop or a temporary maintenance point, it can be moved and used flexibly without relying on a fixed installation site, greatly improving the flexibility of detection.

At the same time, the product is equipped with a complete set of special accessories, including hydraulic connectors suitable for different models of combine harvesters , extended detection lines, spare sensors, calibration tools and a portable storage box. The complete accessories allow the device to be directly put into testing work without purchasing additional accessories. It can not only adapt to various hydraulic interface types to meet the testing needs of different machine models, but also realize the orderly storage of accessories through the storage box to avoid loss and ensure the efficient and smooth testing process. In addition, the device also has a real-time data display function, which can accurately detect key parameters such as hydraulic pressure, flow rate and temperature, helping users quickly troubleshoot faults and provide reliable guarantee for the stable operation of combine harvesters. It is an ideal testing tool for agricultural machinery maintenance teams, agricultural cooperatives and large-scale growers.

MOQ:

1 set

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

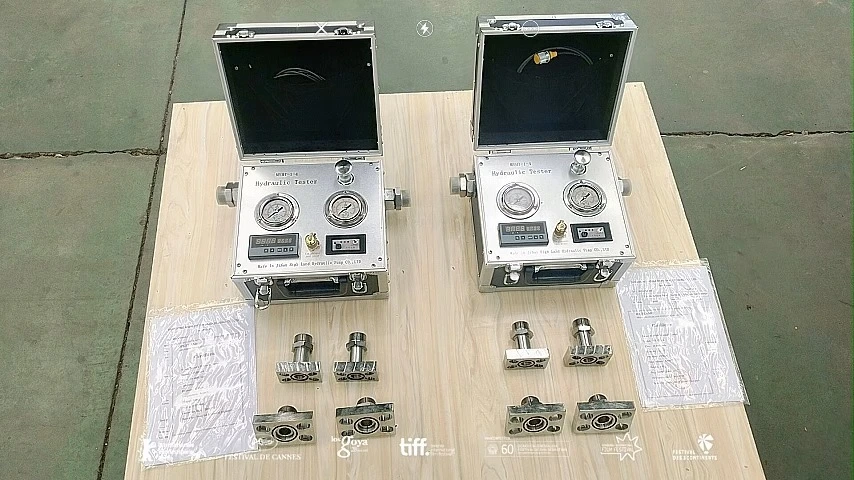

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Measures flow, pressure, and temperature with accuracy.

High Accuracy

Measures flow, pressure, and temperature in real-time (±1% FS), compatible with multiple hydraulic fluids.

Wholesale of Hydraulic Testers for Combine Harvesters 7

Low price

We promise the lowest price for new products of the same variety in the world

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

User-Friendly

Plug-and-play setup, rechargeable battery/AC-DC dual power, and Bluetooth/Wi-Fi for data export via app.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Rugged Build

Aerospace-grade aluminum casing, IP65-rated, operates in -20℃~60℃ environments.

INSTRUMENT MAINTENANCE

MYHT-1-5 Portable Hydraulic Teste.jpg (4)

Portable Hydraulic Teste.jpg (4)

Hydraulic Teste.jpg

Loading valve

If the loading could not work, please check whether there is some- thing wrong with valve coil and seal.

Battery

The hydraulic tester is droved by 12v lithium battery, which can work more than 30h after being charged about 4-8hour, The battery must be charged by equipped charger.

Flow meter

When it could not show data, it is possible that turbo rotor is stopped. Please open the turbine flow sensor and clean it. lf it still could not work, you should connect with manufacturer.

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

Product Overview

The portable hydraulic pump flow tester is a precision measurement device specifically designed for on-site inspection, suitable for flow performance testing of various hydraulic systems. This instrument adopts high-precision sensors and advanced digital processing technology, capable of quickly and accurately measuring the flow parameters of hydraulic pumps.

Performance Features

High Portability Design：The body is made of high-strength lightweight material, with an ergonomic handle for easy carrying by one person; suitable for mobile testing in fields, workshops and other scenarios without fixed installation space.
Robust Construction: Built to withstand harsh industrial environments.
Comprehensive Diagnostics: Provides a complete analysis of system status, making it an indispensable tool for hydraulic maintenance.
Safety Assurance: Incorporates safety designs and overload protection for secure operation.

Usage Notes

Preparation Before Operation：Before use, check the device's battery level , and confirm that the display and sensors are not damaged; verify whether the accessories match the interface of the tested equipment to avoid hydraulic oil leakage caused by interface mismatch.

Safe Operation Specifications：When connecting the hydraulic circuit, turn off the engine of the tested equipment first and release the residual pressure of the system, and place the device away from open flames and sharp objects.

Data Recording and Maintenance：Record data in time after each test to avoid data loss; after the test, wipe the oil stains on the device surface with a clean cloth, and store the accessories in a special toolbox to prevent joint rust and cable damage.

Wholesale of Hydraulic Testers for Combine Harvesters 20

Application Fields

Maintenance of construction machinery hydraulic systems
Performance testing of industrial hydraulic equipment
Aerospace hydraulic system testing
Marine hydraulic equipment inspection
Quality control in hydraulic pump production

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic Test Bench 4. Portable Hydraulic Tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
