The ultimate tool for hydraulic system troubleshooting! this portable hydraulic tester , finishing detection in 5 minutes on-site.

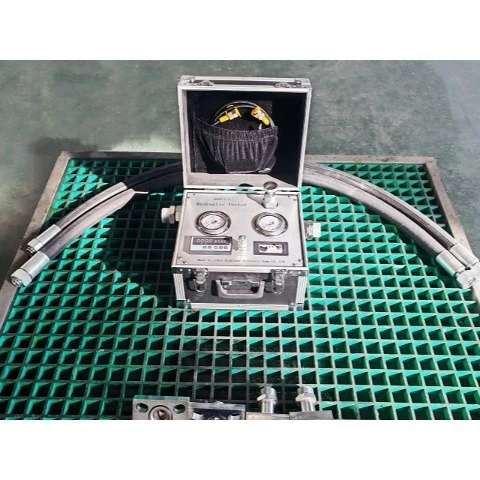

The Portable Hydraulic Tester is a versatile, mobile hydraulic testing device widely used for the inspection and maintenance of various hydraulic systems. This equipment integrates the functions of a hydraulic detector, hydraulic pump flow tester, and portable hydraulic tester, providing accurate data display and comprehensive hydraulic system analysis. Its compact design makes it easy to carry, suitable for use in the field or laboratory. With a complete set of accessories, users can effortlessly perform a variety of hydraulic testing tasks.

MOQ:

1 set

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

Super Portability for Underground Mobile Scenarios：Adopting a lightweight design, the device is compact in size and controllable in weight. A single worker can complete transportation and on-site deployment without additional tools, easily meeting the testing needs of different underground operation points and solving the inconvenience of traditional testers in narrow spaces.

Measures flow, pressure, and temperature with accuracy.

High Precision Measurement

Equipped with high-sensitivity sensors to ensure the accuracy of measurement data.

The ultimate tool for hydraulic system troubleshooting! this portable hydraulic tester , finishing detection in 5 minutes on-site. 7

Low price

We promise the lowest price for new products of the same variety in the world

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Safe and Reliable

Built-in multiple safety protection mechanisms to prevent overpressure, overload, and other abnormal conditions, ensuring the safety of users and equipment.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Easy Operation

Intuitive user interface and intelligent operation process make detection work more efficient.

INSTRUMENT MAINTENANCE

HIGHLAND MYHT-1-4 Hydraulic Flow Meter Test Kits

Portable Hydraulic Testers MYHT-1-4 HIGHLAND

Portable Hydraulic Testers MYHT-1-4 HIGHLAND Hydraulic

Loading valve

If the loading could not work, please check whether there is some- thing wrong with valve coil and seal.

Battery

The hydraulic tester is droved by 12v lithium battery, which can work more than 30h after being charged about 4-8hour, The battery must be charged by equipped charger.

Flow meter

When it could not show data, it is possible that turbo rotor is stopped. Please open the turbine flow sensor and clean it. lf it still could not work, you should connect with manufacturer.

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

Key Features

Mobility & Compact Design: Lightweight with carry handles/wheeled base, ideal for workshops, field service, or remote locations.

High Accuracy: Measures flow, pressure, and temperature in real-time (±1% FS), compatible with multiple hydraulic fluids.

User-Friendly: Plug-and-play setup, rechargeable battery/AC-DC dual power, and Bluetooth/Wi-Fi for data export via app.

Applications: Construction equipment, aerospace hydraulics, marine systems, and more.

Hydraulic Flow Meter Test Kits HIGHLAND Hydraulic MYHT-1-7

Use Cases

Construction Machinery Maintenance: During the maintenance of excavators, our portable hydraulic tester can be used to quickly detect the working status of hydraulic pumps, hydraulic cylinders, hydraulic valves and other components. By measuring pressure and flow parameters, the fault can be accurately judged, greatly shortening the maintenance time and improving the availability of the equipment. For example, when an excavator has a problem of weak digging, the hydraulic system is tested using the tester, and it is found that the problem is caused by insufficient flow of the hydraulic pump. According to the test results, the maintenance personnel promptly repaired or replaced the hydraulic pump, restoring the normal operation of the excavator.

pRECAUTIONS FOR USE

After connecting the instrument, be sure to keep the loading valve open before turning on the device, otherwise it may cause danger!!!

◆ When the tester is working, ensure that the loading valve opens normally

◆ Test completed, turn off the power switch

◆ The instrument test can only be accurate when the oil temperature is above 30 ℃

◆ Before testing, open the loading valve

MYHT-1-5 Hydraulic Flow Meter Test Kits HIGHLAND Hydraulic

The ultimate tool for hydraulic system troubleshooting! this portable hydraulic tester , finishing detection in 5 minutes on-site. 20

Application Fields

Maintenance of construction machinery hydraulic systems
Performance testing of industrial hydraulic equipment
Aerospace hydraulic system testing
Marine hydraulic equipment inspection
Quality control in hydraulic pump production

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic Test Bench 4. Portable Hydraulic Tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
