Suitable for on-site diagnosis and measurement of hydraulic systems in construction equipment.

The Portable Hydraulic Tester is an efficient testing device that integrates the functions of a hydraulic pump flow tester and a hydraulic detector, specially designed for the operation and maintenance of hydraulic systems in construction machinery. With a compact and portable design, the device can be easily carried to the construction site by a single person. There is no need to disassemble the core components of the machinery; it can be connected to the hydraulic system via quick connectors, and installation and commissioning can be completed within 5 minutes, significantly reducing the labor and time costs of on-site testing.
In terms of testing accuracy, this device performs excellently. It can collect key parameters of the hydraulic system in real time, such as pressure, flow rate, temperature, and rotational speed, with a sampling frequency of up to 1000Hz and a data accuracy error of ≤±1%. It can accurately detect problems such as hydraulic pump wear, pipeline leakage, and abnormal pressure, providing reliable data support for fault diagnosis and performance debugging. Whether it is parameter monitoring during daily maintenance or accurate positioning during fault troubleshooting, this portable hydraulic tester can help construction enterprises improve equipment attendance and reduce downtime losses with the dual advantages of "compact portability" and "high-precision testing".

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Measures flow, pressure, and temperature with accuracy.

Accurate Data

Provides high-precision hydraulic system data.

Suitable for on-site diagnosis and measurement of hydraulic systems in construction equipment. 7

Low price

We promise the lowest price for new products of the same variety in the world

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Complete Accessories

Includes all necessary accessories to ensure comprehensive and convenient testing.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Portable Design

Compact and lightweight, easy to carry and operate.

INSTRUMENT MAINTENANCE

road roller-2.jpg

Maintenance and inspection of industrial hydraulic systems

Excavator -2

Hydraulic system testing for construction machinery

Spray machinery

Vehicle Hydraulic Systems (Trucks, Forklifts, etc.)

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

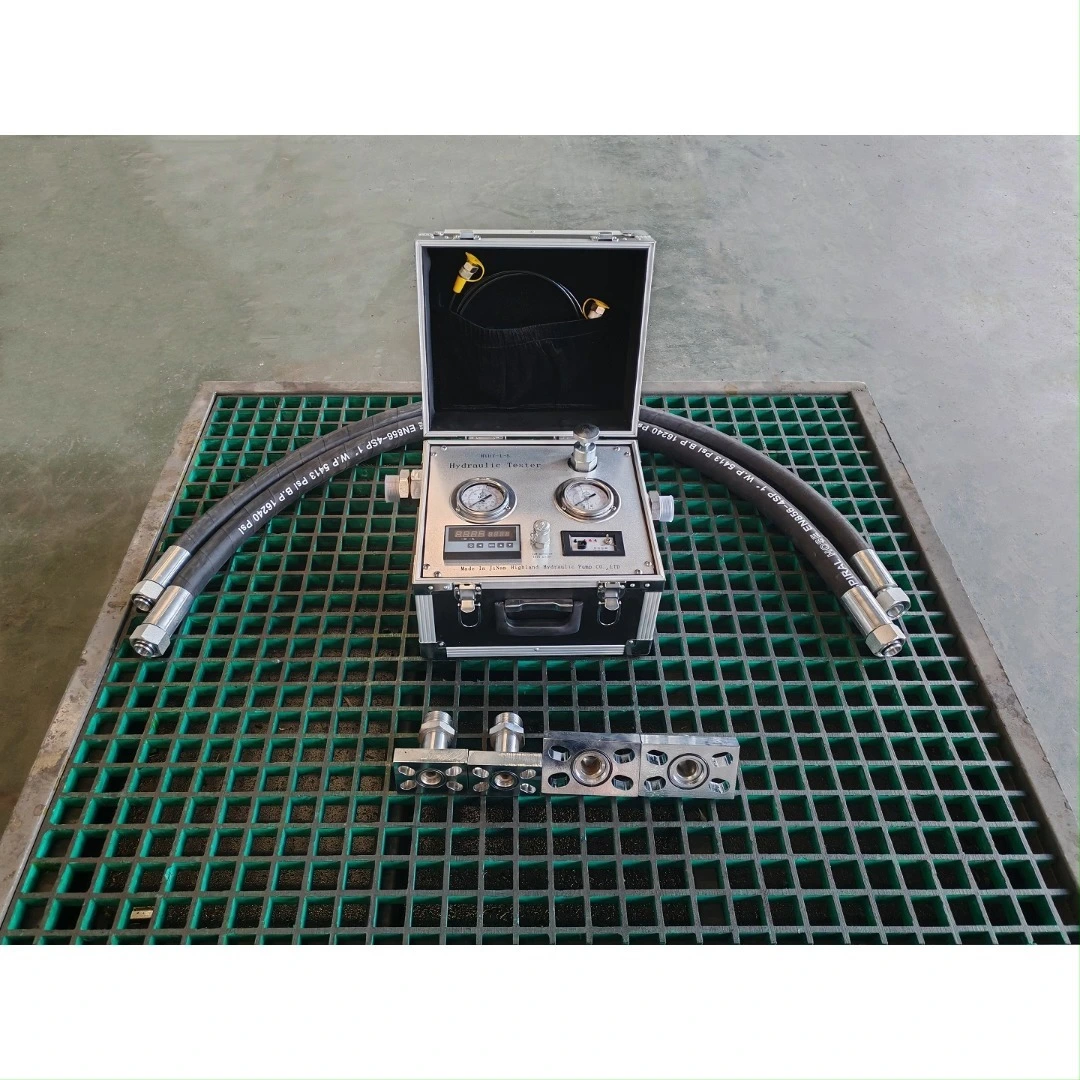

portable hydraulic tester

◆ MYHT series hydraulic tester is a specialized instrument used to detect faults in hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic valves, and hydraulic systems.

◆ Easy to use, operators do not need to undergo specialized training.

◆ MYHT hydraulic tester is an ideal tool for preventing hydraulic system failures.

◆ Under normal operation of the equipment, technicians can safely and easily complete online detection tasks.

Key Features

Multi-functional Integration: Combines hydraulic detector, hydraulic pump flow tester, and portable hydraulic tester in one device.
Portable Design: Lightweight and easy to carry, ideal for on-site use.
Accurate Data: Provides high-precision hydraulic system data.
Complete Accessories: Includes all necessary accessories to ensure comprehensive and convenient testing.

Application Fields

Maintenance of construction machinery hydraulic systems
Performance testing of industrial hydraulic equipment
Aerospace hydraulic system testing
Marine hydraulic equipment inspection
uality control in hydraulic pump production

MYHT-1-2 Portable Hydraulic Testers HIGHLAND Hydraulic

InstRUMENT MAINTENANCE

◆ Loading valve: Under normal connection conditions, if the loading valve cannot be loaded, check whether there are pollutants inside the valve

◆ Battery: The instrument is equipped with a 12V lithium battery, which can work for up to 30 hours when connected and has a charging time of 4-8 hours per charge

◆ Flow meter: The flow meter cannot display data normally, possibly due to contamination. Please contact the manufacturer for resolution

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic Test Bench 4. Portable Hydraulic Tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
