Portable Hydraulic Tester for Rapid Detection of Pressure, Flow, and Temperature

The Portable Hydraulic Tester is a high-performance diagnostic tool that integrates the measurement of three critical parameters: pressure, flow, and temperature. Designed for hydraulic maintenance engineers, it provides a rapid and accurate on-site testing solution.

Equipped with high-precision sensors and advanced digital processing technology, this instrument guarantees highly accurate and reliable measurements. Its user-friendly design, coupled with a large LCD screen, ensures clear data visualization and straightforward operation. The rugged industrial housing guarantees durability and stability even in the harshest working environments.

MOQ:

1 set

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Measures flow, pressure, and temperature with accuracy.

Rapid Testing

Plug-and-play functionality for instant access to real-time system data, significantly improving troubleshooting and system commissioning efficiency.

Portable Hydraulic Tester for Rapid Detection of Pressure, Flow, and Temperature 7

Precision & Reliability

Offers laboratory-grade measurement accuracy, making it the trusted choice for predictive maintenance and performance validation.

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Three Parameters Synchronized

Monitor pressure, flow, and temperature simultaneously to gain a comprehensive view of the hydraulic system's status and accurately pinpoint complex issues.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Ultimate Portability

Its compact and lightweight design, often accompanied by a portable carry case, makes it ideal for various mobile working scenarios, both indoors and outdoors.

INSTRUMENT MAINTENANCE

MYHT-1-7 Portable Hydraulic Testers HIGHLAND Hydraulic

MYHT-1-5 Portable Hydraulic Testers HIGHLAND Hydraulic

Portable Hydraulic Testers MYHT-1-4 HIGHLAND Hydraulic

Loading valve

If the loading could not work, please check whether there is some- thing wrong with valve coil and seal.

Battery

The hydraulic tester is droved by 12v lithium battery, which can work more than 30h after being charged about 4-8hour, The battery must be charged by equipped charger.

Flow meter

When it could not show data, it is possible that turbo rotor is stopped. Please open the turbine flow sensor and clean it. lf it still could not work, you should connect with manufacturer.

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

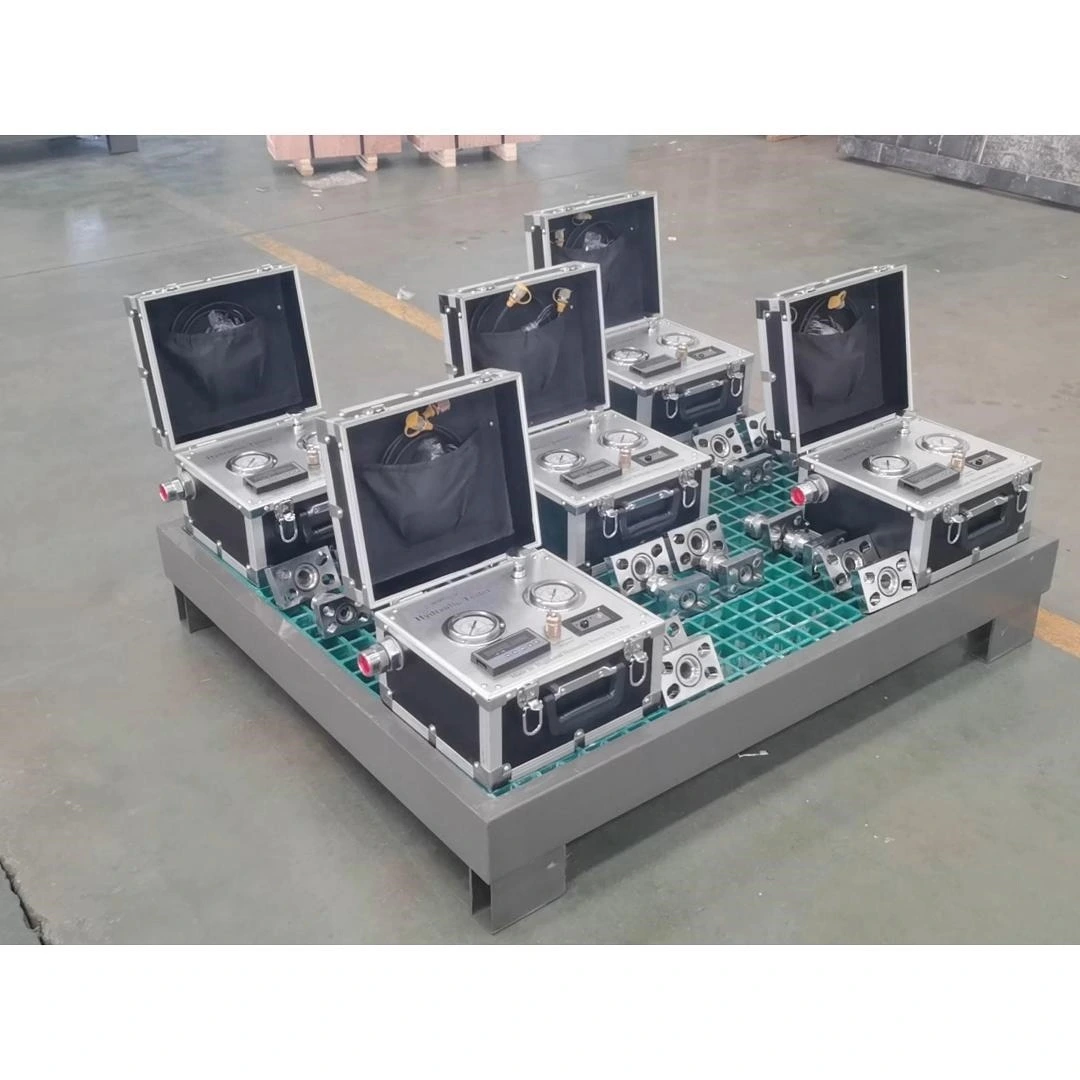

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

portable hydraulic tester

Key Features

Portable design, lightweight for easy field transportation and use
High-precision measurement with error rate less than ±0.5%
Wide measurement range to accommodate different specifications of hydraulic pumps
High-pressure resistant design, withstands up to 40MPa working pressure
Compatible with various hydraulic oil media
Battery powered with up to 8 hours continuous operation

Common Faults and Solutions

Inaccurate Pressure Measurement

Cause: It may be due to a damaged pressure sensor, loose connection lines, or impurities in the hydraulic oil affecting pressure transmission.

Solution: First, check if the connection of the pressure sensor is firm. If it is loose, tighten it. Use a multimeter to check if the output signal of the pressure sensor is normal. If not, replace the pressure sensor. Check the cleanliness of the hydraulic oil. If necessary, replace the hydraulic oil and clean the filter.

Portable Hydraulic Testers MYHT-1-7 HIGHLAND Hydraulic

Portable Hydraulic Tester for Rapid Detection of Pressure, Flow, and Temperature 20

Applications

Maintenance of construction machinery (excavators, cranes, loaders, etc.) hydraulic systems.
Troubleshooting hydraulic equipment on industrial production lines.
Performance testing of components like valves, cylinders, and hydraulic pumps.
Setting and calibrating relief valves and pressure switches.
Hydraulic system leakage checks.

Choose us for professionalism, reliability, and efficiency!

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydraulic pump 2. Hydraulic motor 3. Hydraulic tester 4. Hydraulic test bench

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
