Portable Hydraulic Tester for Construction Machinery, a Low-Cost and High-Efficiency Testing Solution

The Portable Hydraulic Tester for Construction Machinery is a cost-effective and high-efficiency solution specifically developed for the detection of hydraulic systems in construction machinery. It is suitable for scenarios such as daily maintenance, fault diagnosis, and performance debugging of various construction machinery, including excavators, loaders, cranes, and road rollers.
This tester adopts a lightweight design, enabling a single person to easily carry it to the construction site. There is no need to disassemble the core components of the equipment; it only requires connection to the hydraulic system interface through quick connectors, and the installation and commissioning can be completed within 5 minutes. During the detection process, the equipment can collect key parameters of the hydraulic system in real time, such as pressure, flow rate, temperature, and rotational speed. With a sampling frequency of up to 1000Hz and a data accuracy error of ≤±1%, it ensures the detection results are accurate and reliable.
In terms of cost control, compared with the purchase cost of traditional testing equipment which amounts to tens of thousands of yuan, this tester significantly reduces the initial investment. Meanwhile, it saves the additional cost of on-site services provided by professional technicians. In terms of efficiency, it can quickly locate faults such as wear, leakage, and insufficient pressure in components like hydraulic pumps, hydraulic valves, and oil cylinders. This avoids long-term equipment downtime, helping construction enterprises reduce maintenance costs and improve equipment attendance. The operation is simple and easy to understand, truly realizing the core value of "low-cost investment, high-efficiency detection, and easy-to-operate".

MOQ:

1 set

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

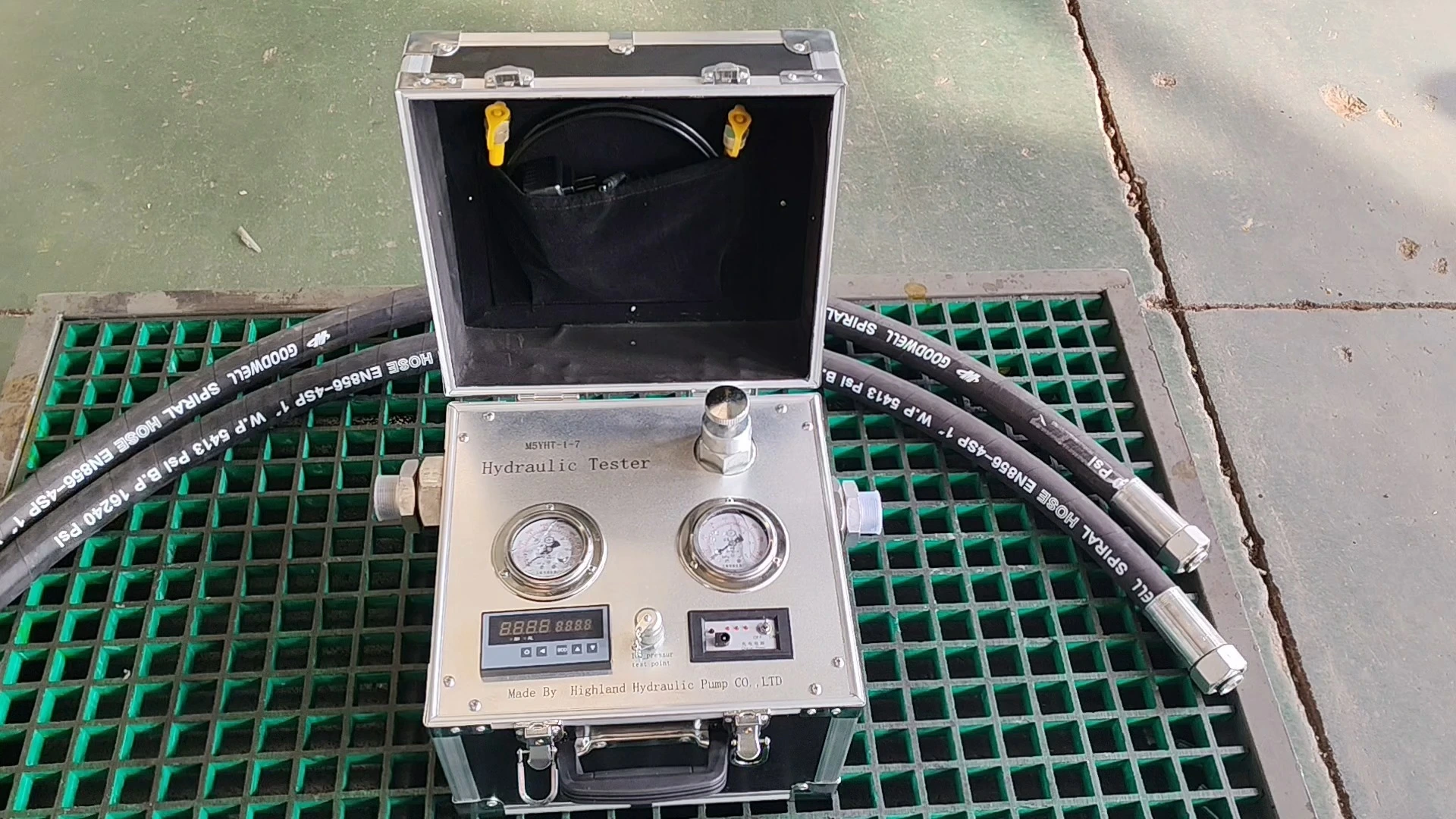

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Measures flow, pressure, and temperature with accuracy.

Integrated Functions

Combines hydraulic pump flow tester and hydraulic detector, tests pressure, flow and other parameters, suitable for all operation and maintenance scenarios.

Portable Hydraulic Tester for Construction Machinery, a Low-Cost and High-Efficiency Testing Solution 7

High Cost-Effectiveness

Reduces purchase cost, saves on-site service fees, quickly troubleshoots to reduce downtime, lowering comprehensive operation and maintenance costs.

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Portable & Efficient

Lightweight design for easy carrying, no need to disassemble core components, quick connection and commissioning in 5 minutes, breaking the limitations of traditional equipment.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

High-Precision Testing

1000Hz sampling rate, ≤±1% error, captures hydraulic pump wear and other issues in real time, ensuring accurate operation and maintenance.

INSTRUMENT MAINTENANCE

road roller-2.jpg

Harvester 2

Underground loader 12

Loading valve

If the loading could not work, please check whether there is some- thing wrong with valve coil and seal.

Battery

The hydraulic tester is droved by 12v lithium battery, which can work more than 30h after being charged about 4-8hour, The battery must be charged by equipped charger.

Flow meter

When it could not show data, it is possible that turbo rotor is stopped. Please open the turbine flow sensor and clean it. lf it still could not work, you should connect with manufacturer.

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

Product Overview

This portable hydraulic tester is designed for fault diagnosis and performance testing of hydraulic systems. Its lightweight and portable design makes it an ideal tool for on-site repairs and routine maintenance. Whether for industrial equipment, construction machinery, or vehicle hydraulic systems, this tester can quickly and accurately measure key parameters such as pressure and flow, helping users pinpoint faults and ensure efficient system operation.

Portable Hydraulic Testers MYHT-1-2 HIGHLAND

ICommon Faults and Solutions

No Output Signal

Cause: Power supply failure, sensor failure, or broken circuit.

Solution: Check if the power supply is normal, including the battery level or the connection of the external power supply. Use a multimeter to check the output signal of the sensor. If the sensor has no output, replace it. Check if there is a broken circuit in the line. If so, repair or replace the line.

Leakage Problem

Cause: Worn seals, loose joints, or damaged pipelines.

Solution: Check the leakage location. If the seal is worn, replace it with a suitable one. If the joint is loose, tighten it. If the pipeline is damaged, replace the damaged pipeline.

Key Features

Portable design, lightweight for easy field transportation and use
High-precision measurement with error rate less than ±0.5%
Wide measurement range to accommodate different specifications of hydraulic pumps
Large LCD screen for clear and intuitive data display
Built-in data storage function to record multiple sets of test data
High-pressure resistant design, withstands up to 40MPa working pressure
Compatible with various hydraulic oil media
Battery powered with up to 8 hours continuous operation

Portable Hydraulic Testers MYHT-1-4 HIGHLAND Hydraulic

MYHT-1-4 Hydraulic Flow Meter Test Kits HIGHLAND Hydraulic

InstRUMENT MAINTENANCE

◆ Loading valve: Under normal connection conditions, if the loading valve cannot be loaded, check whether there are pollutants inside the valve

◆ Battery: The instrument is equipped with a 12V lithium battery, which can work for up to 30 hours when connected and has a charging time of 4-8 hours per charge

◆ Flow meter: The flow meter cannot display data normally, possibly due to contamination. Please contact the manufacturer for resolution

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydraulic pump 2. Hydraulic motor 3. Hydraulic tester 4. Hydraulic test bench

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
