Product details of the hydrostatic pump manufacturers
Product Specification
Hydraulic Tester Mode: MYHT-1-5
Product Name: Excavator Hydraulic Flow Testers
Dimensions: 295*265*210mm
Quick Detail
The production of Highland Hydraulic hydrostatic pump manufacturers adopts modern innovation concepts in consistence with industry trends. Our clients greatly trust the product for its unmatched quality and excellent performance. Many customers highly praise the product and think it has a huge application potential.
Product Description
Adhering to the concept of 'details and quality make achievement', we will work harder on the following details of hydrostatic pump manufacturers to make our products more advantageous.
HIGHLAND MYHT SERIES
Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system
Products Advantages
MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.
INSTRUMENT MAINTENANCE
Product Specifications
|
Model |
Max flow(lpm) |
Max presure(bar) |
Dimension(mm) |
Weight(kg) |
|
MYHT—1—2 |
200 |
420 |
295×265×210 |
6.1 |
|
MYHT—1—4 |
400 |
420 |
295×265×210 |
8.8 |
|
MYHT—1—5 |
500 |
420 |
295×265×210 |
10.2 |
|
MYHT—1—7 |
800 |
420 |
310×285×261 |
14 |

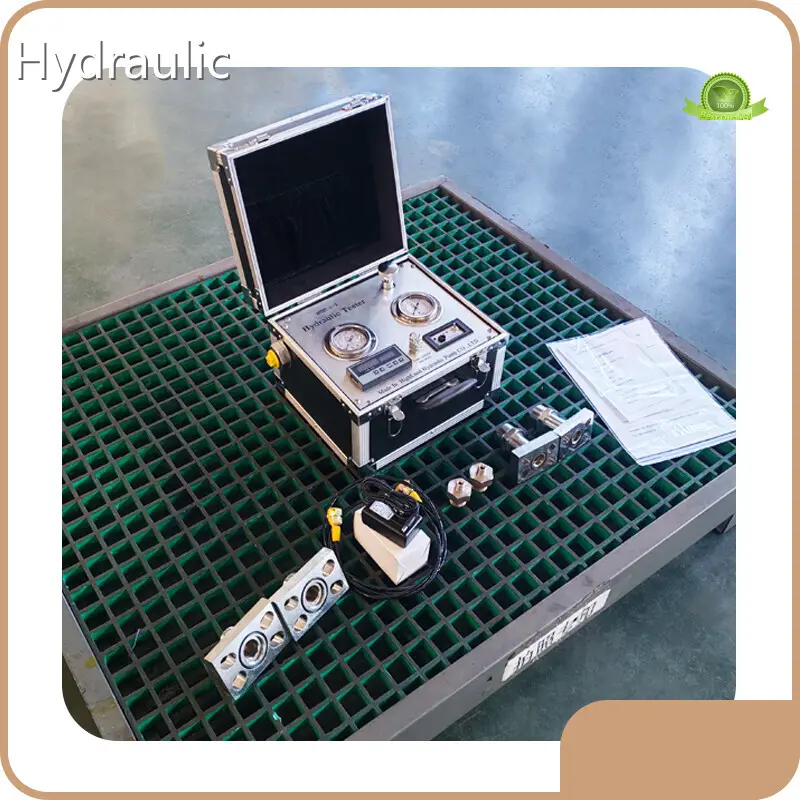

MYHT series portable hydraulic tester
portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!
portable hydraulic tester
◆ MYHT series hydraulic tester is a specialized instrument used to detect faults in hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic valves, and hydraulic systems.
◆ Easy to use, operators do not need to undergo specialized training.
◆ MYHT hydraulic tester is an ideal tool for preventing hydraulic system failures.
◆ Under normal operation of the equipment, technicians can safely and easily complete online detection tasks.
InstRUMENT FEATURES
pRECAUTIONS FOR USE
After connecting the instrument, be sure to keep the loading valve open before turning on the device, otherwise it may cause danger!!!
◆ When the tester is working, ensure that the loading valve opens normally
◆ Test completed, turn off the power switch
◆ The instrument test can only be accurate when the oil temperature is above 30 ℃
◆ Before testing, open the loading valve
InstRUMENT MAINTENANCE
◆ Loading valve: Under normal connection conditions, if the loading valve cannot be loaded, check whether there are pollutants inside the valve
◆ Battery: The instrument is equipped with a 12V lithium battery, which can work for up to 30 hours when connected and has a charging time of 4-8 hours per charge
◆ Flow meter: The flow meter cannot display data normally, possibly due to contamination. Please contact the manufacturer for resolution
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
