Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Intelligent Hydraulic Testing Equipment - Bulk Supply 1

Intelligent Hydraulic Testing Equipment - Bulk Supply

Portable hydraulic testers are precise, safe, and fast devices widely used for the inspection and maintenance of hydraulic systems.
In the hydraulic loop system,the acquisition of breakpoints data and the measur ement of f bw rate,pressure and temperature of the system and components ar e able to be realized simultaneously. Through the data acquired MYHT Tester evaluates the performance of the system and components and judges the faults. It is widely used in testing and diagnosing for Hydraulic Pump,Hydraulic Mot or and Hydraulic valve.

MOQ:

1 set

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

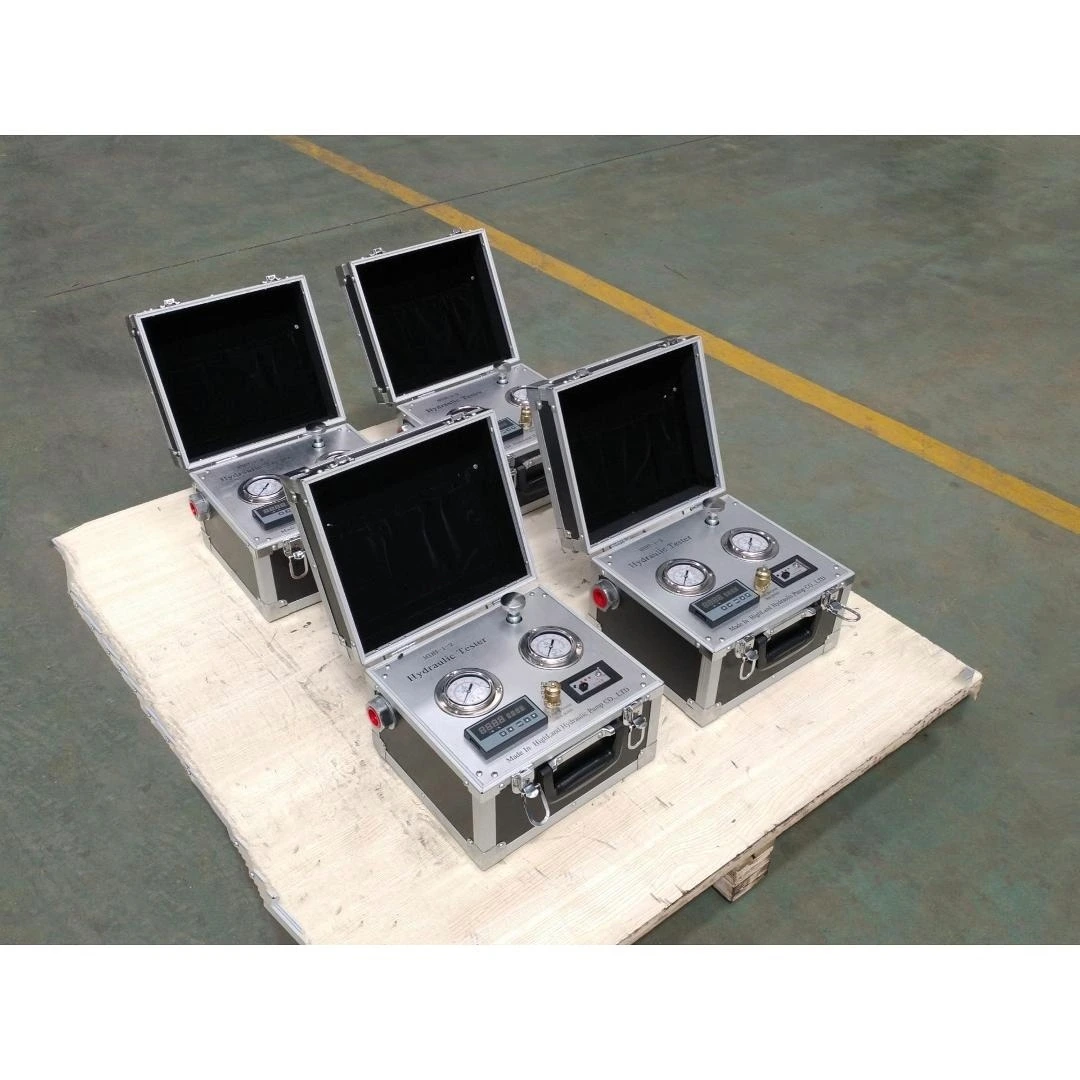

Portable Hydraulic Tester

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Intelligent Hydraulic Testing Equipment - Bulk Supply 6

High Accuracy

Premium sensors with <0.5% error margin.

Intelligent Hydraulic Testing Equipment - Bulk Supply 7

Instant Results

One-touch operation, 3-second readout, Bluetooth data sync.

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Ultra-Portable

Lightweight, one-hand operation, ideal for fieldwork.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Safety Guaranteed

Shockproof, oil-resistant, and ISO/CE certified.

Applications

Construction machinery diagnostics

Hydraulic system maintenance and troubleshooting

Marine/aviation hydraulic diagnostics

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

Product Overview

The Smart Hydraulic Tester is a cutting-edge tool designed for industrial, automotive, and mechanical maintenance. With advanced sensor technology, it delivers rapid and accurate measurements of hydraulic pressure, flow rate, and other critical parameters, ensuring optimal system performance. Its compact size makes it perfect for on-site inspections.

MYHT-1-5 Portable Hydraulic Testers HIGHLAND Hydraulic

MYHT-1-7 Portable Hydraulic Testers HIGHLAND Hydraulic

Components of instrumentation

MYHT Portable Hydraulic Tester consists of the testing system and data syste m.The testing system includes Simulation Loading Valve,Pressure Meter,Flow Meter and Temperature Meter.Different physical parameters of the hydraulic sy

stem are converted into electric parameters and sent to the data processing sys tem.

The data processing system consists of Single chip,Display,Touch Switch,Rech argeable Lithium Battery,Power Switch etc.After The electrical signal is process ed sent from the testing system,the results will be displayed on the display.

pRECAUTIONS FOR USE

After connecting the instrument, be sure to keep the loading valve open before turning on the device, otherwise it may cause danger!!!

◆ When the tester is working, ensure that the loading valve opens normally

◆ Test completed, turn off the power switch

◆ The instrument test can only be accurate when the oil temperature is above 30 ℃

◆ Before testing, open the loading valve

HIGHLAND Hydraulic MYHT-1-7 Portable Hydraulic Testers

Portable Hydraulic Testers MYHT-1-5 HIGHLAND

Accessory

1、1.5m rubber hose:2 pieces

2、1.5m testing pressure line:1 piece

3、Tie-in:6 pieces

4、Multipurpose flange:4 pieces

5、Charger:1 piece

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydraulic pump 2. Hydraulic motor 3. Hydraulic tester 4. Hydraulic test bench

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
