High downtime cost for farm machinery? Hydraulic testers pinpoint issues in seconds.

The HIGHLAND Agricultural Machinery Hydraulic Tester is equipped with an advanced data display function. Through a clear and intuitive display screen, it can present key data of the hydraulic system in real - time, such as pressure, flow rate, oil temperature, etc. Operators can quickly judge whether there is a fault in the hydraulic system and the location and cause of the fault based on these accurate data, which greatly improves the efficiency of fault diagnosis.
One of its significant advantages is mobility. The HIGHLAND Agricultural Machinery Hydraulic Tester is designed to be lightweight and portable, with a high - performance built - in battery, getting rid of the constraints of cables and power sockets. Whether on vast large farms or in remote fields with complex terrains, workers can easily carry it to the work site and detect and diagnose the hydraulic systems of agricultural machinery at any time and place, providing a solid guarantee for the smooth progress of agricultural production. Whether for daily maintenance or emergency troubleshooting, the HIGHLAND Agricultural Machinery Hydraulic Tester is a powerful assistant for agricultural practitioners, helping to improve the mechanization level and operation efficiency of agricultural production.

MOQ:

1 set

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Measures flow, pressure, and temperature with accuracy.

High Accuracy

High-sensitivity sensors provide precise measurement of hydraulic pressure, flow rate, and other critical parameters, with an error margin as low as ±0.5%.

High downtime cost for farm machinery? Hydraulic testers pinpoint issues in seconds. 7

Low price

We promise the lowest price for new products of the same variety in the world

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Compact & Portable

Lightweight and rugged design with a protective casing, making it easy to carry for mobile testing in various environments.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Stable & Durable

High-pressure and shock-resistant construction ensures reliable performance even in harsh conditions, extending service life.

INSTRUMENT MAINTENANCE

Fault Diagnosis

Quickly locate faults in hydraulic systems such as leaks, blockages, and insufficient pressure.

Performance Testing

Comprehensive evaluation of hydraulic system performance to ensure optimal operation.

Maintenance

Regular inspection of hydraulic systems to prevent potential faults and extend equipment lifespan.

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

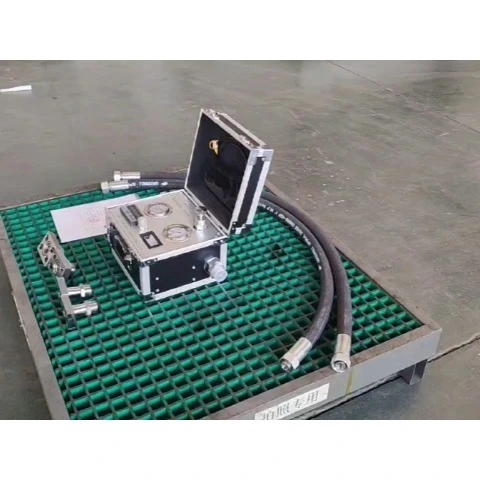

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

portable hydraulic tester

◆ MYHT series hydraulic tester is a specialized instrument used to detect faults in hydraulic pumps, hydraulic motors, hydraulic valves, hydraulic valves, and hydraulic systems.

◆ Easy to use, operators do not need to undergo specialized training.

◆ MYHT hydraulic tester is an ideal tool for preventing hydraulic system failures.

◆ Under normal operation of the equipment, technicians can safely and easily complete online detection tasks.

HIGHLAND Portable Hydraulic Teste.jpg (2)

Key Features

Complete Accessories: Includes various adapters and tools, compatible with different combine harvester models.
Portable & Mobile: Lightweight design for easy transportation and on-site use, enhancing work efficiency.
Multi-function Testing: Measures system pressure, flow rate, temperature and other key parameters
Rapid diagnosis of hydraulic system failures with precise fault location
Efficient Diagnosis: Quickly locate hydraulic system faults, reducing downtime.

Maintenance

Regular Calibration: Have the unit calibrated by an authorized agency every 6-12 months, or as recommended by the manufacturer, depending on usage frequency, to ensure measurement accuracy.

Proper Storage: Store the device in a dry, clean, and temperature-appropriate case after use. Avoid crushing or dropping.

Battery Management: For digital testers, remove the batteries if the unit will not be used for an extended period to prevent leakage and corrosion.

Common Risks &Countermeasures

Risk: Needle flutter or unstable reading.

Countermeasure: Check for air in the system. Cycle the equipment a few times and retest, or check for loose connections.

Risk: Abnormal reading or no display.

Countermeasure: Check battery level (digital models); confirm the sensor is not overloaded/damaged; perform a simple zero calibration as per the manual.

Risk: Leakage at the connection point.

Countermeasure: Stop the equipment immediately, relieve pressure, and inspect/replace damaged seals.

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic Test Bench 4. Portable Hydraulic Tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
