Harvester Portable Hydraulic Tester Wholesale
This Portable Hydraulic Tester for Harvesters is a professional and efficient diagnostic and performance detection device specifically designed for the maintenance of hydraulic systems in agricultural harvesting machinery. Integrating the core functions of a Portable Hydraulic Tester and a Flow and Pressure Test Kit, it accurately measures key hydraulic parameters such as flow, pressure, and temperature in real-time. Data is clearly displayed on an intuitive digital screen, assisting technicians in rapidly diagnosing faults like internal leaks, valve failures, and pump performance degradation.
The kit comes with a complete set of accessories, including various quick couplers, adapters, high-pressure hoses, and protective cases, ensuring compatibility with the hydraulic circuits of different harvesters (e.g., combine harvesters, corn harvesters). Its portable design combines robustness with light weight, making it ideal for quick diagnostics and routine maintenance in diverse environments such as fields and workshops. Supported by the precise data from this tester, users can formulate effective hydraulic system fault solutions, significantly reducing downtime and repair costs, thereby ensuring the efficiency and continuity of harvesting operations.
HIGHLAND MYHT SERIES
Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system
Products Advantages
Enables operators and technicians to rapidly diagnose hydraulic faults, perform preventive maintenance, and verify repair outcomes. This minimizes downtime, ensures smooth and efficient harvesting operations, and serves as a powerful tool for enhancing machine availability and overall productivity.
INSTRUMENT MAINTENANCE
Product Specifications
|
Model |
Max flow(lpm) |
Max presure(bar) |
Dimension(mm) |
Weight(kg) |
|
MYHT—1—2 |
200 |
420 |
295×265×210 |
6.1 |
|
MYHT—1—4 |
400 |
420 |
295×265×210 |
8.8 |
|
MYHT—1—5 |
500 |
420 |
295×265×210 |
10.2 |
|
MYHT—1—7 |
800 |
420 |
310×285×261 |
14 |

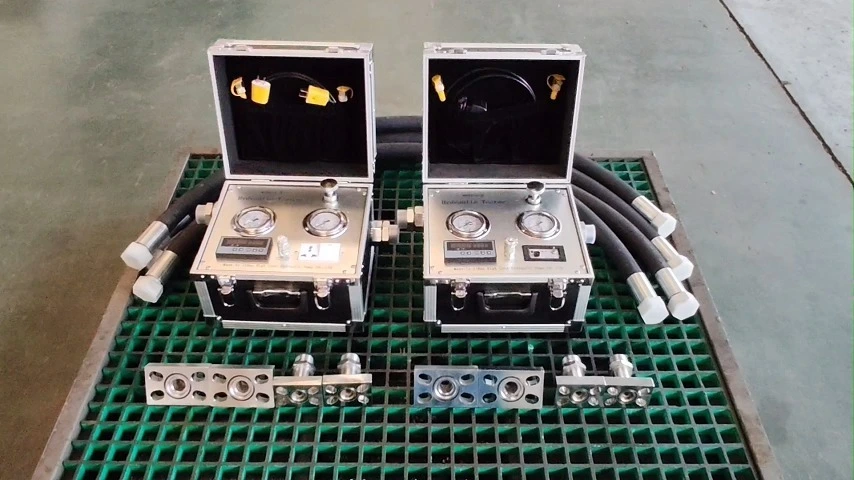

MYHT series portable hydraulic tester
Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!
Key Features
- Ultimate Portability: Compact and lightweight design allows for on-the-go testing in the field or workshop, significantly improving inspection efficiency.
- Precision Measurement: Equipped with high-accuracy sensors and an intelligent processing unit, it provides real-time and accurate monitoring of critical hydraulic parameters such as pressure, flow, and temperature.
- Extensive Compatibility: Comes with multiple adapter interfaces, suitable for testing hydraulic systems on various combine harvesters, forage harvesters, and other mainstream agricultural machinery.
- User-Friendly Operation: Features a large LCD screen with an intuitive interface. Supports data logging, playback, and analysis for quick identification of system anomalies.
- Rugged Construction: High protection rating enclosure withstands harsh field conditions including moisture, dust, and vibrations.
Fault Diagnosis & Troubleshooting
- Abnormal System Pressure: Tests main pump output pressure, manifold relief pressure, and actuator (cylinder, motor) working pressure to quickly identify internal leakage, blockage, or incorrect settings in pumps, valves, or cylinders.
- Insufficient Flow: Measures hydraulic flow rate to diagnose slow or weak movements caused by pump wear, low motor speed, or valve spool sticking.
- Temperature Monitoring: Monitors hydraulic oil temperature to prevent seal degradation, fluid breakdown, and loss of system efficiency due to overheating.
- Component Performance Testing: Isolates and tests the performance of individual components like pumps, motors, and control valves to determine if repair or replacement is needed.
Preventive Maintenance
Routine Service Checks: Conducts comprehensive hydraulic system checks during pre-season, post-season, or scheduled maintenance. Records baseline data (pressure, flow) to establish equipment health records.
Post-Repair Verification: After replacing hydraulic components or performing system repairs, uses the tester to verify if system performance has been restored to specifications, ensuring repair quality.
New Machine Commissioning & Adjustment: Assists in setting up and adjusting newly purchased or overhauled harvesters, ensuring pressure and speed parameters for all hydraulic functions (header lift, reel speed, unloading auger rotation, etc.) meet factory specifications.
InstRUMENT MAINTENANCE
◆ Loading valve: Under normal connection conditions, if the loading valve cannot be loaded, check whether there are pollutants inside the valve
◆ Battery: The instrument is equipped with a 12V lithium battery, which can work for up to 30 hours when connected and has a charging time of 4-8 hours per charge
◆ Flow meter: The flow meter cannot display data normally, possibly due to contamination. Please contact the manufacturer for resolution

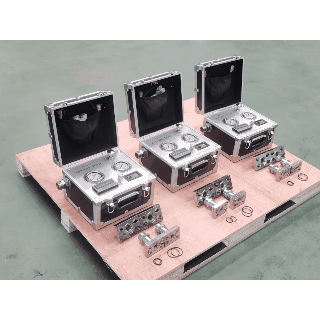

Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
