Hailand Hydraulic Pump Flow Tester

The Hailande Hydraulic Pump Flow Tester is a portable device specifically designed for flow testing of hydraulic pumps. This tester features high-precision data display capabilities, allowing real-time monitoring and recording of hydraulic pump flow data. Its portability and mobility enable users to easily conduct tests at various locations, making it suitable for a wide range of field operations. Whether for industrial maintenance or equipment inspection, the Hailande Hydraulic Pump Flow Tester provides reliable data support to ensure the efficient operation of hydraulic systems.

MOQ:

1 set

Price:

USD 1400-3300/set

Packaging Details:

Plywood case

Delivery Time:

15 work days

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Precision

±1％

Max Pressure

420bar

Temperature

150℃

Brand

HIGHLAND

Working Medium

Hydraulic Oil

Warranty

1 Year

Mode

MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7

HIGHLAND MYHT SERIES

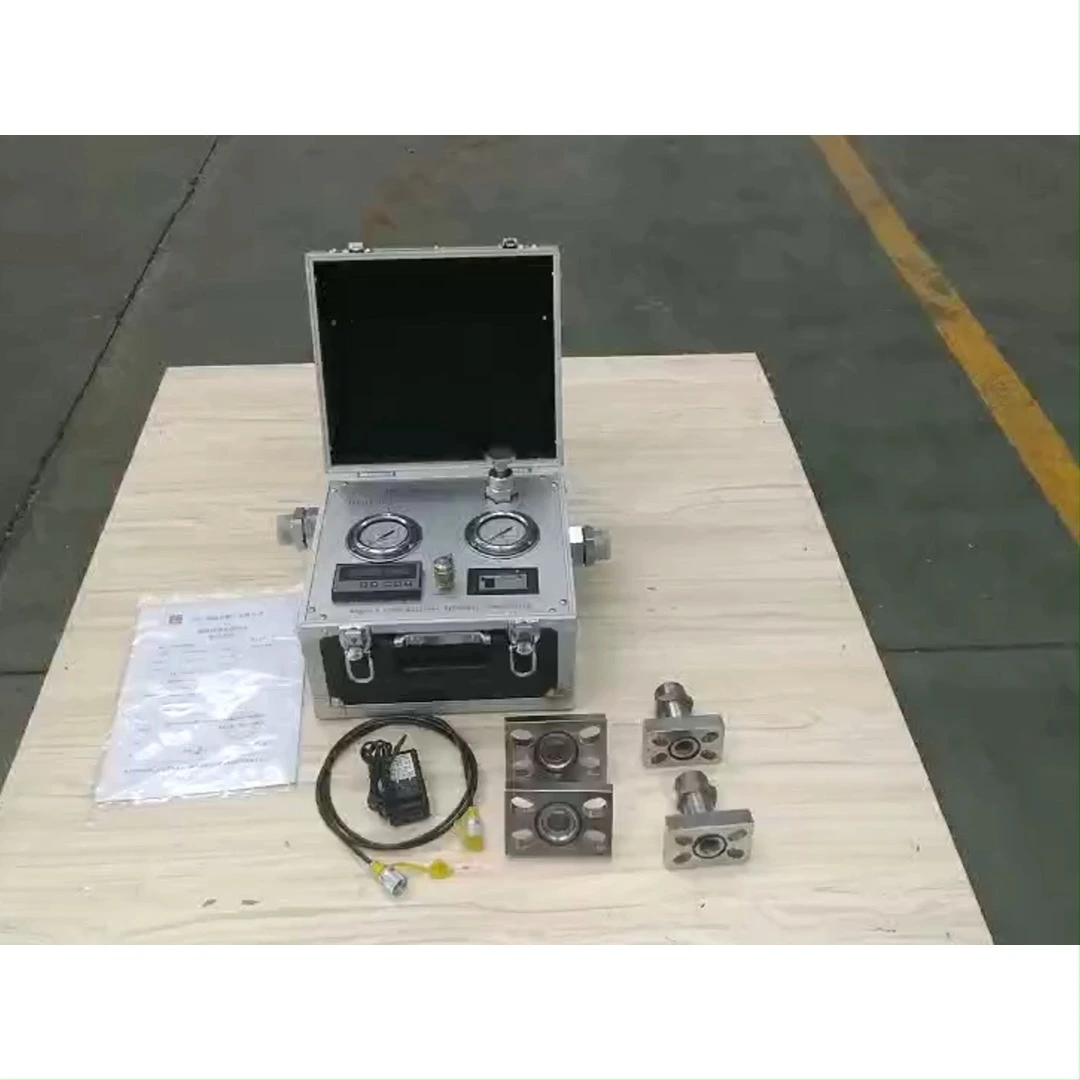

Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system

Products Advantages

MYHT Digital Portable Hydraulic Tester offers accurate and efficient testing of hydraulic systems. Its user-friendly interface and compact design make it easy to use on the go. Get fast, precise results with this advanced hydraulic tester.

Measures flow, pressure, and temperature with accuracy.

Accurate Data

Provides high-precision hydraulic system data.

High cost-performance ratio

We promise the lowest price for new products of the same variety in the world

Allows bi-directional hydraulic oil flow with single-direction loading, protecting both operators and equipment.

Portable Design

Lightweight and easy to carry, ideal for on-site use.

Enables quick online testing of hydraulic equipment, pumps, motors, valves, and cylinders with simple connections.

Complete Accessories

Includes all necessary accessories to ensure comprehensive and convenient testing.

INSTRUMENT MAINTENANCE

液压测试仪1~1

液压测试仪2~1

液压测试仪3

Loading valve

If the loading could not work, please check whether there is some- thing wrong with valve coil and seal.

Battery

The hydraulic tester is droved by 12v lithium battery, which can work more than 30h after being charged about 4-8hour, The battery must be charged by equipped charger.

Flow meter

When it could not show data, it is possible that turbo rotor is stopped. Please open the turbine flow sensor and clean it. lf it still could not work, you should connect with manufacturer.

Product Specifications

Model	Max flow(lpm)	Max presure(bar)	Dimension(mm)	Weight(kg)
MYHT—1—2	200	420	295×265×210	6.1
MYHT—1—4	400	420	295×265×210	8.8
MYHT—1—5	500	420	295×265×210	10.2
MYHT—1—7	800	420	310×285×261	14

MYHT series portable hydraulic tester

Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!

Flow Meter for Pumps

The Hydraulic Pump Flow Tester is a professional high-precision testing device designed for measuring the flow performance of hydraulic pumps. Utilizing advanced sensor technology and digital processing systems, this instrument can accurately measure key parameters such as flow rate and pressure, making it an ideal tool for hydraulic system maintenance, fault diagnosis, and quality control.

Key Features

Compact Design: The tester adopts a compact structure design, with a significantly smaller volume than traditional hydraulic testing equipment, making it easy to carry. Whether in a narrow working space or a scenario that requires frequent movement, it can be used flexibly without being restricted by space.
Lightweight Materials: Lightweight but sturdy materials are selected for the body, greatly reducing the overall weight. It is convenient for you to hold and operate or carry to different work locations. Even for long - term use, it will not cause you too much burden. At the same time, it is equipped with a comfortable carrying handle, further enhancing mobility.

pRECAUTIONS FOR USE

After connecting the instrument, be sure to keep the loading valve open before turning on the device, otherwise it may cause danger!!!

◆ When the tester is working, ensure that the loading valve opens normally

◆ Test completed, turn off the power switch

◆ The instrument test can only be accurate when the oil temperature is above 30 ℃

◆ Before testing, open the loading valve

Application Fields

Industrial Manufacturing: For detecting pressure, flow, and temperature in hydraulic systems to ensure proper equipment operation.
Construction Engineering: Monitoring hydraulic systems in construction machinery to improve efficiency.
Agricultural Machinery: Ensuring hydraulic systems in tractors and other farming equipment function correctly.
suspension systems.Automotive Repair: Diagnosing faults in automotive hydraulic systems, such as brakes and

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic Test Bench 4. Portable Hydraulic Tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 15 working days.

What is your terms of payment?

Payment terms: 100% in advance.

What is the standard of package?

Export standard package or special package according to customer requirement.

How do you ship hydraulic tester and how long does it take to arrive?

By air or by sea shiping. Ship by air takes around 5 days to arrive.
