Delivery Time:

30-60 work days

Payment Terms:

T/T, Western Union

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Hydraulic Pump Mode

HPV110

Pressure

42mpa

Material

Cast Iron

Product details of the variable swash plate hydraulic pump

Product Specification

Hydraulic Pump Mode: HPV110

Material: Cast Iron

Pressure: 42mpa

Product Information

The materials used in Highland Hydraulic variable swash plate hydraulic pump is selected by our inspection team. As we focus on the improvement of the quality, this product has been manufactured with high quality and stable performance. The variable swash plate hydraulic pump are all qualified in Highland Hydraulic.

HPV110-MA-R-23 Hydraulic Piston Pump For Combine Harvester

HPV110-MA-R-23 Hydraulic Piston Pump is a durable and high-efficiency solution for combine harvesters,

delivering reliable hydraulic power to enhance harvesting performance.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV110-MA-R-23 Hydraulic Piston Pump is engineered to optimize hydraulic systems of combine harvesters. It delivers stable power, and efficient operation in demanding agricultural environments. Its high-pressure capability and durable construction provide long-lasting performance, reducing downtime and maintenance needs. This model of hydraulic pump enhances the productivity of harvesting equipment, ensuring smooth operation during peak harvesting seasons.

Product Features

Harvester Hydraulic Pump is an advanced hydraulic solution for combine harvesters, designed to provide efficient power transmission and verstile control performance.
Its high-pressure capacity ensures consistent operation, offers long service life and reduced maintenance costs, even in the toughest field conditions.
By delivering stable hydraulic flow, HPV110 hydraulic pump enhances machine productivity, ensuring smooth and reliable harvesting operations.

Product INTRODUCTION

Hydraulic Piston Pump is a high-performance hydraulic component designed specifically for combine harvesters. With its efficient design and high-pressure capacity, it ensures smooth and reliable operation. Built for durability, it withstands extreme agricultural conditions, offering long service life and reduced maintenance. HPV110-MA-R-23 hydrostatic pump is ideal for enhancing the efficiency and productivity of harvesting machinery, ensuring continuous operation in the field.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

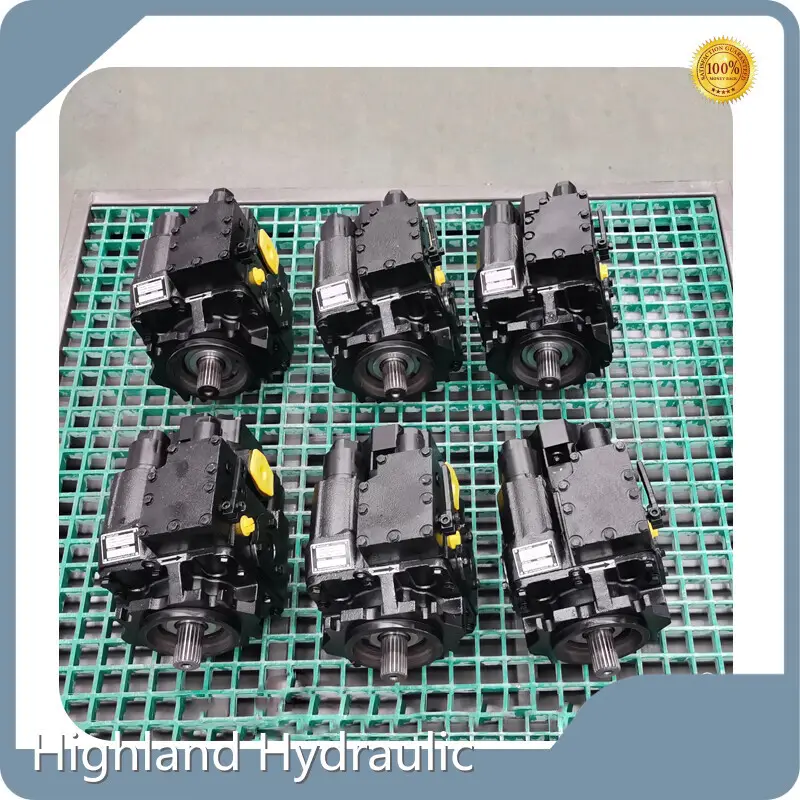

HPV110 Hydraulic Pumps

Combine Harvester Piston Pumps

HPV110 Hydraulic Piston Pumps

HPV110-MA-R-23 Hydraulic Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
