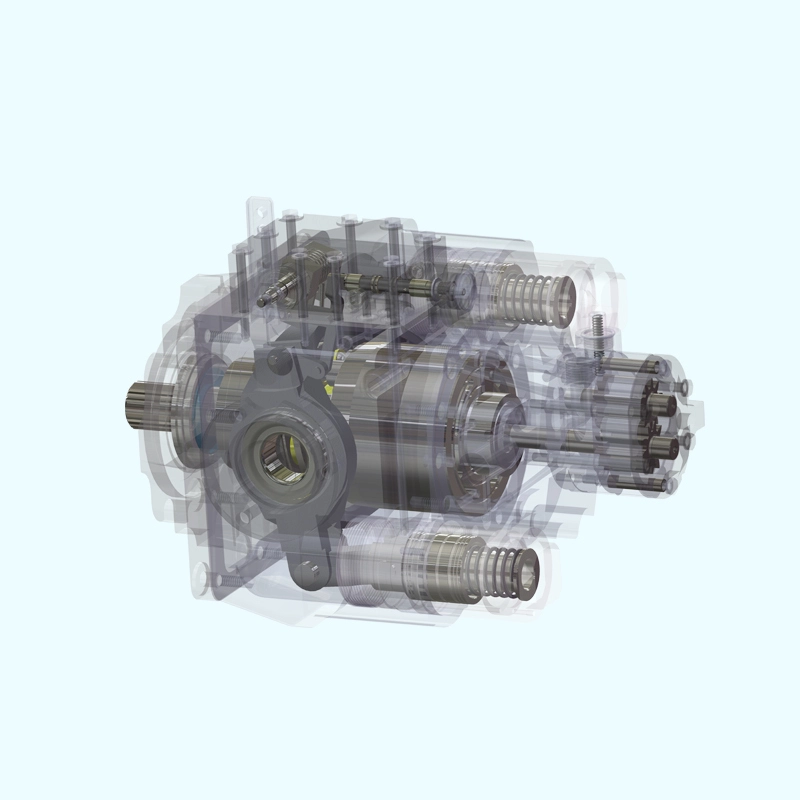

High Quality Hydraulic Pump PV23 For Mixer Truck 1

High Quality Hydraulic Pump PV23 For Mixer Truck 2

High Quality Hydraulic Pump PV23 For Mixer Truck 3

High Quality Hydraulic Pump PV23 For Mixer Truck 4

High Quality Hydraulic Pump PV23 For Mixer Truck 5

High Quality Hydraulic Pump PV23 For Mixer Truck 6

High Quality Hydraulic Pump PV23 For Mixer Truck 7

High Quality Hydraulic Pump PV23 For Mixer Truck 8

High Quality Hydraulic Pump PV23 For Mixer Truck

* Swash plate variable pumps adjust flow and direction via angle changes in closed loop systems.

* Highland Hydraulic Pump specializes in axial piston variable pumps with easy maneuverability.

* Mechanical servo control stabilizes the swash plate angle, stopping pump flow when the handle is released.

* German skeleton oil seals reduce leakage.

* Servo control valves integrate pressure control and remote systems.

* Axial piston pumps are easy to maintain with interchangeable parts.

* Highland pumps use U.S. SUNDSTRAND PV20 pumps and MF20 motor parts, rated up to 42mpa.

MOQ:

1 sets

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Pressure

35mpa

Brand

HIGHLAND

Speed

2700r/min

Operation Mode

Closed Circuit Hydraulic System

Displacement

90ml/r

Working Medium

Hydraulic Oil

Warranty

1 Year

Material

Cast Iron

Products Advantages

Best Quality

We are a professional manufacturer which we have worked in hydraulic industry with over the 20 years. Quality of craftsmanship Quality enterprise, trustworthy.

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

QC Team

We have our QC team here with high end technician and solid development strength and strict quality control system to ensure high quality standard.

Lightning Supply

Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand. Commitment to warranty hydraulic pump and hydraulic motor within one year.

Product Application

Enhance your hydraulic system with the PV series closed axial piston pump, designed for high pressure applications,

offering superior reliability and performance.

Cotton picker

Road mixer

rice harvester

Plowing machine

HIGHLAND HYDRAULIC

hYDRAULIC PUMP

PROFESSIONAL MANUFACTURER

1. Plant size more 10000 square meters.

2. More than 20 years' experience in hydraulic industry.

3. Customized according to customers' request.

4. Factory direct sale, high quality, competitive price and fast delivery.

HIGHLAND HYDRAULIC PUMP

Closed circuit hydraulic pump boasts a compact design, making it ideal for space-constrained applications.

Its advanced axial piston technology ensures efficient and reliable performance.

High Quality Hydraulic Pump PV23 For Mixer Truck 18

High Quality Hydraulic Pump PV23 For Mixer Truck 19

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

PV SERIES HYDRAULIC PUMP

Product DESCRIPTION

1. Axial Variable Displacement Piston Pump.

2. Have Swash Plate Structure.

3. Be Suitable for Hydrostatic Transmissions with Closed-Loop Circuit.

Hydraulic pumps has shaft oil seals performance, even at the lowest temperature and high case pressure.

When pumps operated mechanically, servo displacement can control and keep the angle of swash plate and pump displacement.

Hydraulic piston pumps can easy maintain and can be disassembled and assembled by standard tools.

Product Details

Connect Additional Pumps

Hydraulic pumps can be connected with other additional pumps to improve the flow and working pressure of hydraulic system.

High Quality Main Shaft Oil Seal

Using German-made skeleton-type high-pressure oil seals reduce the probability of pump oil leakage to almost zero.

Multiple Control Modes

We have manual servo control, electric proportional servo control, hydraulic servo control, control valve can be replaced modularly.

Standard export package

Product Package

Packing:

This hydraulic pump is packed with inner plastic bag for anti-rust treatment and outer plywood case, meantime fix cross beam in case shaking on the way. One set of hydraulic pump in one plywood case. In order customer receive goods, easily carry and store. Batch of goods packed into pallets.

Delivery: shipping way: by air / by sea according to customers' choice.

FAQ

Tell us about your requirements and we will figure out a solution that will meet your request.

How do I purchase your goods?

Payment method: T/T payment 40% as deposit. 60% paid before delivery.

Min. order:

- No MOQ for standard or stocking production. - Order a HQ container, price will be more favorable.

What can kind of packing of your product?

- Standard export plywood case with plastic bag.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Do you offer guarantee for the products?

Each motor or pump should be tested before shipping, test report can be sent if requested. Warranty 12 months after shipment for complete assembly.

How long is the lead time?

Delivery time: If there are stocks available in the warehouse, we may delivery it in several days. Or 20-30 days after receiving the deposit. it depend on the quantity ordered.
