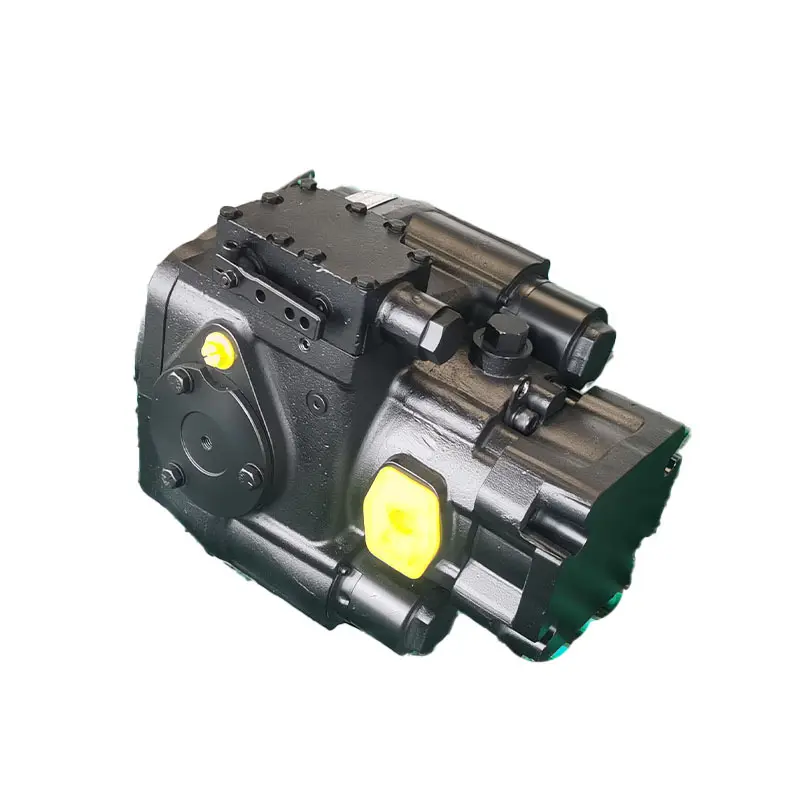

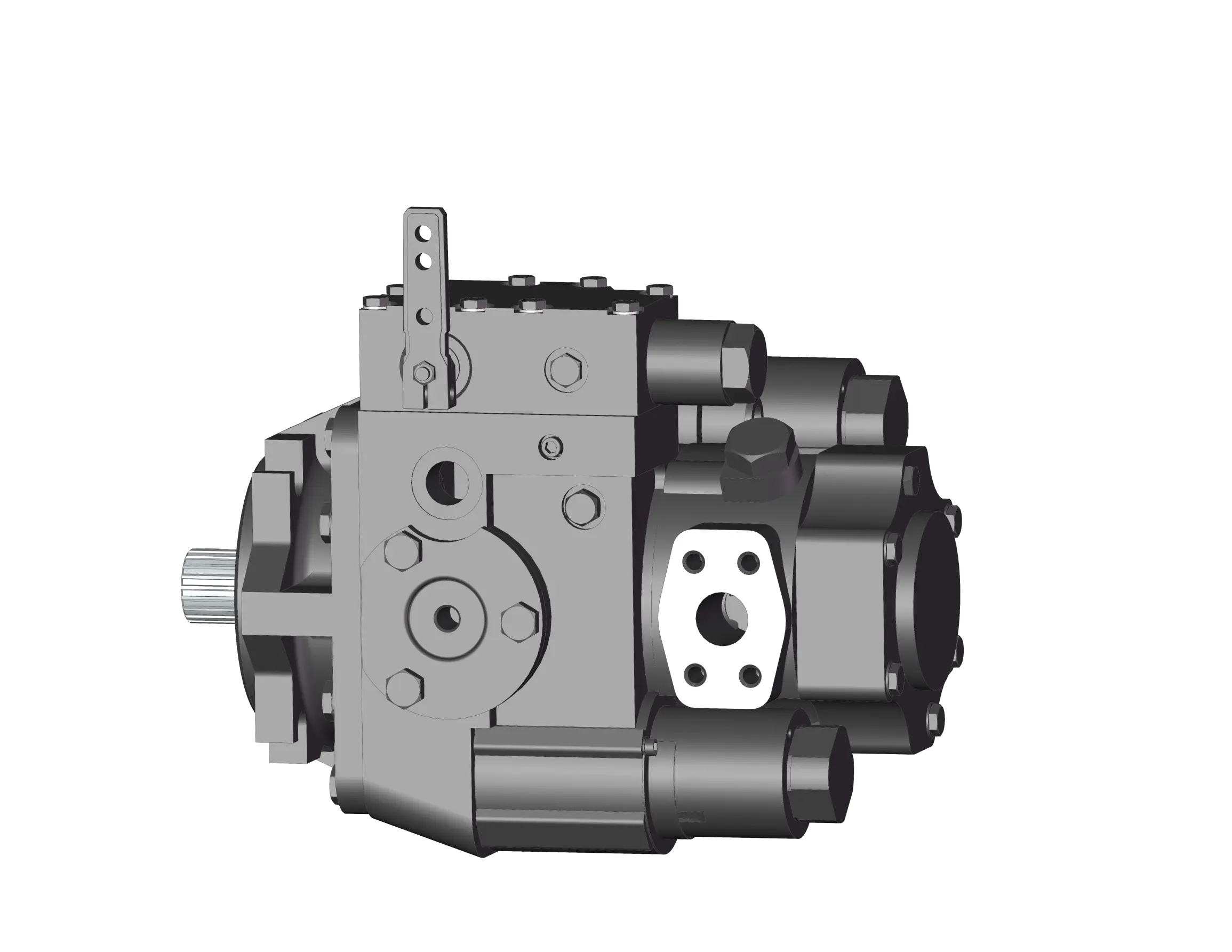

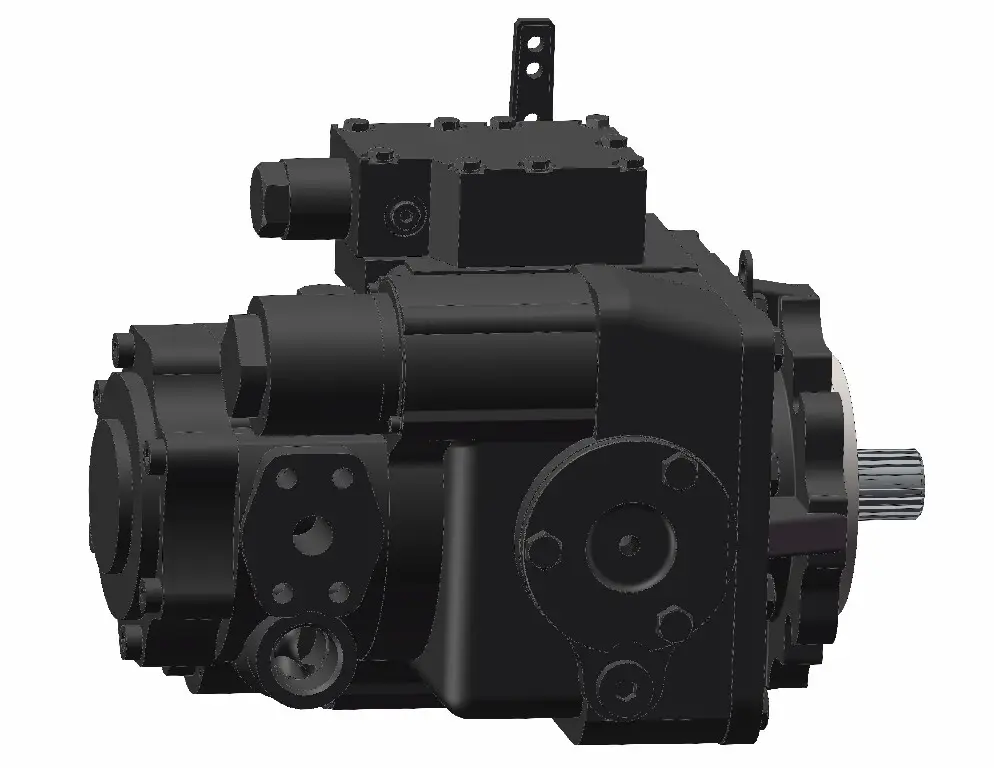

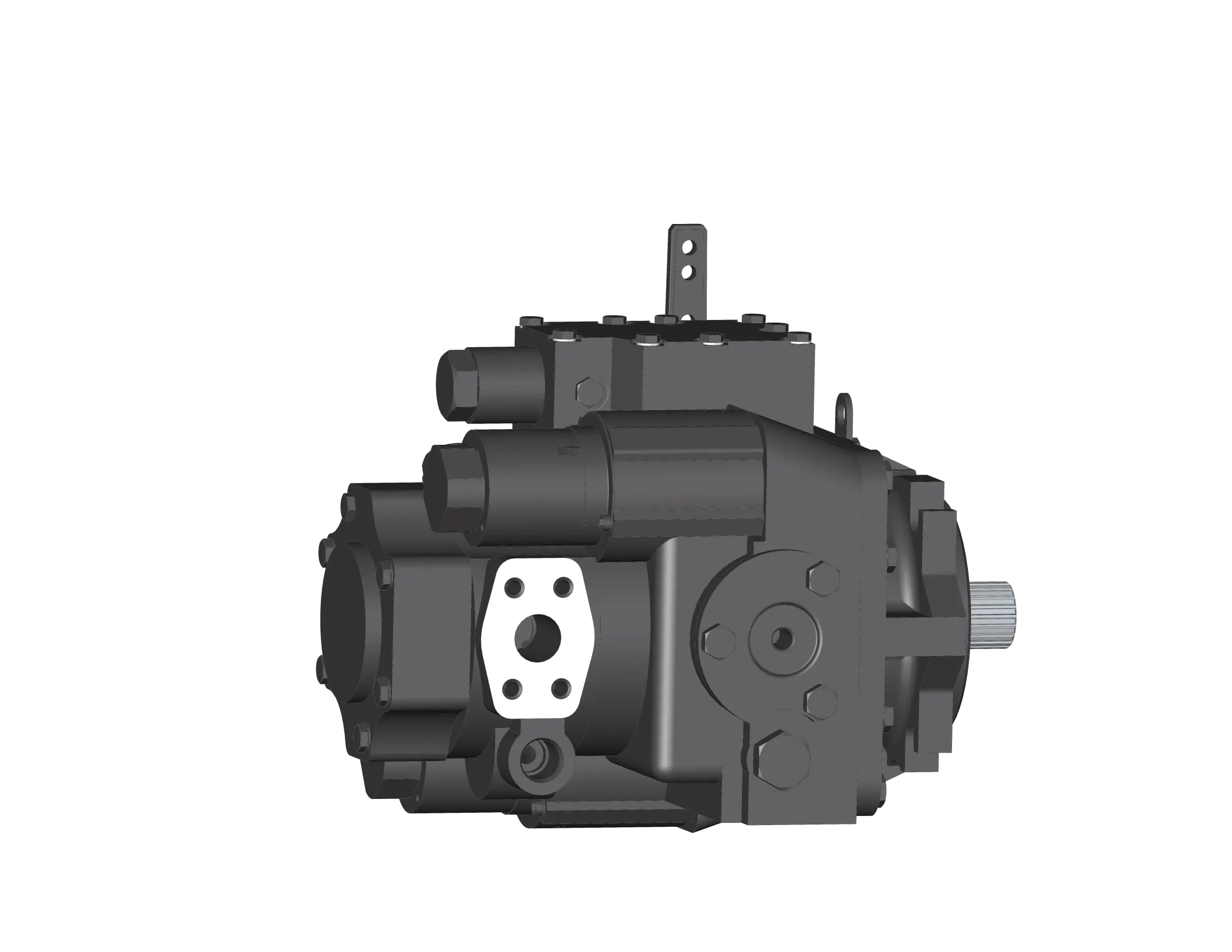

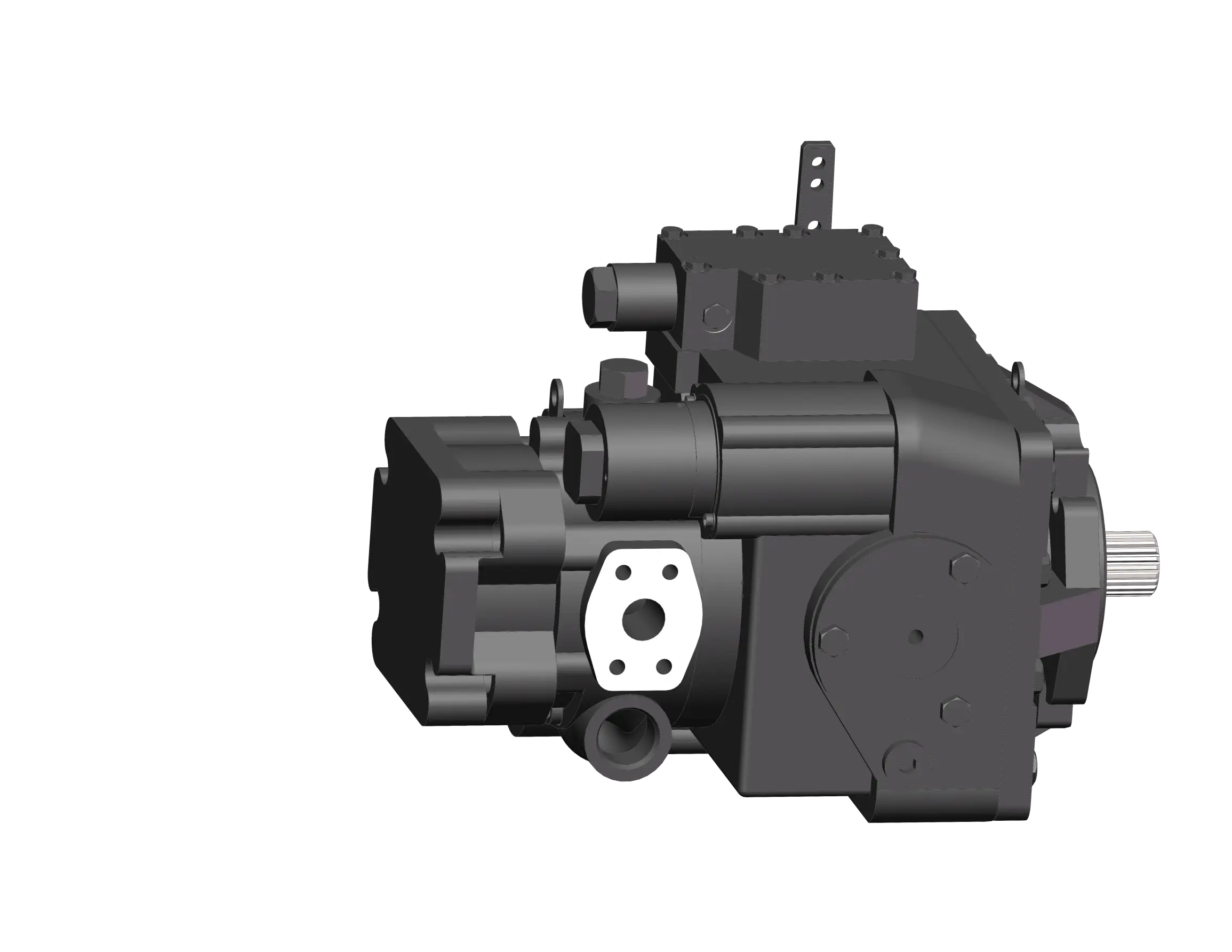

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic 1

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic 2

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic 3

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic 4

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic 5

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic 6

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic 7

Variable Displacement Axial Piston Pump 30-60 Work Days by Highland Hydraulic

Packaging Details:

Plywood case

Delivery Time:

30-60 work days

Inquiry

Pressure

42mpa

Material

Cast Iron

Mode

HPV30|HPV50|HPV70|HPV90|HPV110|HPV130

Product details of the variable displacement axial piston pump

Product Specification

Pressure: 42mpa

Mode: HPV30|HPV50|HPV70|HPV90|HPV110|HPV130

Material: Cast Iron

Product Description

The design concept of variable displacement axial piston pump is based on modern green style. We offer variable displacement axial piston pump that are unique and manufactured keeping the changing global trends in mind . The product becomes very popular with its marked features among customers in the industry.

Closed Circuit Hydraulic Axial Piston Pump

For Agricultural Havester

Highland closed-circuit hydraulic axial piston pumps for agricultural harvesters,

offering efficiency, durability, and long-lasting reliability.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland closed-circuit hydraulic axial piston pumps provide high-pressure, high-efficiency solutions for agricultural harvesters. Featuring variable displacement for precise control, they ensure smooth and reliable performance. Designed with durability in mind, they withstand harsh conditions, reducing downtime and maintenance needs.

Product Features

Highland closed-circuit hydraulic axial piston pumps are engineered to meet the rigorous demands of agricultural harvesters.
Designed for high performance and efficiency, they offer smooth operation, and durability under heavy workloads.
With advanced hydraulic technology, Highland hydraulic pumps optimize energy consumption while providing reliable power transmission, enhancing machine productivity.

Product INTRODUCTION

Highland hydraulic manufacture advanced closed-circuit hydraulic axial piston pumps, specifically designed for agricultural harvesters. With high efficiency, precise control, and robust construction, our pumps enhance performance and reliability in modern farming operations, ensuring maximum productivity and reduced energy consumption.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

Hydraulic Axial Piston Pump

Variable Hydraulic Piston Pump

Hydraulic Piston Pump Manufacturer

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine
