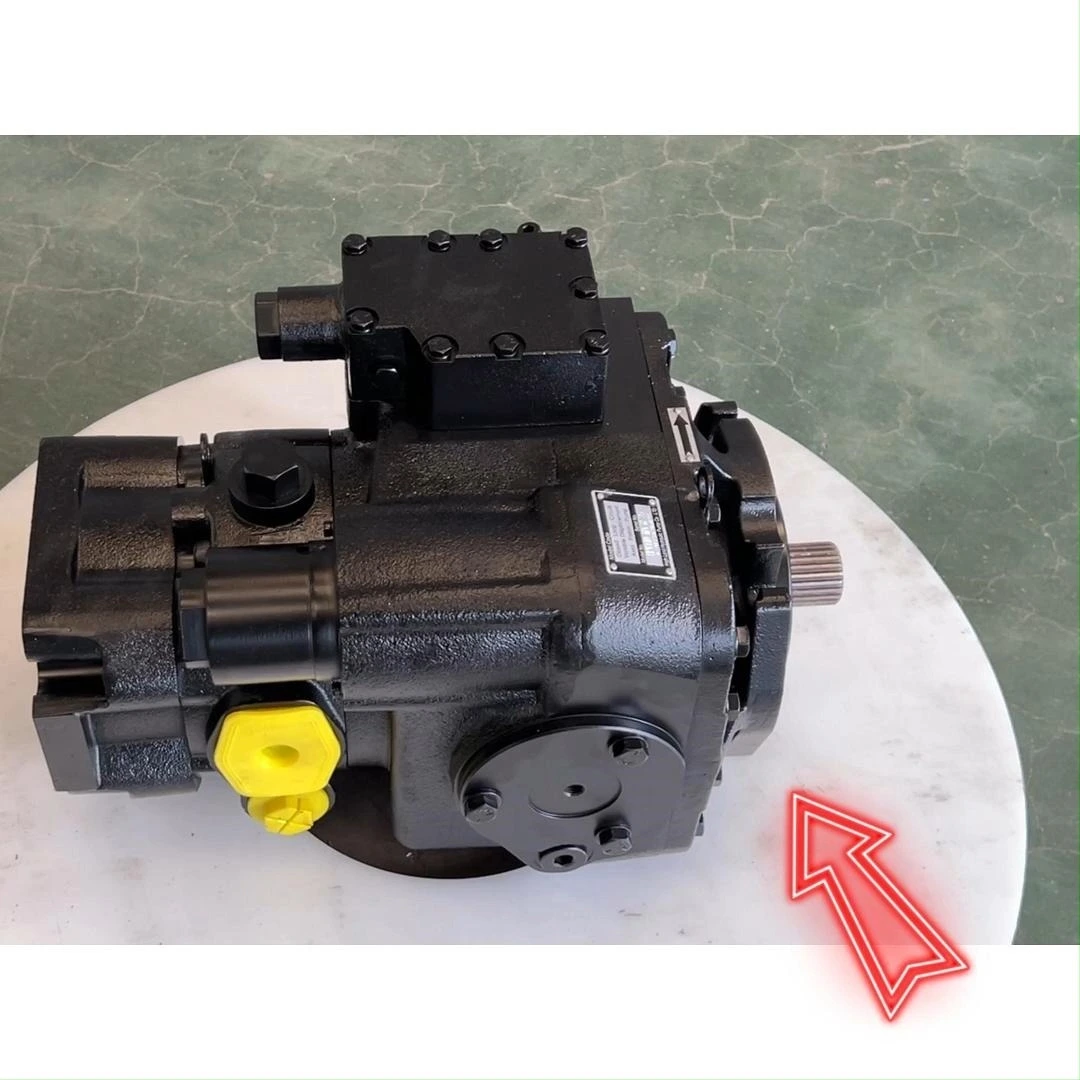

HPV110 Closed Axial Piston Pump For Harvesting Machine 1

HPV110 Closed Axial Piston Pump For Harvesting Machine 2

HPV110 Closed Axial Piston Pump For Harvesting Machine 3

HPV110 Closed Axial Piston Pump For Harvesting Machine 4

HPV110 Closed Axial Piston Pump For Harvesting Machine 5

HPV110 Closed Axial Piston Pump For Harvesting Machine 6

HPV110 Closed Axial Piston Pump For Harvesting Machine 7

HPV110 Closed Axial Piston Pump For Harvesting Machine

The HPV Series Closed Circuit Axial Piston Pumps offer exceptional efficiency and reliability for heavy-duty industrial use. Their advanced technology and compact design provide unmatched performance and durability. These pumps handle high pressures and flows smoothly, ensuring consistent operation. The axial piston design ensures precise control, while the closed circuit reduces complexity and maintenance. Overall, the HPV Series is a robust solution for various industrial applications.

MOQ:

1 sets

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Pressure

35mpa

Brand

HIGHLAND

Dimension(L*W*H)

53*34*43cm

Speed

2900r/min

Operation Mode

Closed Circuit Hydraulic System

Displacement

110ml/r

Working Medium

Hydraulic Oil

Warranty

1 Year

Material

Cast Iron

HIGHLAND

Products Advantages

The HPV110-MA-R-23 Closed Axial Piston Pump boasts a compact design, making it ideal for space-constrained applications. Its advanced axial piston technology ensures efficient and reliable performance.

HPV110 Closed Axial Piston Pump For Harvesting Machine 8

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

HPV110 Closed Axial Piston Pump For Harvesting Machine 9

Low price

We promise the lowest price for new products of the same variety in the world

HPV110 Closed Axial Piston Pump For Harvesting Machine 10

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Application

The HPV110-MA-R-23 Closed Axial Piston Pump is designed for compact spaces and operates efficiently. It is ideal for use in hydraulic systems requiring high pressure and minimal noise output. This pump is suitable for various industrial applications, such as agriculture machinery.

Harvesting machine

Self-propelled mowers

Grape harvester

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Download FIle

PDF

Download FIle

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

HPV110-MA-R-23 Closed Axial Piston Pump - Compact Design

Product Description

The HPV110-MA-R-23 closed axial piston pump offers a compact design that saves space and enhances efficiency. Its high-quality construction ensures reliable and long-lasting performance, while its sleek and modern style adds a touch of sophistication to any industrial setting. With easy installation and low maintenance, this pump is the ideal solution for customers seeking a reliable and compact hydraulic pump.

MATERIAL INTRODUCTION

HPV110-MA-R-23 Closed Axial Piston Pump - Compact Design

Product fittings are redesigned, the ball-hinged coil spring is changed to disc spring, and the cylinder diameter is reduced, so that the external dimension of the same displacement pump is reduced by one level. Mechanical seals are changed to high-pressure skeleton oil seal structure, so that the probability of hydraulic pump oil leakage is reduced to almost zero. Process costs have been significantly reduced.

Product Details

Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.

axial piston pump

closed hydraulic pump

harvester hydraulic pump

HPV70（90）

Packing & Delivery

To protect the goods, we pack the goods at least three layers. The first layer is film, the second is carton or woven bag, the third is carton or plywood case. Glass: plywood box, Other components: covered by bubble firm bag,packing in carton.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

Do you accept OEM business?

Yes, we accept OEM business.

What kind of certificate do you have?

We have ISO9001, CE certificate.

Could I have a sample order?

Yes, we welcome sample order to test and check quality.

Where is the place of origin for the products?

The place of origin for the products is CHINA DEZHOU.
