Hydraulic Pump Mode

PV23

Type

Axial piston pump

Pressure

42mpa

Operation Mode

Closed Circuit Hydraulic System

High Pressure Hydrostatic System Components

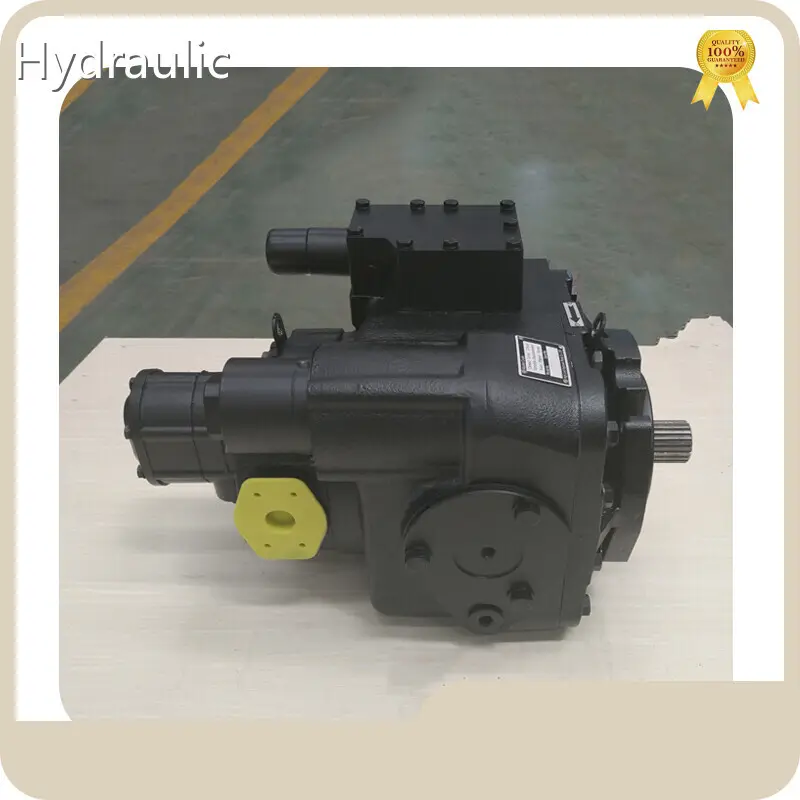

Hydrostatic Pump PV23 For Sale

PV23 hydrostatic pump delivers high-pressure, efficient performance for industrial and mobile applications.

With durable construction and precise control, it ensures reliability and long service life.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

PV23 hydrostatic pump is a high-pressure, high-efficiency hydraulic component designed for demanding applications. It offers precise control, smooth operation, and superior durability, making it ideal for industrial, construction, and agricultural machinery. With advanced engineering and robust materials, the PV23 ensures high performance under extreme conditions, providing reliable power transmission and minimal maintenance for long-term use.

Product Features

PV23 hydrostatic pump is a critical component in high-pressure hydrostatic systems, offering exceptional efficiency and durability.
It converts hydraulic energy into mechanical power, ensuring smooth and reliable operation in various industrial and mobile applications.
PV23 hydraulic pump is widely used in heavy machinery, construction equipment, and agricultural applications.

Product INTRODUCTION

PV23 hydrostatic pump is built for high-pressure hydrostatic systems, delivering excellent power and efficiency. Designed for heavy-duty applications, it ensures smooth and reliable operation in industrial and mobile machinery. With a compact and durable structure, PV23 offers optimal performance, making it a preferred choice for construction, agriculture, and material handling equipment. Its robust design guarantees long service life and efficiency.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydrostatic System

Hydrostatic System Components

Hydrostatic Pump

PV23 Hydrostatic Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.
