Hydraulic Solutions T/T by Highland Hydraulic

Product details of the hydraulic solutions

Product Specification

Application: Agricultural machinery

Pressure: 42mpa

Displacement: 90ml/r

Product Information

hydraulic solutions has better tactile and visual feel. Its developing requires stringent testing to ensure quality and performance. Only those that pass rigorous tests will go to the marketplace. The product reaches the requirements of the customers and is popular among customers.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Precision-engineered for optimal power delivery, PV22 hydraulic pump enhances energy efficiency, lowers fuel consumption, and ensures maximum productivity on demanding construction sites.

Product Features

•  Compact and Modular Design: Facilitates easy installation and integration into confined spaces common in mixer truck configurations.
• Rapid Response Control: Fast-acting swashplate adjustments provide instantaneous adaptation to fluctuating load demands.
• High Volumetric Efficiency: Precision machining reduces internal leakage, ensuring stable hydraulic output under high pressures.

Product INTRODUCTION

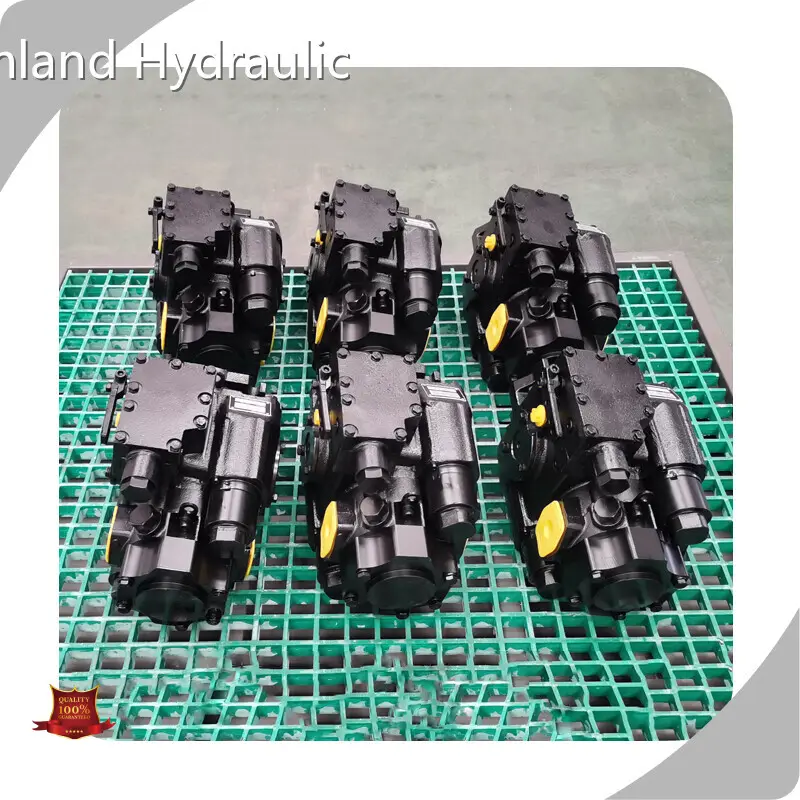

Hydraulic piston pump PV22is a robust, reliable solution designed specifically for cement mixers, delivering stable pressure control and precise fluid flow for superior mixing performance.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

HPV130 Pump

Hydrostatic Pump

High Pressure Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
