Reliable High Pressure Piston Pumps For Modern Hydraulic Systems

Reliable High Pressure Piston Pumps For Modern Hydraulic Systems

Reliable High Pressure Performance: Designed to operate consistently under high pressure conditions, Highland piston pumps deliver stable hydraulic output for modern systems requiring strong and dependable power transmission.
Optimized for Modern Hydraulic Systems: Advanced hydraulic design ensures compatibility with modern system architectures, supporting precise control, efficient power distribution, and smooth system response.
High Efficiency and Reduced Energy Loss: Precision piston geometry and optimized internal flow paths minimize leakage and friction, improving volumetric efficiency and reducing heat generation.
Durable Construction and Long Service Life: High-strength materials, advanced surface treatments, and robust sealing systems provide excellent wear resistance and long-term reliability in demanding environments.
Flexible OEM Integration Options: Multiple displacement sizes, control methods, and mounting configurations allow seamless integration into a wide range of mobile and industrial hydraulic systems.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Reliable High Pressure Piston Pumps

For Modern Hydraulic Systems

Modern hydraulic systems require piston pumps that combine high pressure capability, efficiency, and long-term reliability.

Closed Loop Hydraulic Pump Motor System.jpg

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland reliable high pressure piston pumps provide stable and efficient hydraulic power for modern systems. Durable construction, high efficiency, and precise control ensure dependable performance and long service life.

Product Features

Through precision manufacturing and optimized internal design, Highland high pressure piston pumps deliver stable flow output and accurate pressure control under variable operating conditions.
High volumetric efficiency reduces energy loss and system heat, improving overall system performance. Robust construction and advanced sealing technology ensure reliable operation in harsh environments involving vibration, dust, temperature variation, and continuous duty cycles.
With OEM-oriented configuration flexibility, Highland piston pumps support efficient integration into modern hydraulic systems across multiple industries.

PRODUCT INTRODUCTION

Highland Hydraulic supply reliable high pressure piston pumps engineered for modern hydraulic systems. Designed for efficiency and durability, our pumps deliver stable performance, strong pressure capability, and flexible integration for mobile and industrial applications.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

High Pressure Piston Pumps

Hydraulic System

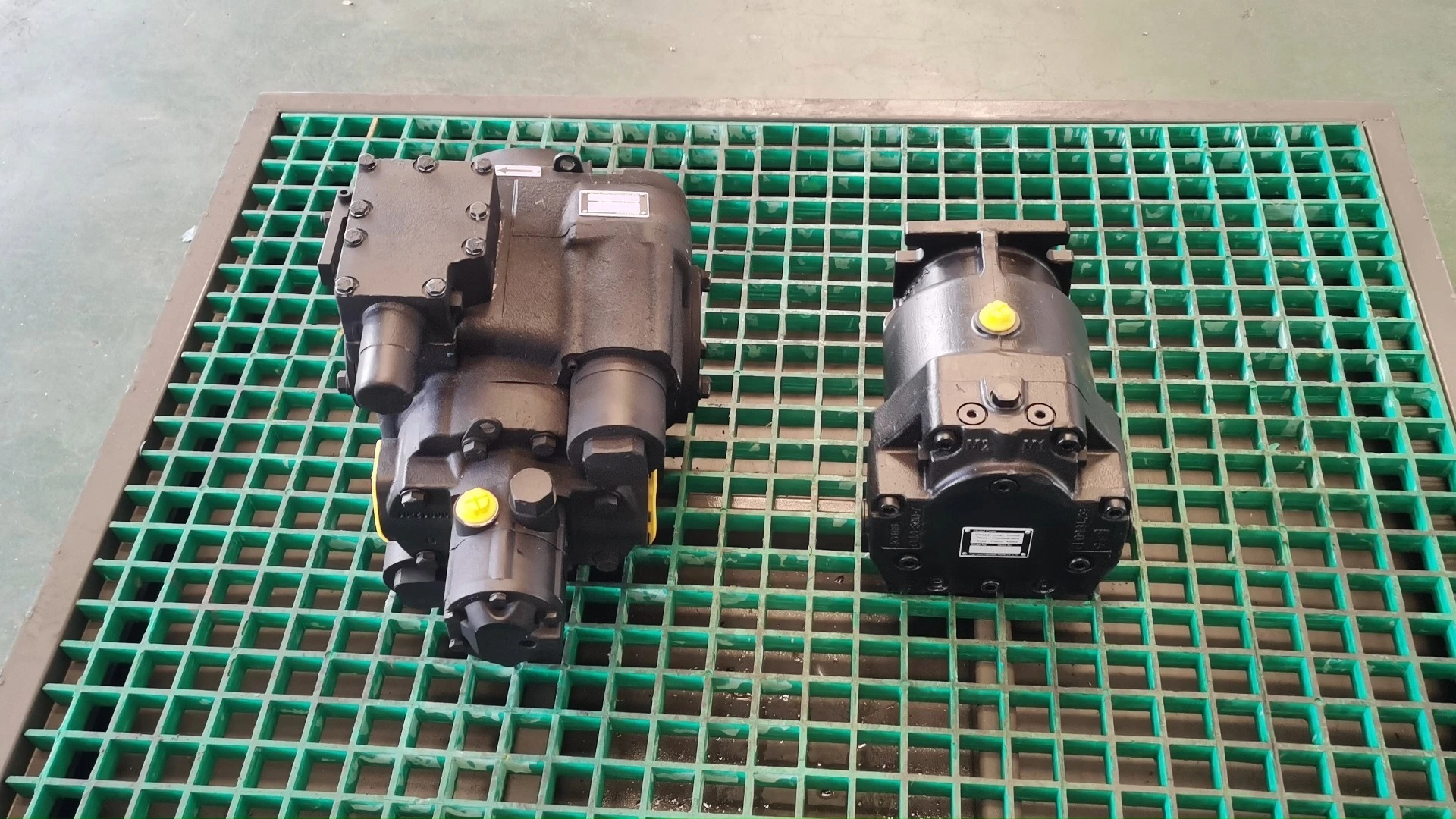

Hydraulic Solutions

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
