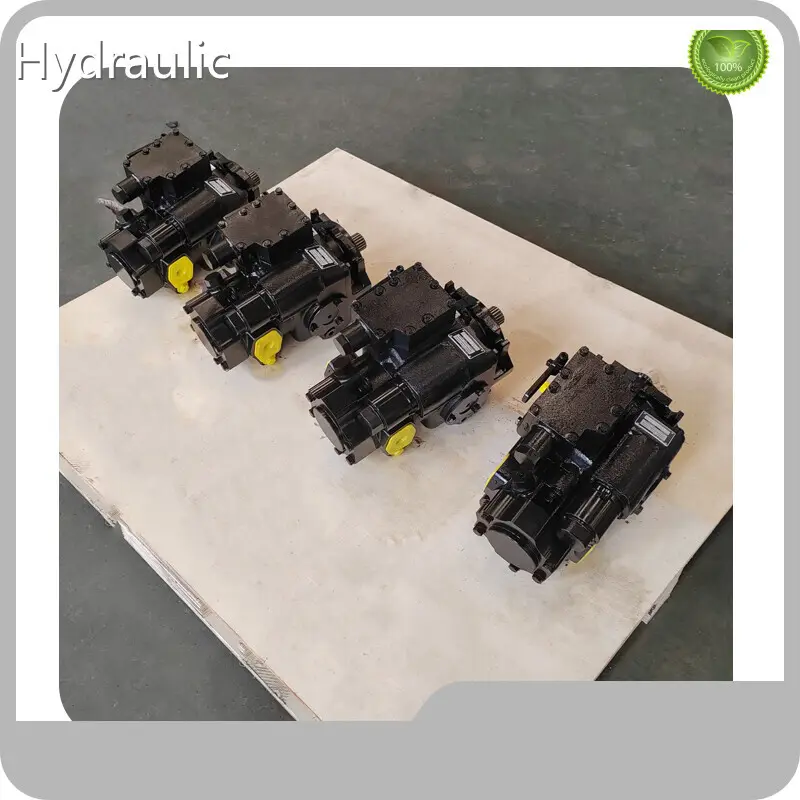

Hydraulic Solutions Plywood Case by Highland Hydraulic 1

Hydraulic Solutions Plywood Case by Highland Hydraulic 2

Hydraulic Solutions Plywood Case by Highland Hydraulic 3

Hydraulic Solutions Plywood Case by Highland Hydraulic 4

Hydraulic Solutions Plywood Case by Highland Hydraulic 5

Hydraulic Solutions Plywood Case by Highland Hydraulic 6

Hydraulic Solutions Plywood Case by Highland Hydraulic

Packaging Details:

Plywood case

Inquiry

Hydraulic Pump Mode

HPV90

Type

Axial piston pump

Dimension(L*W*H)

53*34*43cm

Working Medium

Hydraulic Oil

Product details of the hydraulic solutions

Product Specification

Dimension(L*W*H): 53*34*43cm

Working Medium: Hydraulic Oil

Hydraulic Pump Mode: HPV90

Type: Axial piston pump

Product Overview

Highland Hydraulic hydraulic solutions is made employing advanced technology and sophisticated crafts. Our full quality inspection throughout the whole manufacturing process greatly ensures that the product is 100% qualified in quality and performance. From design, production to use, all process for producing hydraulic solutions comply with international green energy specifications.

Product Description

Compared with similar products in the market, the hydraulic solutions of Highland Hydraulic has the following main advantages.

Explosive HPV110 Variable Displacement Pump Manufacturer

Designed for hydraulic systems in harvesters and agricultural machinery

Suitable for static hydraulic drive of lifting, snow pressing, and construction machinery

Very suitable for agricultural machinery drive systems that require hydrostatic hydraulic pumps

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland's HPV90 hydraulic pump assembly is specifically designed for robust and efficient operation within advanced hydraulic systems.Featuring a variable displacement axial piston construction with a built-in charge pump, the HPV90 ensures smooth hydraulic fluid flow and efficient power transfer. The pump supports diverse servo control methods—manual, hydraulic, or electric proportional servo—to accurately manage speed, power, and directional control of connected hydraulic motors.

Product Features

Modular design enables swift repair and easy maintenance.

High-performance hydraulic servo control provides rapid and precise response.

Standardized mounting interface ensures compatibility with mainstream market equipment.

Durable and robust materials offer outstanding pressure and wear resistance.

Strong pricing strategy ensures lowest cost within similar product categories.

Product INTRODUCTION

Built for precision and reliability, HPV90 axial piston pump excels in challenging industrial environments. Its refined design, including reinforced piston-slipper assemblies and strategically angled swash plates, ensures superior hydraulic performance, consistently low pulsation levels, and maximum efficiency, effectively reducing operational costs.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Download FIle

PDF

Download FIle

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

HPV110 Pump

Pump Manufacturer

Hydraulic Pump

HPV110 Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Introduction

Highland Hydraulic brand is skilled at producing hydraulic solutions. Our factory location is close to both suppliers and customers. This helps minimize shipping costs, both for raw materials coming into the plant and for finished goods going out. Our sustainability strategy has been shared across departments. All our members are focusing on improving the way we manufacture and design our products to help reduce our impact on the environment.
We sincerely welcome customers with needs to contact us and cooperate with us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
