Hydraulic Solutions Hydraulic Oil - - Highland Hydraulic
Product details of the hydraulic solutions
Product Specification
Speed Range: 0-1500r/min
Working Medium: Hydraulic Oil
Test Element: Closed Pump Test,Low Speed Motor Test
Brand: HIGHLAND
Flow Rate: 380L/min
Quick Overview
Highland Hydraulic hydraulic solutions is available in different designs and colors. We implements strict checks to ensure the impeccable quality of this product. These offered products are widely demanded in the market.
Product Information
Highland Hydraulic's hydraulic solutions is produced in strict accordance with standards. We make ensure that the products have more advantages over similar products in the following aspects.
PRODUCT PERFORMANCE

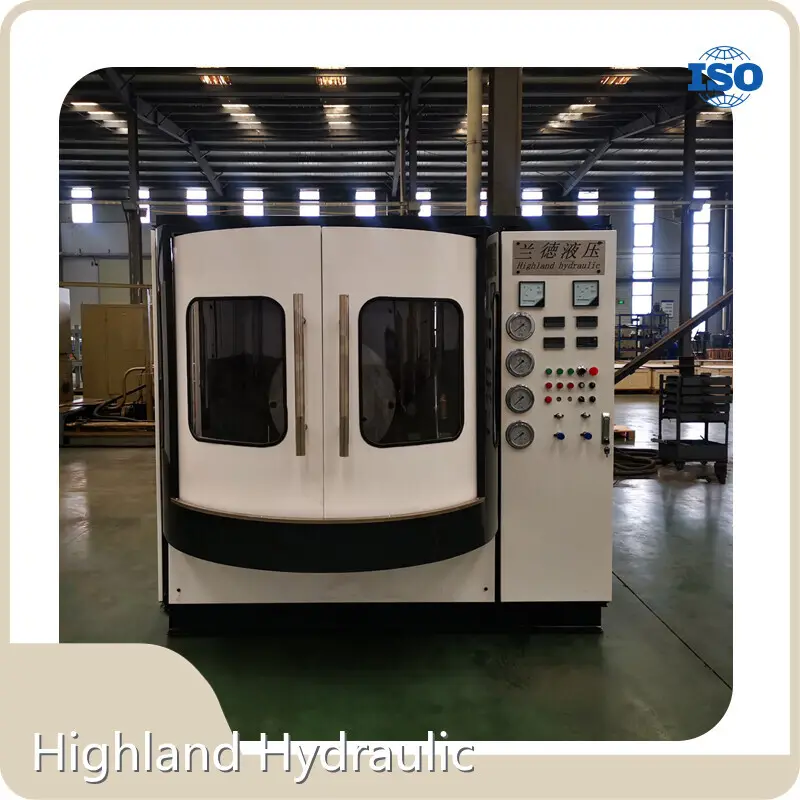

Modular hydraulic test bench features industrial-grade hydraulic components and high-precision sensors, with a test pressure range of 0-40MPa (customizable for higher pressures). It delivers ±0.5% flow measurement accuracy and ±1℃ temperature control precision. The system supports multi-channel synchronous data acquisition at 1kHz sampling rate, with real-time pressure-flow characteristic curve display. Equipped with an intelligent PID control system, it enables automatic pressure stabilization and dynamic load testing. With IP65 protection rating and -20℃~60℃ operating temperature range, it ensures reliable performance in harsh industrial environments.
Products Advantages
Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.
Product sPECIFCATIONS
Our experts can help you find the perfect hydraulic testing equipment for your home.
| Pressure | 35mpa、42mpa | |
| Flow Rate | 380L/min 、450L/min、500L/min | |
| Brand | HIGHLAND | |
| Power | 75kw、90kw、110kw、160kw、200kw、250kw、315kw | |
| Test Element | Close pump test, Open pump, Low speed motor, Valve set, Cylinder | |
| Power Drive Mode | Electromotor, Diesel engine drive, Hydraulic mortor, Power recovery | |
| Speed Range | 1000r/min、0-1500r/min、0-2500r/min、0-3500r/min | |
| Display Mode | Locale(Withour Computer)、Computer (long-distance) | |
| Working Medium | Hydraulic oil | |
| Oil Tank Cubage | 1300L、2000L | |
STANDARD TEST BENCH MODELS INCLUDE
Hydraulic Pump Test Bench
Hydraulic Motor Test Bench
Hydraulic Cylinder Test Bench
Valve Factory Test Bench
Transmission & Torque Converter Test Bench
ADDITIONAL SHOWCASES
All what you need to know about us
We are a professional manufacturer with over 20 years of experience in the hydraulic industry. As a trusted enterprise known for process quality and reliability, we pride ourselves on delivering excellence.
We have our own quality control team, equipped with highly skilled technicians and strong development capabilities, supported by a strict quality control system to ensure high standards.
We offer regular supply of individual products with immediate delivery and can customize products according to customer needs. We also provide a one-year warranty on hydraulic test benches.
PRODUCT DISPLAYZoom in For Better Detail
Product SPECIFICATIONS
Our experts can help you find the perfect hydraulic testing equipment for your home.
FAQ
PRODUCT APPLICATIONS
Company Introduction
Shandong Highland Hydraulic Seiko Co., Ltd is a professional company. We specialize in the production of Hydraulic pump、Hydraulic motor、Hydraulic test benches. Based on honesty, Highland Hydraulic pursues excellence and seeks steady development. Under the guidance of enterprise spirit, we intend to be responsible, truth-seeking and aggressive. We continuously improve our core competitiveness and maintain close and friendly relationships with customers. Our aim is to become a first-class company that makes employees proud and is trusted by the public. Highland Hydraulic has a research and development team composed of senior technical designers and engineers in the industry. We focus on product design and development with the concept of 'quality first, technological innovation, novel design'. With professional service spirit, Highland Hydraulic always provides customers with reasonable and efficient one-stop solutions.
Welcome to discuss business cooperation with us!
