Product details of the hydraulic solutions
Product Specification
Mode: MYHT-1-2|MYHT-1-4|MYHT-1-5|MYHT-1-7
Max Pressure: 420bar
Brand: HIGHLAND
Temperature: 150℃
Product Introduction
The production of Highland Hydraulic hydraulic solutions is compatible with the newest technology. The product is of superior quality that sets a new standard in the industry. Shandong Highland Hydraulic Seiko Co., Ltd's large scale and respected brand for hydraulic solutions, give it a big competitive advantage.
HIGHLAND MYHT SERIES
Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system
Products Advantages
Equipped with high-precision sensors and intelligent analysis algorithms, the system achieves a testing accuracy of ±1%, with a response time of <0.1 seconds and a maximum pressure of 420 bar. It supports a variety of hydraulic equipment, meeting the testing needs of different devices.
INSTRUMENT MAINTENANCE
Product Specifications
|
Model |
Max flow(lpm) |
Max presure(bar) |
Dimension(mm) |
Weight(kg) |
|
MYHT—1—2 |
200 |
420 |
295×265×210 |
6.1 |
|
MYHT—1—4 |
400 |
420 |
295×265×210 |
8.8 |
|
MYHT—1—5 |
500 |
420 |
295×265×210 |
10.2 |
|
MYHT—1—7 |
800 |
420 |
310×285×261 |
14 |

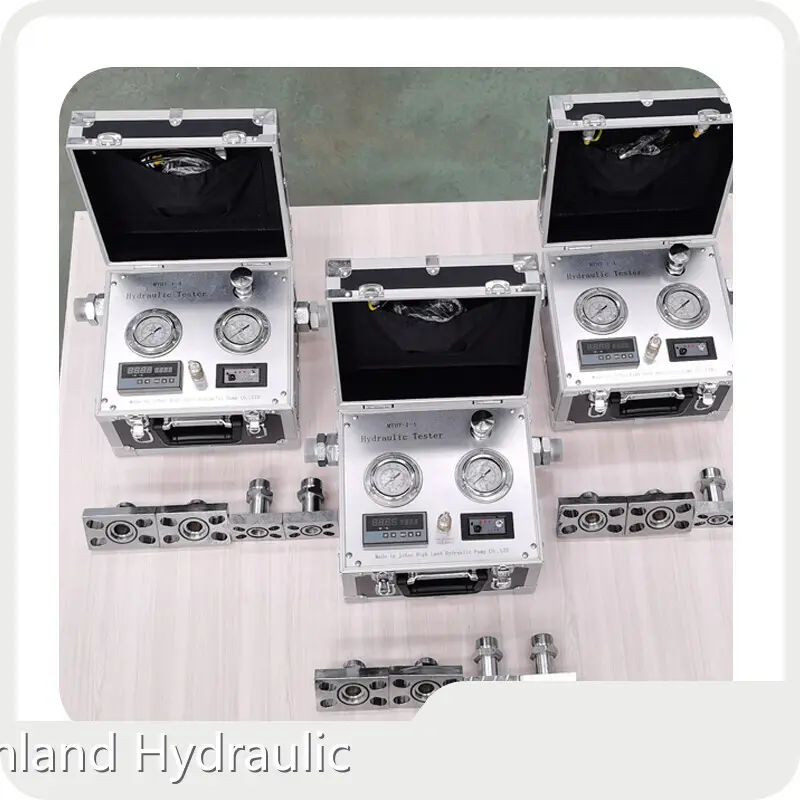

MYHT series portable hydraulic tester
Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!
portable hydraulic tester
The Portable Hydraulic Tester for Concrete Equipment is an intelligent detection device specially designed for construction machinery hydraulic systems. Incorporating advanced sensor technology and digital processing systems, it enables quick and accurate diagnosis of hydraulic system failures in concrete pump trucks, mixer trucks and other equipment.
Key Features
- Compact and lightweight design , ideal for field use
- LCD display for real-time monitoring of pressure, flow rate, temperature and other critical hydraulic parameters
- Rapid diagnosis of hydraulic system failures with precise fault location
- Compatible with various concrete equipment including pump trucks and mixers
- Built-in database of hydraulic system troubleshooting solutions
- Rugged industrial-grade housing for tough construction site conditions
Fault Diagnosis Solutions
- Insufficient Pressure: Quickly locate pump, valve or seal failures
- System Overheating: Analyze abnormal oil temperature causes to prevent hydraulic oil deterioration
- Slow Operation: Check flow rate compliance and evaluate pump/motor efficiency
- Pressure Fluctuation: Identify air entrainment or contamination issues
- Abnormal Noise: Analyze possible cavitation or mechanical failures through pressure curves
Applications
◆ Loading valve: Under normal connection conditions, if the loading valve cannot be loaded, check whether there are pollutants inside the valve
◆ Battery: The instrument is equipped with a 12V lithium battery, which can work for up to 30 hours when connected and has a charging time of 4-8 hours per charge
◆ Flow meter: The flow meter cannot display data normally, possibly due to contamination. Please contact the manufacturer for resolution
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
FAQ
Company Advantage
• Set up in Highland Hydraulic has established a good reputation and wide popularity in the industry during the development for years.
• Based on market demand, Highland Hydraulic is dedicated to providing quality products and professional services for customers.
• Our products are mainly sold to Europe, Africa, America, Southeast Asia and other countries and regions.
• Unique geographical advantages and abundant social resources create good conditions for Highland Hydraulic's development.
Highland Hydraulic sincerely looks forward to your presence, guidance, and partnership.
