Hydraulic Solutions High Efficiency by Highland Hydraulic

Product details of the hydraulic solutions

Product Specification

Operation Mode: Closed Circuit Hydraulic System

Characteristic: High efficiency

Application: Walking machinery

Working Medium: Hydraulic Oil

Brand: HIGHLAND

Product Information

Highland Hydraulic hydraulic solutions is designed in accordance with the industry conditions. With our extensive industry expertise in this field, this product is produced with the best quality. Shandong Highland Hydraulic Seiko Co., Ltd extensively implements the quality control system.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

PV110 hydraulic piston pump is specifically designed for transit mixers, providing high efficiency and durability. It ensures smooth and consistent hydraulic power, optimizing mixing performance while minimizing maintenance. With its advanced pressure control system, it enhances fuel efficiency and extends the lifespan of transit mixer equipment.

Product Features

PV110 hydraulic piston pump is a high-performance solution for transit mixers, providing precise hydraulic control and efficient power transmission.

Designed for durability, it withstands heavy workloads and ensures smooth mixing operations.

Built with high-quality materials, the PV110 offers excellent wear resistance, extending its service life and minimizing maintenance costs.

Product INTRODUCTION

Built for transit mixers, PV110 hydraulic piston pump delivers superior performance, durability, and efficiency. Its robust design ensures smooth hydraulic operation, optimizing concrete mixing and transportation. With a focus on energy savings and reduced maintenance, this pump is an ideal choice for heavy-duty applications in the construction industry.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

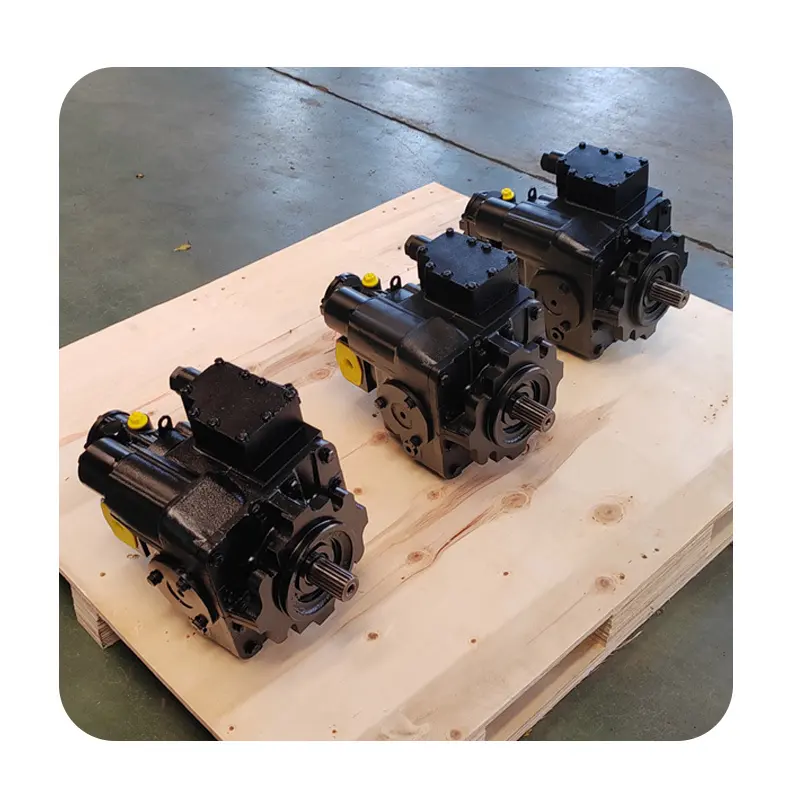

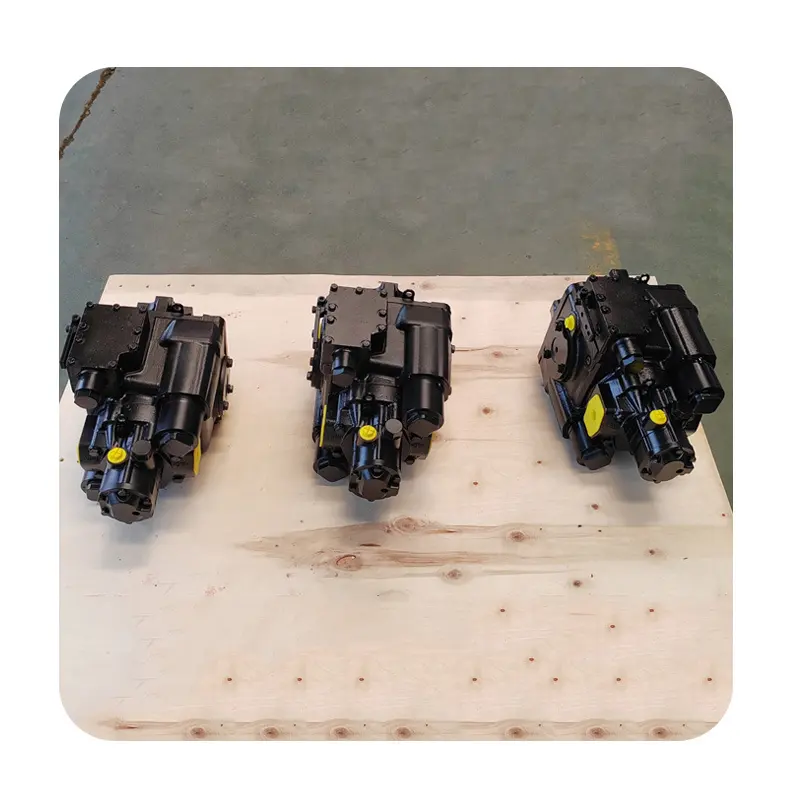

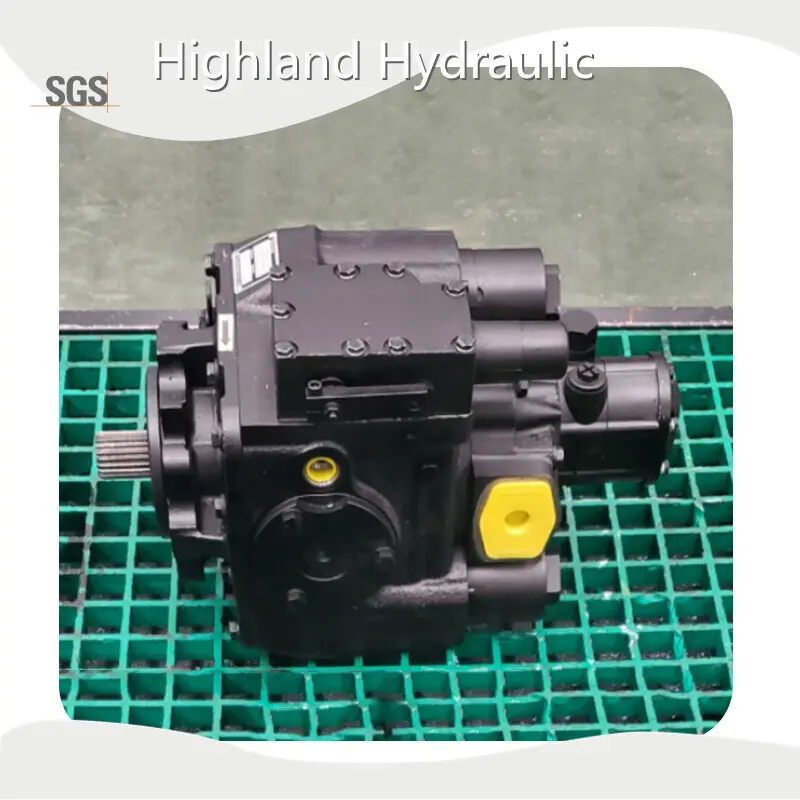

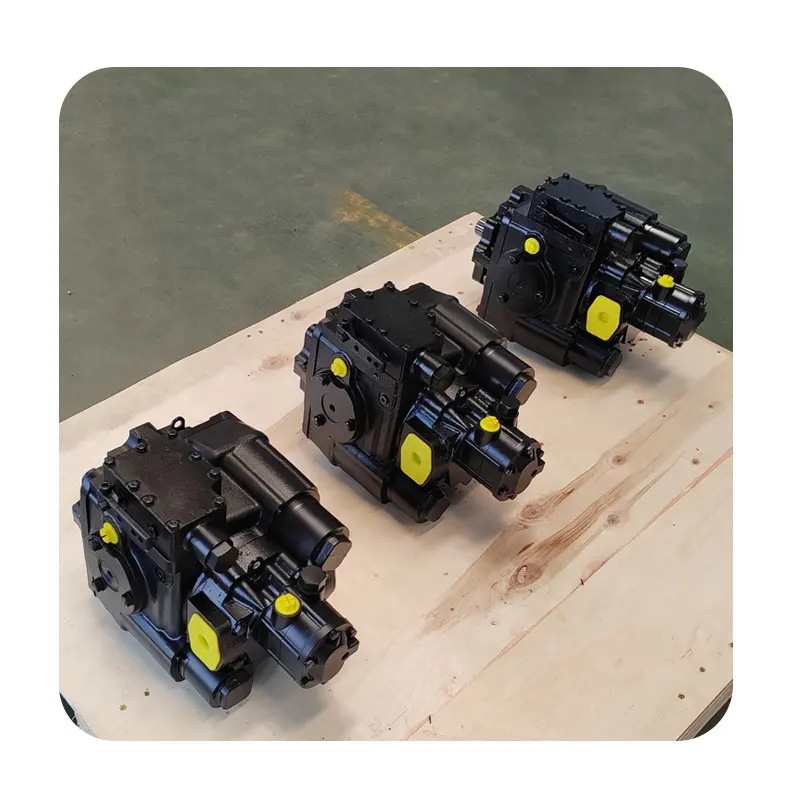

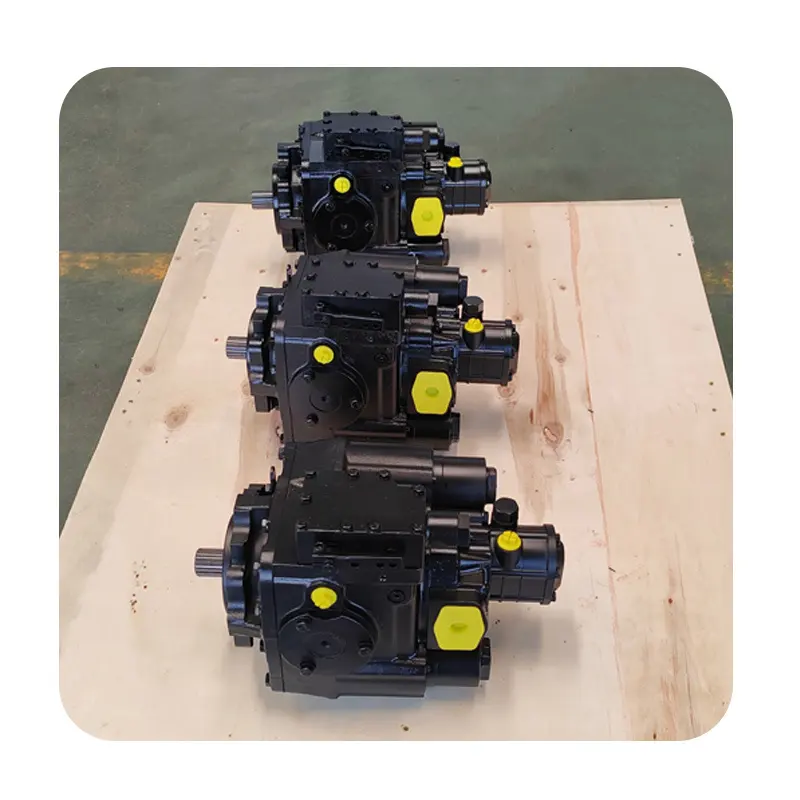

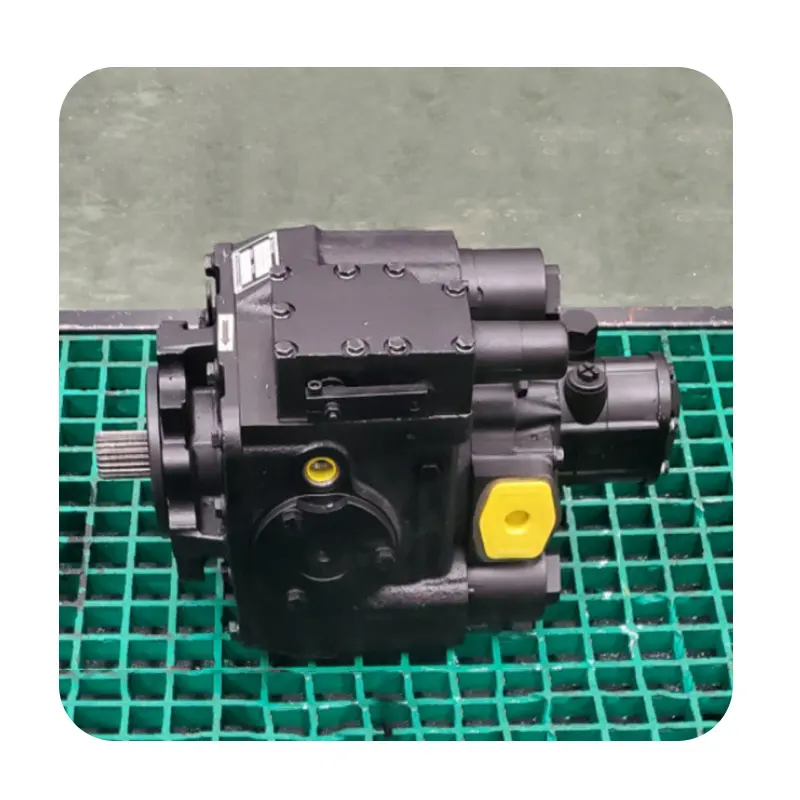

PV110 Hydraulic Piston Pump

Hydraulic Pump For Transit Mixer

Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Advantage

• Highland Hydraulic introduces a group of experienced and professional talents. They are committed to providing technical support for the production of high-quality products which greatly improves corporate core competency.
• Highland Hydraulic was incorporated in After years of painstaking effort, our overall strength and brand influence have been greatly improved. It promotes us to become one of the outstanding enterprises in the country.
• Our company insists on the service concept of 'customer first' and can supply customers with stable and high-quality services.
Contact us for more detailed product information!
