Product details of the hydraulic solutions

Product Specification

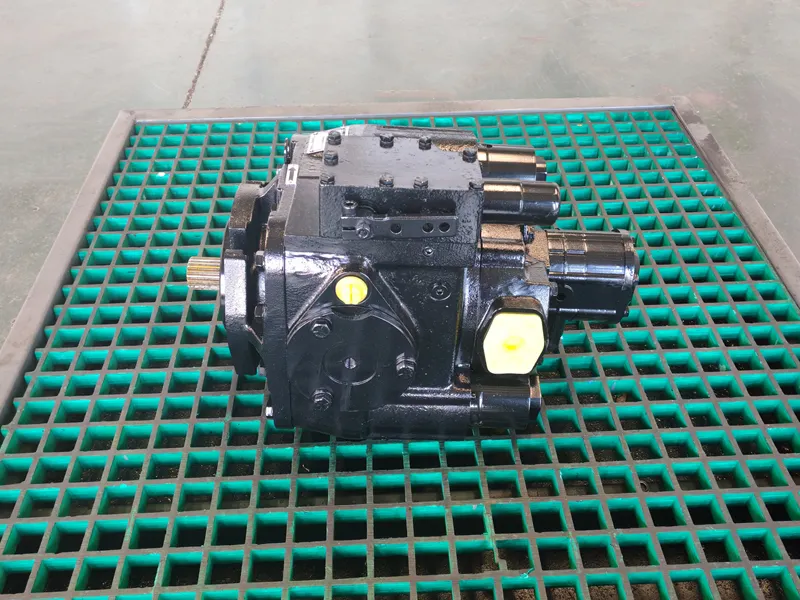

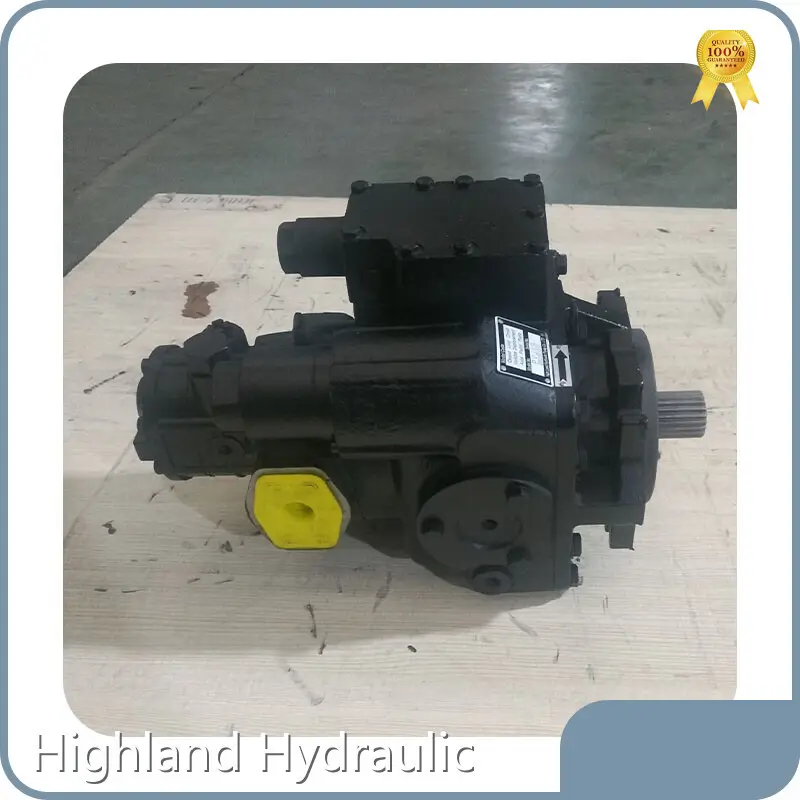

Product Name: Hydraulic Piston Pump PV23

Brand: HIGHLAND

Speed: 3500r/min

Operation Mode: Closed Circuit Hydraulic System

Characteristic: High efficiency

Product Introduction

Our company designes Highland Hydraulic hydraulic solutions with innovative thinking. Its prototype is continually tested against a wide variety of key performance criteria before going into production. It is also tested for conformity with a series of international standards. The product has been found usage in multitude industries and is believed to be more widely used in the coming years.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Designed for rugged durability, PV23 pump easily withstands high-pressure conditions typical in concrete mixing applications, providing smooth operation and extended service life.

Product Features

• Factory-direct pricing ensures cost-effective operation.
• Compact, robust design built to endure harsh jobsite conditions.
• Advanced hydraulic design reduces noise, enhancing operator comfort.
• Consistent high-pressure performance boosts productivity and job efficiency.

Product INTRODUCTION

Hydraulic piston pump PV23 is a robust, reliable solution designed specifically for cement mixers, delivering stable pressure control and precise fluid flow for superior mixing performance.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

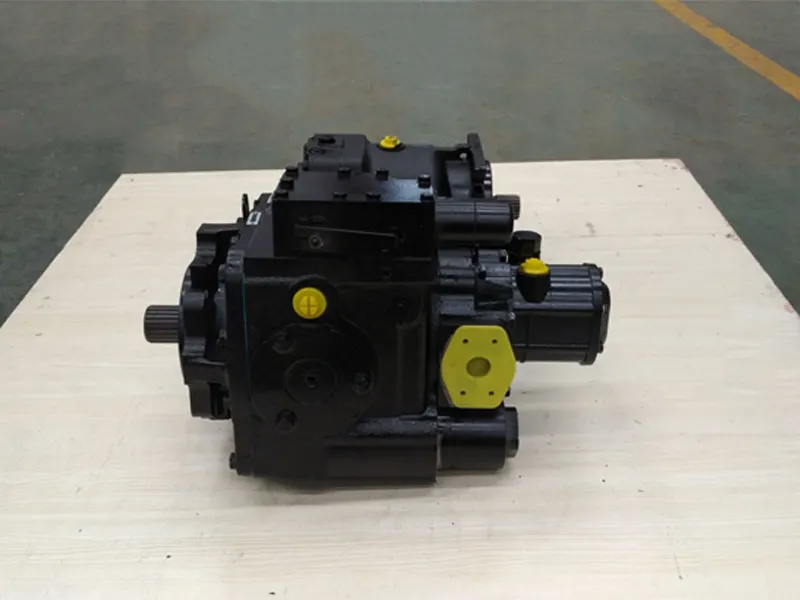

PV22 Variable Displacement Piston Pumps

Variable Displacement Piston Pump

PV22 Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
