Type

Axial piston motor

Brand

HIGHLAND

Speed

2900r/min

Company Advantages

· Highland Hydraulic hydraulic solutions is made by using the best grades of materials in our modern manufacturing facilities.

· The quality oversight of qualification activities in manufacturing area is emphasized.

· With its advanced technology, Shandong Highland Hydraulic Seiko Co., Ltd provides professional service for the customers in hydraulic solutions field.

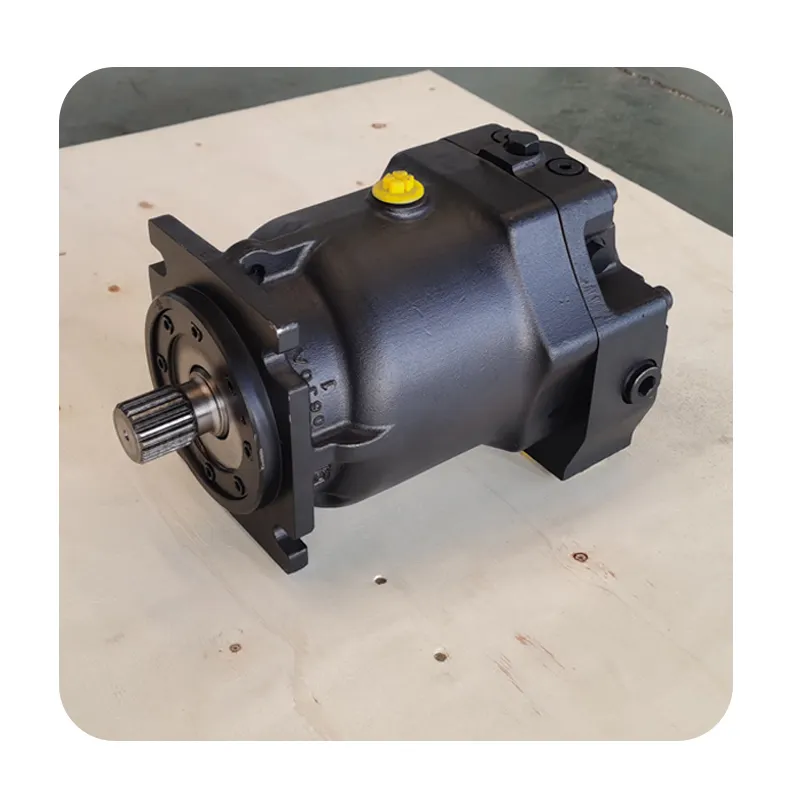

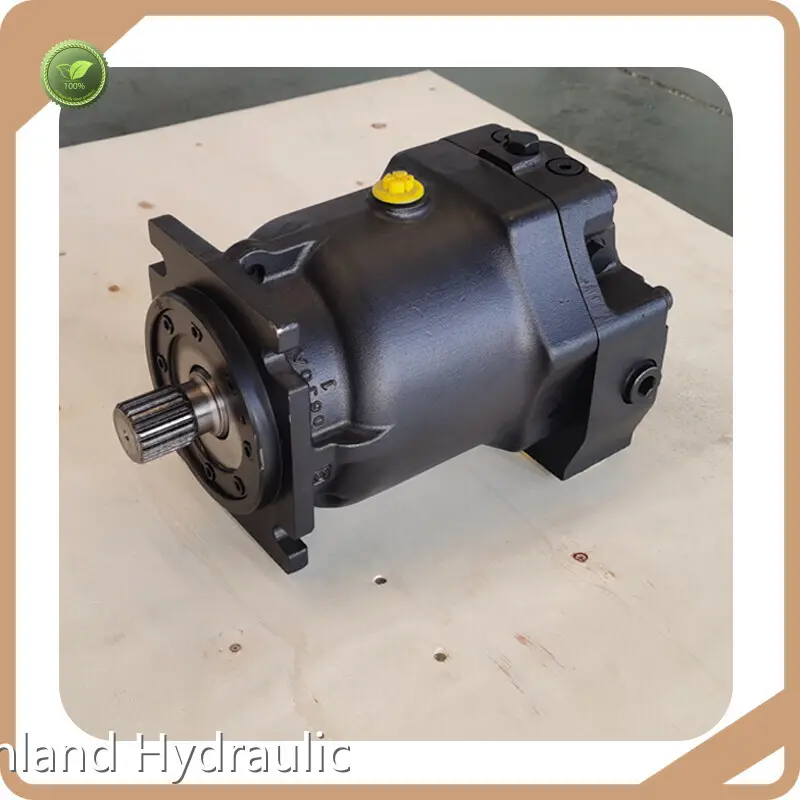

HIGHLAND HMF110 HYDRAULIC MOTOR

Fixed displacement hydraulic motor for closed loop operation

Products Advantages

HMF110 axial piston motor is widely used in heavy-duty fields such as engineering machinery, ship propulsion,

mining equipment, etc. It has the characteristics of strong reliability and long service life.

Hydraulic Solutions CE ISO9001 - - Highland Hydraulic 8

Product Design

Delivers up to 3800 r/min to meet demanding applications.

Hydraulic Solutions CE ISO9001 - - Highland Hydraulic 9

Low price

We promise the lowest price for new products of the same variety in the world

Hydraulic Solutions CE ISO9001 - - Highland Hydraulic 10

Simplified External Design

Integrated rear cover with protection and wash valves, reducing external setup.

Universal Mounting Compatibility

International standards for installing flanges, shafts, and ports

Product Application

HMF110 hydraulic piston motor is widely used in hydraulic devices of heavy machinery, tractors, agricultural machinery, and construction machinery.

Asphalt side feeder machine

harvester

rice harvester

Hydraulic walking rice harvester

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3200	3200	3200	3000	2700	2700
	Maximum operating speed (instantaneous)	r/min	3800	3500	3200	3200	2900	2900
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	38
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant 0.25, Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	143	248	334	430	526	621
Torque	Maximum output torque	Nm	167	278	390	502	613	725
Power	Maximum power	KW	56	93	131	157	180	212
Temperature	Allowable temperature of shell	℃	-40 to 50
Temperature	Maximum operating temperature of fuel tank	℃	80
Weight	HMF series hydraulic motor Hydraulic oil drainage	kg	22	23	33	34	36	38

HMF30（50）

PDF

HMF70（90）

PDF

HMF110（130）

PDF

KEY PARAMETERS

Displacement (ml/r): 30, 50, 70, 90, 110, 130
Rated pressure (Mpa): 35
Max. pressure (Mpa): 38

Typical Applications

Hydraulic Drive Forklifts
Skid Steer Loaders
Agricultural and Forestry Machinery
Any closed-circuit drive machinery

Hmf110 related hydraulic components

HMF130 Hydraulic Motor

HPV90 Heavy Duty Hydraulic Motor

HMF30 Fixed Displacement Hydraulic Motor

HYDRAULIC PUMP & MOTOR MANUFACTURER

Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydraulic pump 2.Hydraulic motor 3.Hydraulic test bench 4.Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=1000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
