Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Dimension(L*W*H)

53*34*43cm

Speed

2900r/min

Working Medium

Hydraulic Oil

Material

Cast Iron

Product details of the hydraulic solutions

Product Specification

Speed: 2900r/min

Dimension(L*W*H): 53*34*43cm

Working Medium: Hydraulic Oil

Material: Cast Iron

Product Overview

The design of Highland Hydraulic hydraulic solutions is the combination of functionality and aesthetics. The product has the guarantee of our know-how and internationally-certified quality. We can provide you one-stop solution and effective suggestions after you buy our hydraulic solutions.

Product Description

Compared with products in the same category, hydraulic solutions we produce is equipped with the following advantages.

Explosive HPV110 Variable Displacement Pump Manufacturer

Designed for hydraulic systems in harvesters and agricultural machinery

Suitable for static hydraulic drive of lifting, snow pressing, and construction machinery

Very suitable for agricultural machinery drive systems that require hydrostatic hydraulic pumps

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV110 variable displacement axial piston pump delivers precise hydraulic output suited to high-demand industrial systems.** Featuring robust piston-slipper assemblies and optimized swash plate angles, the HPV110 ensures stable pressure control, low pulsation, and reduced energy losses, maximizing system efficiency and reliability.

Product Features

Compact and efficient structure, designed for quick disassembly and easy maintenance.

Exceptional high-pressure resistance ensures stable long-term operation.

Capable of multi-pump serial configurations to flexibly meet complex working conditions.

Multiple control modes available: manual servo, electric proportional servo, and hydraulic servo.

Competitive pricing, committed to delivering maximum cost-effectiveness.

Product INTRODUCTION

HPV110 variable displacement axial piston pump offers advanced hydraulic solutions designed specifically for demanding industrial applications. Its precision-engineered swash plate mechanism and robust piston assemblies ensure accurate hydraulic flow, minimal pulsation, and enhanced operational efficiency, providing superior reliability and performance.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

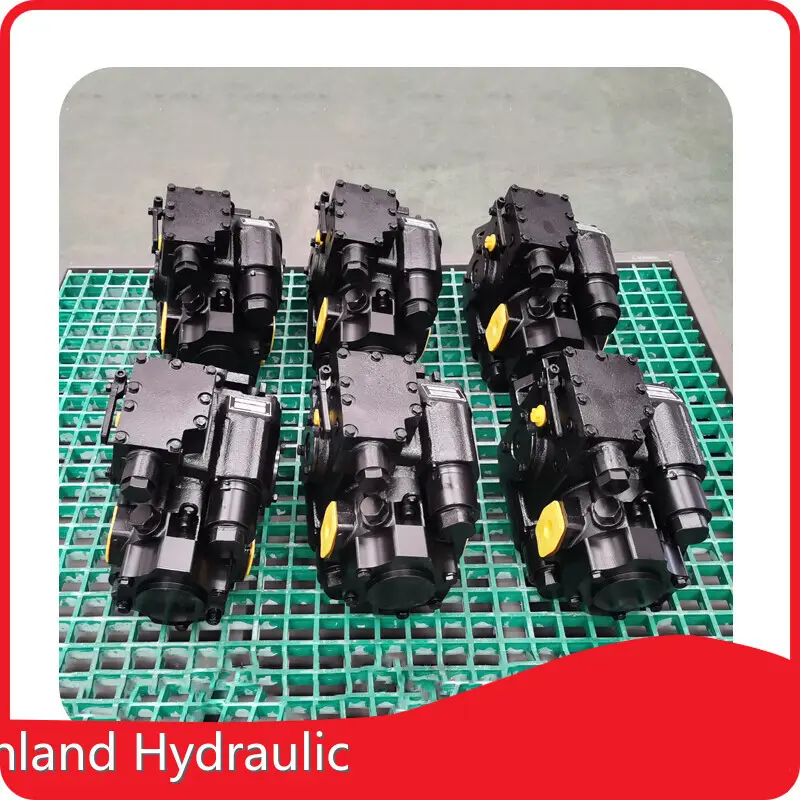

HPV110 Pump

Pump Manufacturer

Hydraulic Pump

HPV110 Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Advantages

Shandong Highland Hydraulic Seiko Co., Ltd is a modern enterprise. We are mainly dedicated to the business of Hydraulic pump、Hydraulic motor、Hydraulic test benches. Highland Hydraulic provides comprehensive and professional services such as design solutions and technical consultations based on the actual needs of customers. You are always welcomed for inquiry.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
