Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic 1

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic 2

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic 3

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic 4

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic 5

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic 6

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic 7

Hydraulic Solutions 30-60 Work Days by Highland Hydraulic

Packaging Details:

Plywood case

Delivery Time:

30-60 work days

Payment Terms:

T/T, Western Union

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Product Name

Variable Hydraulic Pump

Application

Harvesting machinery

Product details of the hydraulic solutions

Product Specification

Application: Harvesting machinery

Product Name: Variable Hydraulic Pump

Product Introduction

Highland Hydraulic hydraulic solutions uses high-quality raw materials and adopts advanced production technology. This product is strictly controlled by professional quality check team to avoid any flaws. hydraulic solutions is produced by professional technicians with quality guaranteed in Shandong Highland Hydraulic Seiko Co., Ltd.

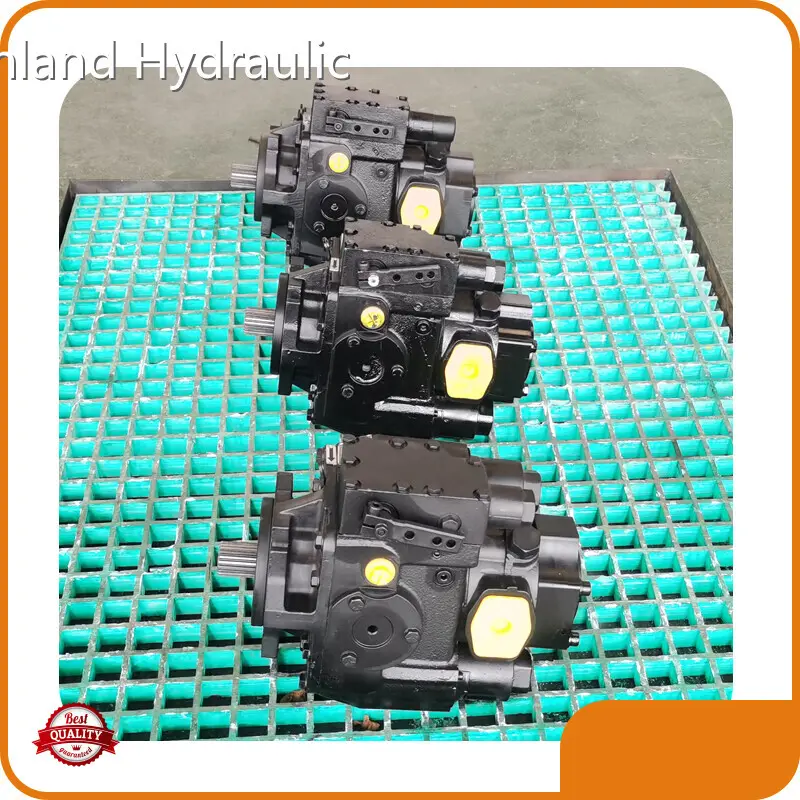

Best Selling Hydraulic Oil Pump HPV90 For Sugarcane Harvester

High-performance hydraulic oil pump designed for sugarcane harvesters.

Delivers reliable power, durability, and efficiency in the toughest agricultural conditions.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV90 Hydraulic Oil Pump is specially built for sugarcane harvesters, offering high-efficiency and strong hydraulic power. Its durable design handles the harsh conditions of agricultural work while ensuring long-term, low-maintenance performance in daily operations.

Product Features

HPV90 Hydraulic Oil Pump is engineered to meet the demanding requirements of modern sugarcane harvesting machinery.
With high volumetric efficiency and rugged construction, it ensures stable hydraulic performance and supports heavy-duty, continuous operations in harsh field environments.
Whether used for propulsion, steering, or lifting systems within the harvester, the HPV90 pump delivers consistent power output and smooth hydraulic control.
It’s the ideal choice for improving productivity in agricultural harvesting equipment.

Product INTRODUCTION

Designed for performance and durability, Highland HPV90 Hydraulic Oil Pump is ideal for use in sugarcane harvesters. It delivers high-pressure output with smooth hydraulic control, built to withstand continuous, high-load agricultural conditions. Reliable, efficient, and easy to install.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Hydraulic Oil Pump

Hydraulic Oil Pump HPV90

Harvester Hydraulic Oil Pump

Sugarcan Harvester Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Advantage

• Founded in Highland Hydraulic is now a leading enterprise in the industry after years of laborious development and innovation.
• Our company has a professional R&D team and a high-quality production team, and they are the strong backing for our development. Our team members are experienced and innovative, for they are engaged in production for many years.
• With a broad market, Highland Hydraulic's Hydraulic pump、Hydraulic motor、Hydraulic test benches are sold well in various regions in the country. They are also favored by many foreign customers.
• We are willing to serve the vast number of consumers and the market in the principle of mutual benefit and credibility first!
We are waiting for consulting from new and old customers!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
