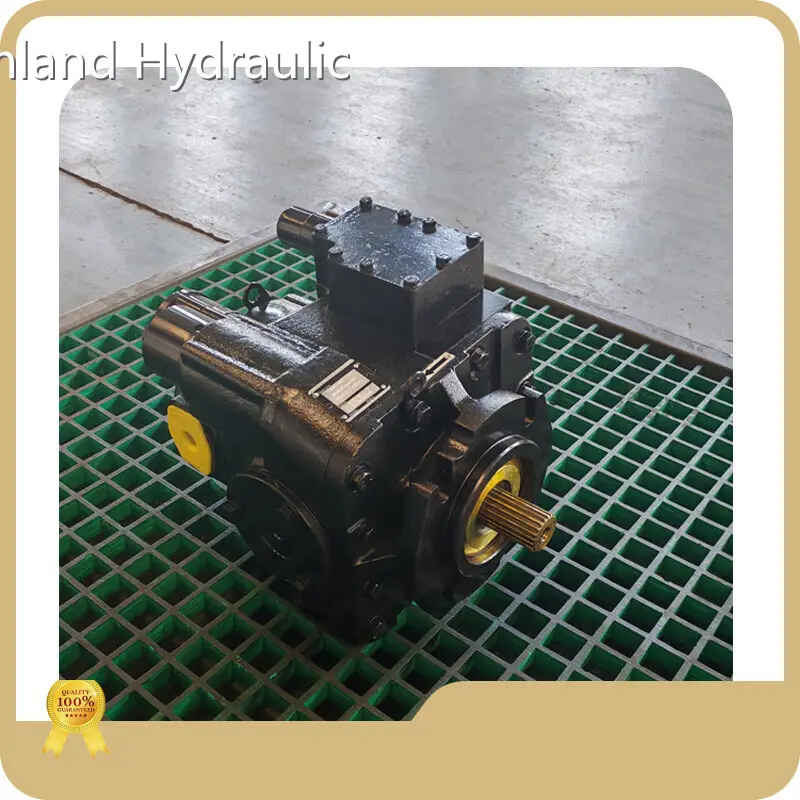

Product details of the closed circuit piston pump

Product Introduction

Our pattern designs for closed circuit piston pump are diverse and you can compose a variety of patterns. The product has been rigorously inspected and tested and proved to be of long-lasting performance and good durability. Available in multitude of ravishing designs & sizes, it is highly utilitarian as well as applicable.

High Efficiency Piston Plunger Pumps For Transit Mixer

Highland piston plunger pumps for transit mixers, providing steady hydraulic power, reduced energy use,

and excellent performance in tough construction environments.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high-efficiency piston plunger pumps provides powerful, consistent hydraulic support for transit mixers. Built to operate continuously in harsh construction conditions, it enhances drum rotation efficiency and reduces fuel usage with minimal maintenance needs.

Product Features

High Efficiency Piston Plunger Pumps for Transit Mixers is engineered to meet the demanding needs of concrete transportation.
Highland Plunger Pumps ensures stable and high-pressure hydraulic output to power the rotation and tilt mechanisms of the mixer drum.
Piston Pumps enhanced sealing technology prevents leakage and minimizes wear, while the easy maintenance structure reduces downtime.

Product INTRODUCTION

Designed for transit mixers, Highland piston plunger pumps offers reliable hydraulic power with high volumetric efficiency. Its rugged build ensures performance in extreme conditions, while its compact design fits seamlessly into tight equipment layouts. Ideal for heavy-duty concrete transport.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Piston Pumps

Plunger Pumps

Piston Plunger Pumps

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine
