Long Service Life Achieved with PV Pump Components
Slipper retainer and spring sets designed to track at high acceleration.
Cylinder-block metallurgy resists fretting in heavy-duty cycles.
Inlet geometry supports aggressive ramp rates without vapor formation.
Torque-limiting control protects prime movers in variable-power systems.
Compatible with load-sensing valves for fuel/energy savings.
Fast Delivery Hydraulic Piston Pump
our advantage
Product Description
Equipped with advanced variable displacement control, HPV pumps adjust flow output according to system demand. This reduces unnecessary energy consumption and supports fuel-efficient operation in heavy machinery.
Product Features
- Multi-layer sealing technology minimizes leakage.
- Axial force balancing reduces bearing stress.
- Improved oil path design enhances flow efficiency.
- Supports multiple drive configurations for broad compatibility
Product INTRODUCTION
Highland hydraulic piston pump is an essential component for construction equipment, offering robust performance and efficiency. Built with advanced technology, it enhances operational reliability, reduces wear, and ensures smooth hydraulic power transmission. Designed for heavy-duty applications, it guarantees long-term functionality and minimal downtime.
PRODUCT SPECIFICATIONS
|
Rated |
|
20 |
22 |
23 |
110 |
|
|
Maximum displacement |
ml/r |
33.3 |
69.8 |
89 |
110.8 |
|
|
Speed |
Maximum continuous operating speed |
r/min |
3500 |
3200 |
2700 |
2700 |
|
Rated speed |
r/min |
2500 |
|
|||
|
Minimum continuous operating speed |
r/min |
500 |
|
|||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|
||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
|
|||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
|
|||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
|
|||
|
Torque |
Continuous output torque |
Nm |
162.3 |
342.6 |
432.9 |
535.3 |
|
Maximum output torque |
Nm |
227 |
480 |
606 |
749 |
|
|
Power |
Continuous Power |
KW |
41 |
98 |
128 |
137 |
|
Maximum power |
KW |
57 |
105 |
138 |
159 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|
||
|
Maximum operating temperature of fuel tank |
℃ |
70 |
|
|||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|
||
|
Weight |
PV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
63 |
79 |
79 |

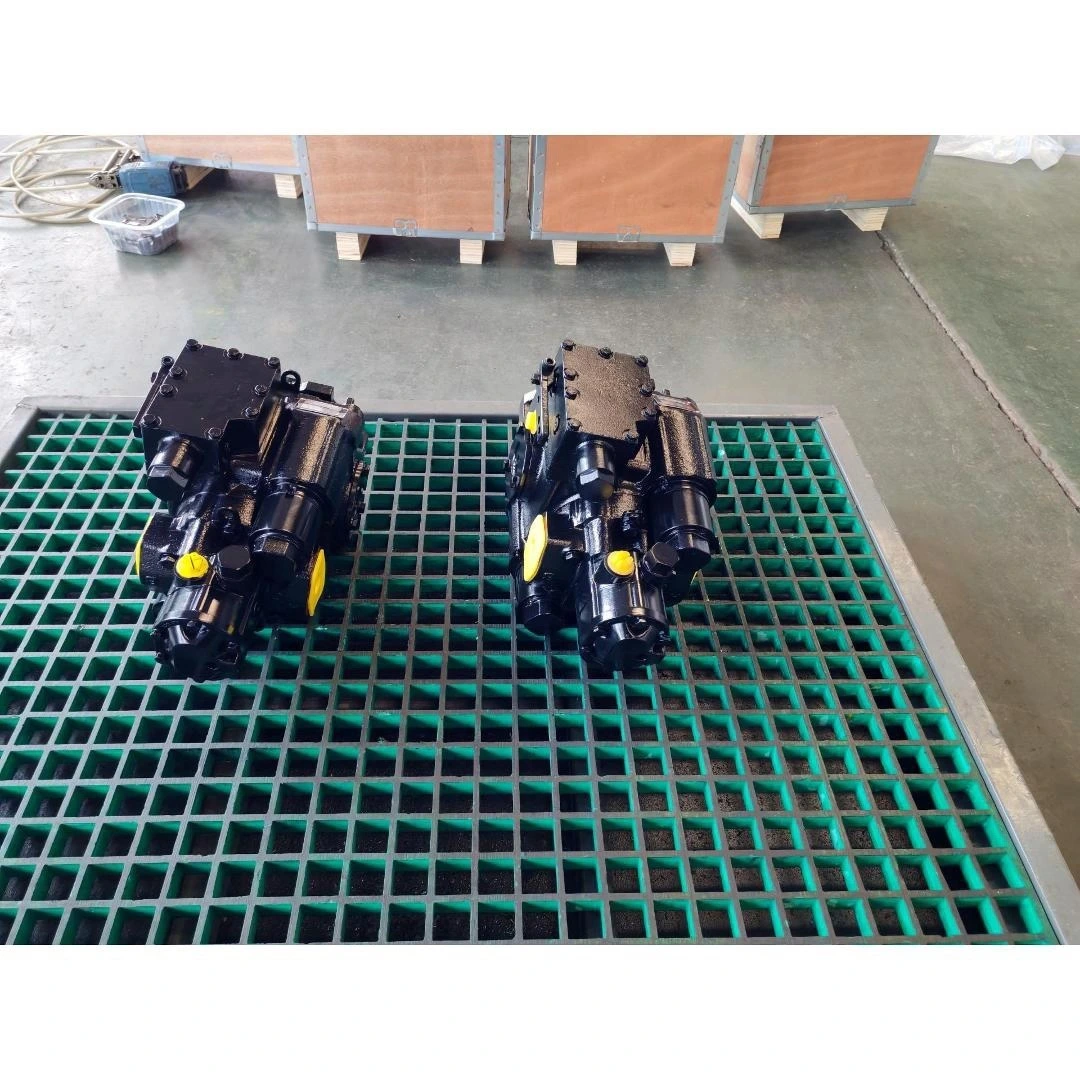

Product Details
Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.
Product Application
About Us
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.
Packing & Delivery
To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
