Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic 1

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic 2

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic 3

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic 4

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic 5

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic 6

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic 7

Closed Circuit Piston Pump Axial Piston Pump - - Highland Hydraulic

Delivery Time:

30-60 work days

Payment Terms:

T/T, Western Union

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Type

Axial piston pump

Pressure

42mpa

Working Medium

Hydraulic Oil

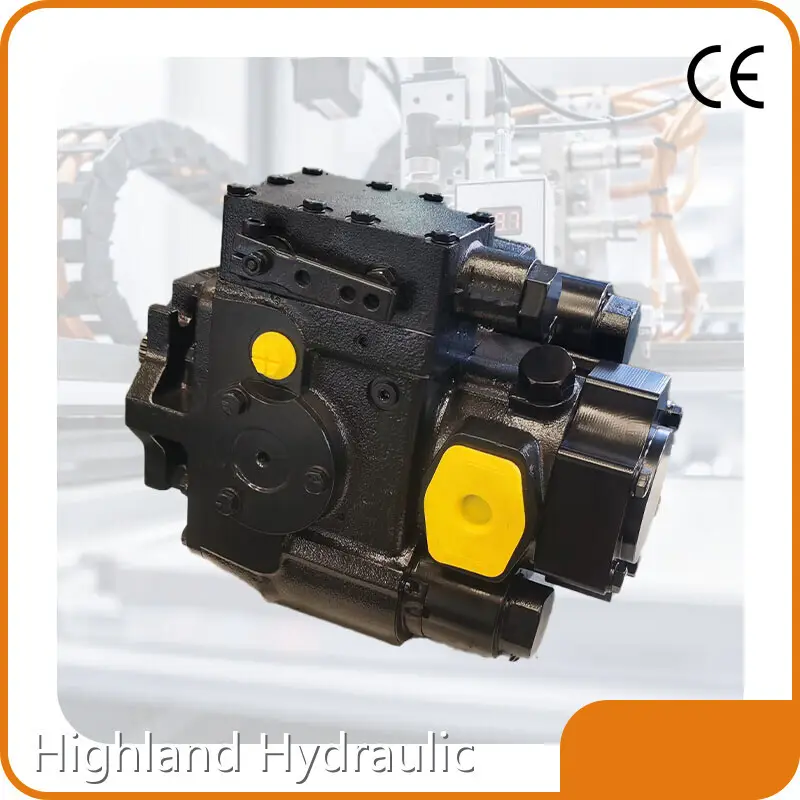

Product details of the closed circuit piston pump

Product Specification

Pressure: 42mpa

Working Medium: Hydraulic Oil

Type: Axial piston pump

Product Information

Our designers' great efforts in product innovation makes the design our Highland Hydraulic closed circuit piston pump rather innovative and practical. The quality control process prevents the defects of this product from evading detection. The marketing and service network of Shandong Highland Hydraulic Seiko Co., Ltd basically covers the national markets.

High Efficiency Hydraulic Axial Flow Pumps in Agricultural Equipment

High efficiency axial flow pump for agricultural use, offering consistent performance,

low energy consumption, and durability across farming operations.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland high efficiency axial flow pump delivers smooth, reliable hydraulic performance for agricultural machinery. It supports consistent pressure with lower energy consumption, helping maximize productivity in tractors, harvesters, and irrigation systems.

Product Features

Highland high-efficiency hydraulic axial flow pumps provide powerful, reliable hydraulic performance for a wide range of farming machinery.
From tractors and harvesters to sprayers and irrigation systems, axial piston pumps deliver consistent flow and pressure with minimal energy waste.
Hydraulic axial flow pump ensure smooth operation, reduce system noise, and extend equipment lifespan.

Product INTRODUCTION

Optimized for today’s agricultural machinery, our axial flow pumps provide high-efficiency performance with consistent flow, reduced energy loss, and dependable durability. Ideal for a wide range of field operations, from tillage to irrigation.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Axial Flow Pumps

Hydraulic Axial Piston Pumps

Agricultural Axial Flow Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Advantage

• Highland Hydraulic provides customers with a variety of reasonable services based on the principle of 'creating the best service'.
• Highland Hydraulic enjoys developed telecommunication and traffic convenience. The geographic location is superior and the natural conditions are good.
• Highland Hydraulic was established in In the past years, we have continuously improved the R&D capability and have accumulated industry experience. We are dedicated to providing more and better products and services.
• Highland Hydraulic has a professional team integrates management, R&D, production, inspection, marketing, and after-sales service. This lays a solid foundation for the development.
Look forward to working with you to create a better future.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
