Axial Piston Variable Pump HIGHLAND by Highland Hydraulic

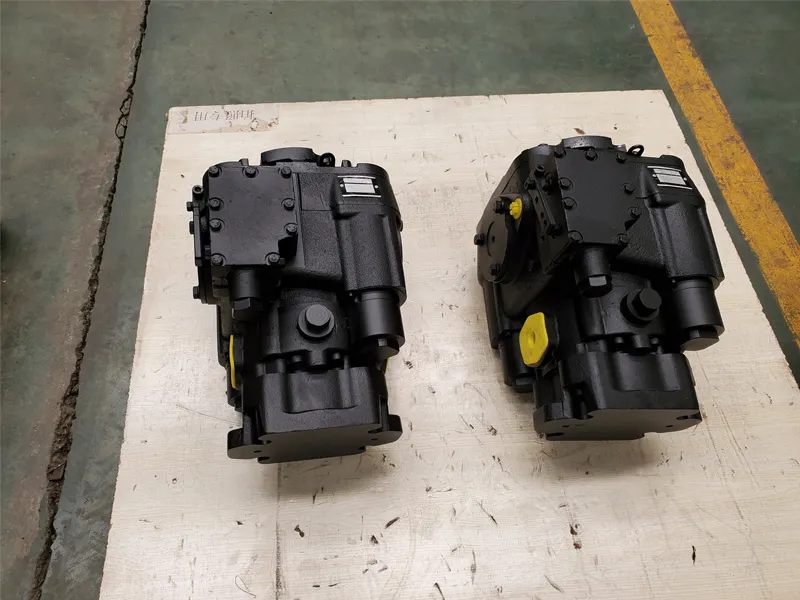

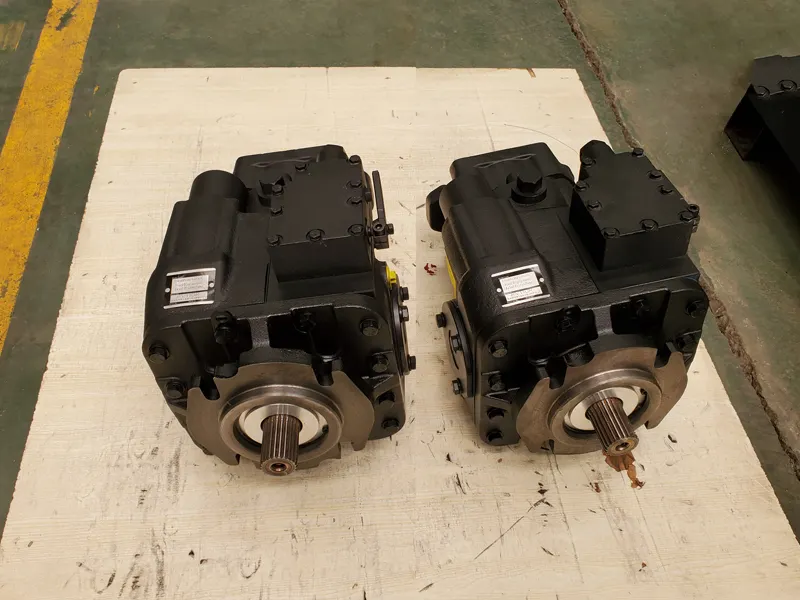

Product details of the axial piston variable pump
Product Specification
Product Name: HPV110 Hydraulic Pump
Brand: HIGHLAND
Function: Power components of hydraulic system
Characteristic: High efficiency
Speed: 3500r/min
Product Description
Shandong Highland Hydraulic Seiko Co., Ltd puts a new premium on material of axial piston variable pump. The optimum quality and excellent performance makes the product the most sought-after product. Shandong Highland Hydraulic Seiko Co., Ltd's good customer service enable it to guarantee total customer satisfaction.
LPV Series Hydrostatic Pump For Construction Machinery
Variable displacement hydraulic pump for closed loop operation
PRODUCT SPECIFICATIONS
|
Rated displacement |
|
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Maximum displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
|
Speed |
Maximum continuous operating speed (Full load condition) |
r/min |
3500 |
3500 |
3200 |
3000 |
2900 |
2700 |
|
Rated speed |
r/min |
2500 |
||||||
|
Minimum continuous operating speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Maximum working pressure (instantaneous) |
Mpa |
42 |
||||||
|
Continuous working pressure ( Δ P) |
Mpa |
30 |
||||||
|
Allowable shell pressure (absolute) |
Mpa |
Constant0.25，Peak value0.5 |
||||||
|
Torque |
Continuous output torque (Under continuous work pressure) |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Maximum output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous Power |
KW |
41 |
72 |
98 |
128 |
137 |
162 |
|
Maximum power |
KW |
57 |
87 |
105 |
138 |
159 |
188 |
|
|
Temperature |
Allowable temperature of shell |
℃ |
80 |
|||||
|
Maximum operating temperature of fuel tank |
℃ |
70 |
||||||
|
Angle |
Maximum inclination angle of the inclined plate |
° |
± 18 ° |
|||||
|
Weight |
HPV series hydraulic pump Hydraulic oil drainage |
kg |
45 |
46 |
63 |
64 |
87 |
87.5 |
Products Advantages
HPV series closed axial piston pump offers high efficiency, compact design, and long service life, making it the ideal choice for reliable hydraulic systems.
Product Application
The LPV series closed axial piston pump is ideal for applications requiring a reliable and efficient hydraulic power source. Whether it's for industrial machinery, construction equipment, or agricultural vehicles, this pump delivers outstanding performance in demanding environments.
LV90 Closed Axial Piston Pump - Compact Design
Product Description
Designed for challenging industrial environments,HPV110 pump integrates precise axial piston displacement technology. Its optimized rotating group and reinforced bearing arrangement reduce internal leakage and vibration, providing smooth, stable fluid delivery while significantly enhancing overall hydraulic system performance.
Product Details
Its closed axial piston design, it provides reliable performance and long service life. Its compact size makes it ideal for installations where space is limited.
Features
Simplified structure allows easy dismantling, significantly reducing maintenance costs.
Versatile control options: manual, electric, and hydraulic modes easily switchable.
Superior pump body design capable of handling extreme operational conditions.
International standard interfaces ensure excellent compatibility and universality.
Flexible customization options tailored to customer-specific needs.
Product Application
LPV70 Closed Axial Piston Pump is designed for compact spaces and operates efficiently. It is ideal for use in hydraulic systems requiring high pressure and minimal noise output. This pump is suitable for various industrial applications, such as agriculture machinery.
About Us
Shandong Highland Hydraulic Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
