Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic 1

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic 2

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic 3

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic 4

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic 5

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic 6

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic 7

Axial Piston Pump Price Hydraulic Oil Wholesale - Highland Hydraulic

Payment Terms:

T/T, Western Union

Inquiry

Hydraulic Pump Mode

HPV90

Function

Power components of hydraulic system

Displacement

90ml/r

Working Medium

Hydraulic Oil

Product details of the axial piston pump price

Product Specification

Hydraulic Pump Mode: HPV90

Function: Power components of hydraulic system

Working Medium: Hydraulic Oil

Displacement: 90ml/r

Product Introduction

Unique texture of axial piston pump price gives a different visual experience. The product is gradually developed into the representative of high quality. Our QC team are strict with quality checking for axial piston pump price to ensure high quality.

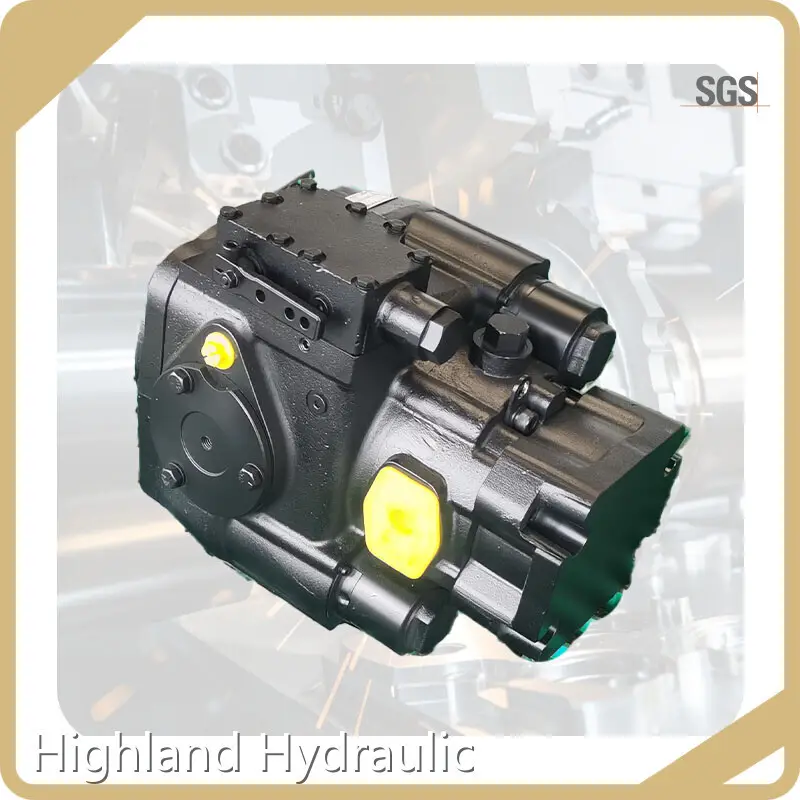

Hydraulic Variable Displacement Piston Pump

With Multiple Control Modes

Hydraulic Variable Displacement Piston Pump offers precise control, high efficiency, and multiple control modes.

Designed for industrial and mobile applications, it ensures smooth operation, energy savings, and long-term durability.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Hydrostatic pump features variable displacement capabilities, allowing precise flow control for efficient power management. With multiple control modes, it adapts to different system requirements, ensuring optimal performance. Its robust construction enhances durability, while advanced technology reduces noise and improves efficiency. Suitable for industrial and mobile applications, it offers smooth and reliable operation.

Product Features

Hydraulic Variable Displacement Piston Pump is engineered for superior performance, allowing adjustable flow rates and pressure settings to meet diverse hydraulic system requirements.
With multiple control modes, including pressure, load-sensing, and electronic control, it enhances efficiency and flexibility.
Its high-quality construction ensures durability, reduced energy consumption, and smooth operation.
Variable displacement hydraulic pump is widely used in construction machinery, industrial automation, and hydraulic power systems.

Product INTRODUCTION

Designed for demanding hydraulic applications, this variable displacement piston pump provides exceptional efficiency, adaptability, and control. It features multiple control modes, ensuring precise operation and energy savings. With a strong, durable design, it is ideal for industrial machinery, construction equipment, and hydraulic power systems.

Hydraulic Variable Displacement Piston Pump

Product specification

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

Hydraulic Piston Pump

Variable Displacement Piston Pump

Variable Displacement Hydraulic Pump

Hydraulic Variable Displacement Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Advantage

• Highland Hydraulic has a development team with many years of technical experience, and the team members have strong industrial logic thinking and industry experience, providing a strong guarantee for our development.
• Superior geographical location, traffic convenience, and developed communication create a good external environment for Highland Hydraulic's development.
• Our company was founded in and has had a long history of development for years. We have accumulated rich production experience.
Please leave your contact information. Highland Hydraulic will contact you as soon as possible and provide satisfactory Hydraulic pump、Hydraulic motor、Hydraulic test benches for you.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
