Company Advantages

· Shandong Highland Hydraulic Seiko Co., Ltd uses high quality axial piston pump price as main material.

· Cusomers in the industry greatly rely on the product for its stable performance and long service life, delivering more economic benefits.

· Due to these features, it has been widely used in many applications.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV70 axial piston pump sets the standard for reliable, continuous hydraulic performance. Its optimized structure ensures high efficiency, precise control, and durability, making it an excellent choice for industrial and mobile hydraulic systems that require consistent operation and minimal downtime.

Product Features

• HPV70 axial piston pump delivers exceptional performance and reliability.
• Utilizing advanced hydraulics, it achieves precise fluid control, high efficiency, and consistent power output.
• Precision-engineered components ensure smooth, quiet, and stable performance under prolonged operation.

Product INTRODUCTION

HPV70 series is optimized for superior operational efficiency, featuring precision-machined components that reduce internal friction and energy loss. This efficiency translates to lower operating costs and improved productivity in heavy-duty applications.

Product specification

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

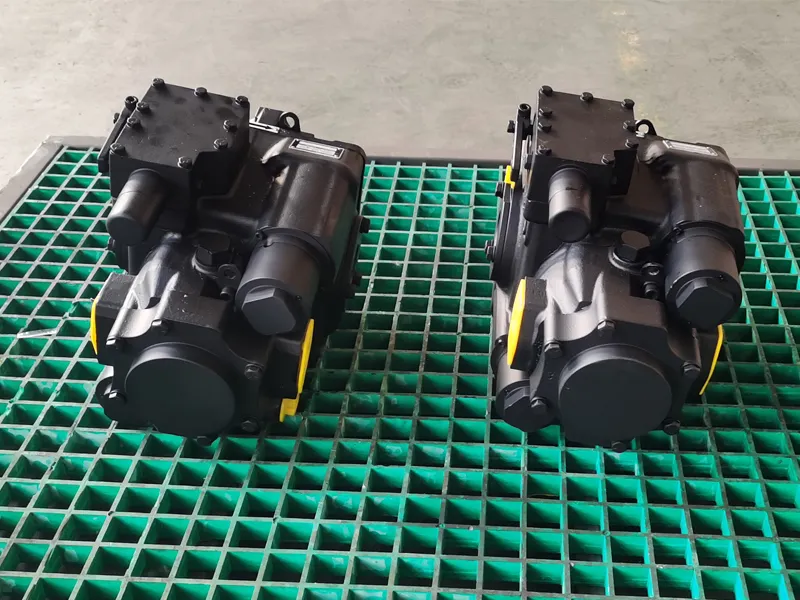

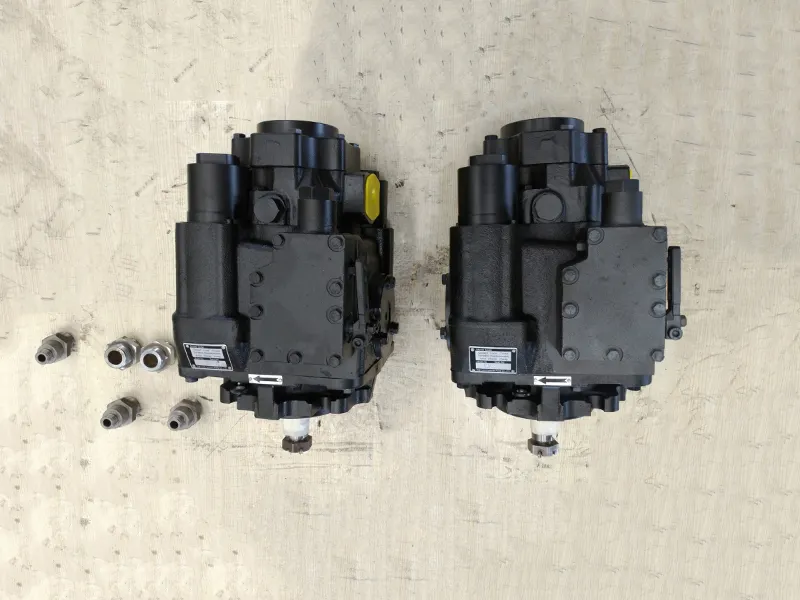

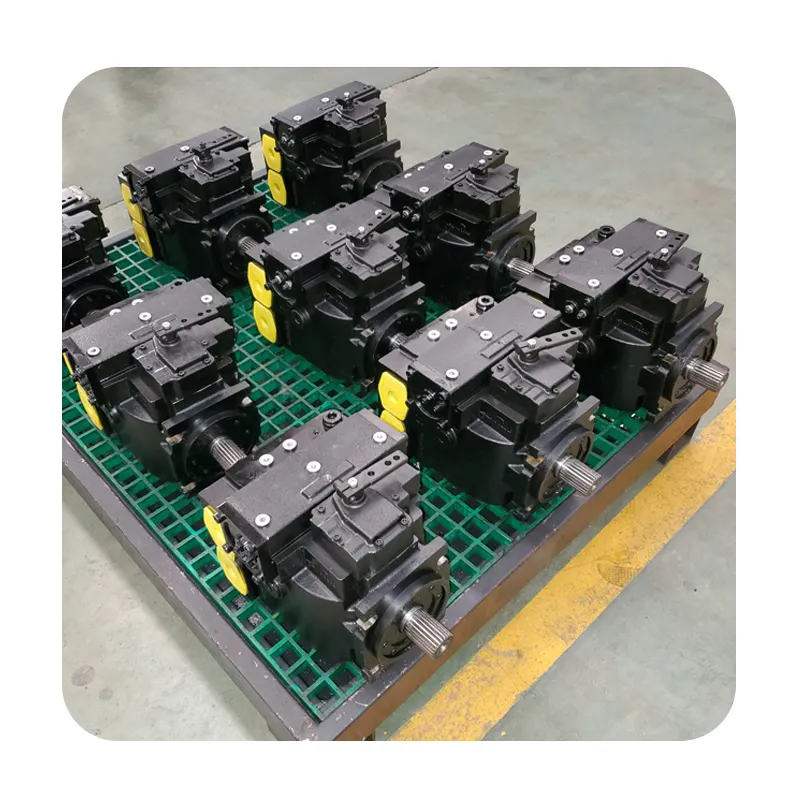

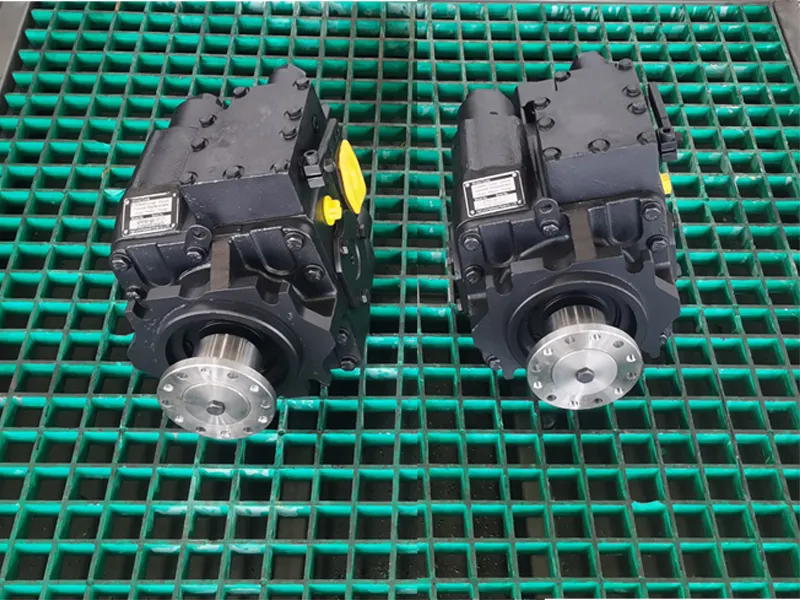

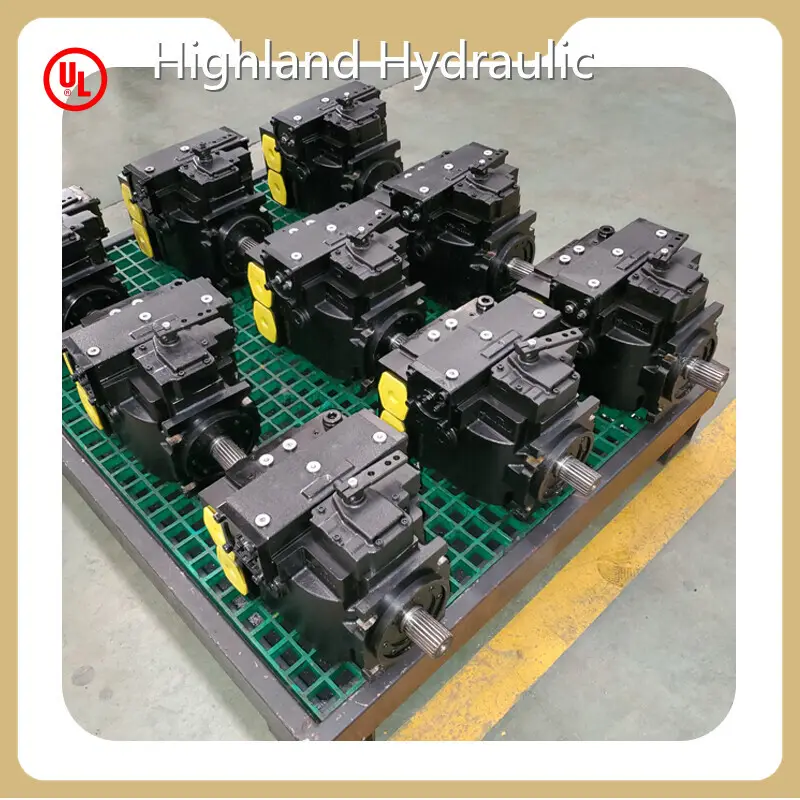

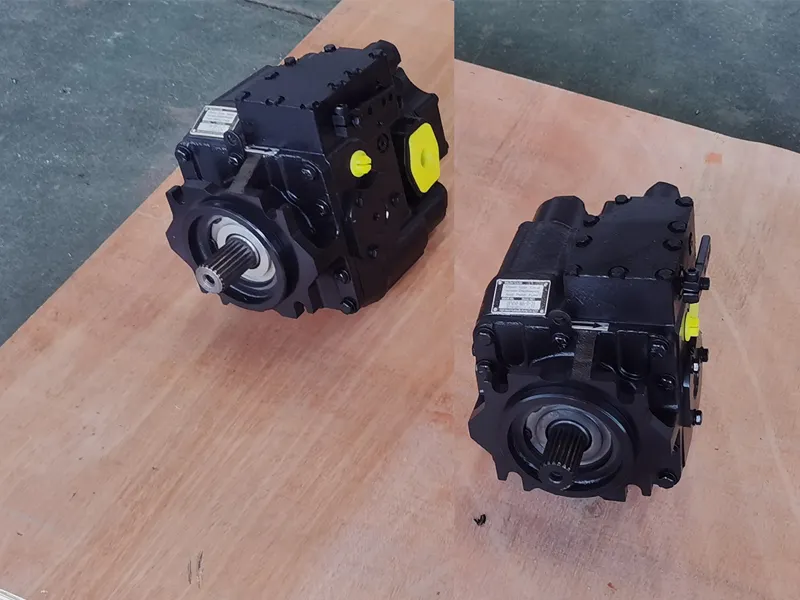

High Pressure Axial Piston Pump

HPV70 Hydrostatic Piston Pump

High Pressure Axial Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Features

· The Highland Hydraulic brand is now among the best in the axial piston pump price industry.

· We offer specialist education to managers, encourage employees to obtain trade skill qualifications. They are able to provide a wide range of creative proposals for improving production. Such efforts contribute to the stable supply of high-quality products. We have optimized our process management systems, which can improve productivity and maximize quality. This means the monthly output can be guaranteed.

· We adopt an environmentally friendly production strategy. With regard to resource uses, we will resort to cutting-edge manufacturing machines to fully utilize resources at disposal as well as to reduce wastes.

Product Details

Adhering to the concept of 'details and quality make achievement', Highland Hydraulic works hard on the following details to make the axial piston pump price more advantageous.

Enterprise Advantages

Highland Hydraulic has an experienced team to have in-depth research on major enterprises in the industry and to meet customer demand.

We always render our customers with advanced technical support and sound after-sales service.

Based on the business philosophy of 'being honest and trustworthy, customer first, keeping pace with the times', our company carries forward the enterprise spirit of 'gratitude, dedication and devotion'. We take talent as the foundation, market as the guide and technology as methods to accelerate industrial upgrading. We also strive to build a first-class brand and become a well-known leader in the industry.

Highland Hydraulic was founded in In the years, we became more courageous to march forward, and proudly gained many achievements.

The sales network of our products is spread all over the world.
