Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

Axial Displacement Pump Western Union - - Highland Hydraulic-1 1

Axial Displacement Pump Western Union - - Highland Hydraulic-1 2

Axial Displacement Pump Western Union - - Highland Hydraulic-1 3

Axial Displacement Pump Western Union - - Highland Hydraulic-1 4

Axial Displacement Pump Western Union - - Highland Hydraulic-1 5

Axial Displacement Pump Western Union - - Highland Hydraulic-1 6

Axial Displacement Pump Western Union - - Highland Hydraulic-1 7

Axial Displacement Pump Western Union - - Highland Hydraulic-1

Packaging Details:

Plywood case

Payment Terms:

T/T, Western Union

Inquiry

Pressure

42mpa

Brand

HIGHLAND

Mode

HPV30|HPV50|HPV70|HPV90|HPV110|HPV130

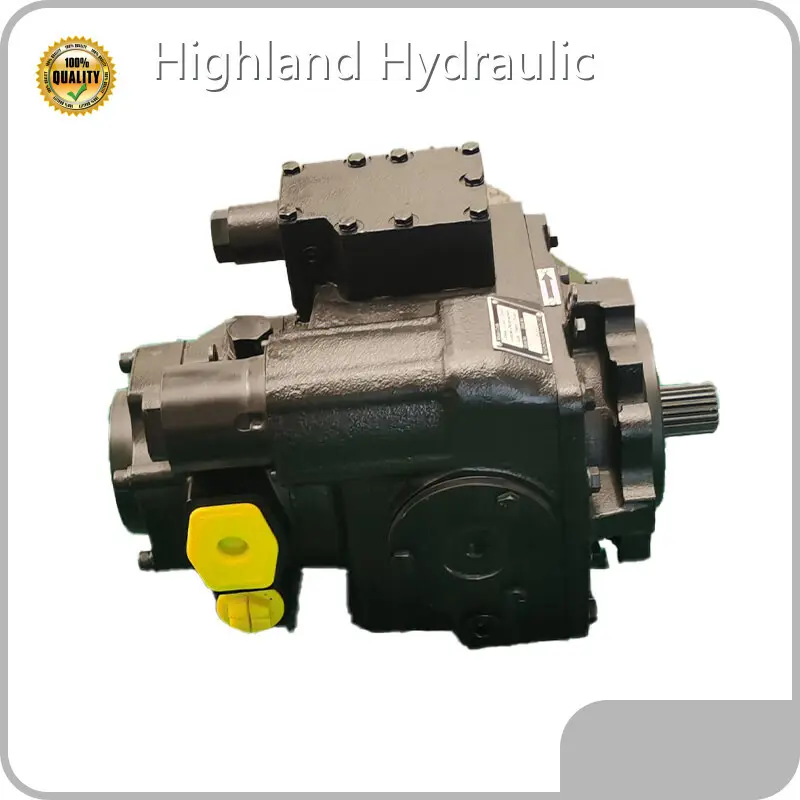

Product details of the axial displacement pump

Product Specification

Mode: HPV30|HPV50|HPV70|HPV90|HPV110|HPV130

Pressure: 42mpa

Brand: HIGHLAND

Product Overview

The production process of Highland Hydraulic axial displacement pump has been standardized by using the advanced technology. Backed by our rich industry expertise in this field, the product is manufactured in its best quality. Shandong Highland Hydraulic Seiko Co., Ltd sets deep root in axial displacement pump market successfully mainly for its high quality.

Product Information

Compared with similar products on the market, the axial displacement pump of Highland Hydraulic has the following advantages.

Sugarcane Harvester Closed Circuit System

Hydraulic Piston Pump For Sale

Hydraulic piston pump with a closed circuit system is designed for sugarcane harvesters,

offering high efficiency, durability, and reliable performance in the harsh conditions of sugarcane fields.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Hydraulic piston pump is specifically designed for sugarcane harvesters, ensuring smooth and efficient operation in the harvesting process. The closed circuit system provides optimal power and control for various functions within the harvester. It’s durable, efficient, and built to handle the tough conditions of the field, helping increase productivity and reduce downtime.

Product Features

Sugarcane Harvester Closed Circuit System Hydraulic Piston Pump is engineered to enhance the functionality of modern sugarcane harvesters.
With a robust design, our piston pump ensures smooth and efficient hydraulic operation, providing the necessary power to control various systems within the harvester.
It is built to withstand the harsh environments of sugarcane fields, offering high durability and minimal maintenance.

Product INTRODUCTION

Designed for sugarcane harvesters, hydraulic piston pump offers a closed circuit system for smooth, high-efficiency performance. Built to withstand demanding field conditions, it ensures reliable power for multiple functions within the harvester. The robust design enhances the overall performance of the harvesting machine, improving productivity while reducing maintenance.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Download FIle

PDF

Download FIle

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Closed Circuit System

Harvester Hydraulic Piston Pump

Closed Circuit Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Introduction

Shandong Highland Hydraulic Seiko Co., Ltd is a company in de zhou. The main business is focused on Hydraulic pump、Hydraulic motor、Hydraulic test benches. With the main focus on people and quality, Highland Hydraulic is dedicated to providing quality products and sincere services. It is our honor to be customers' trusted partners. Our company is equipped with an independent R&D technical team. Based on that, we are capable of providing effective solutions for different customers. Highland Hydraulic always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
