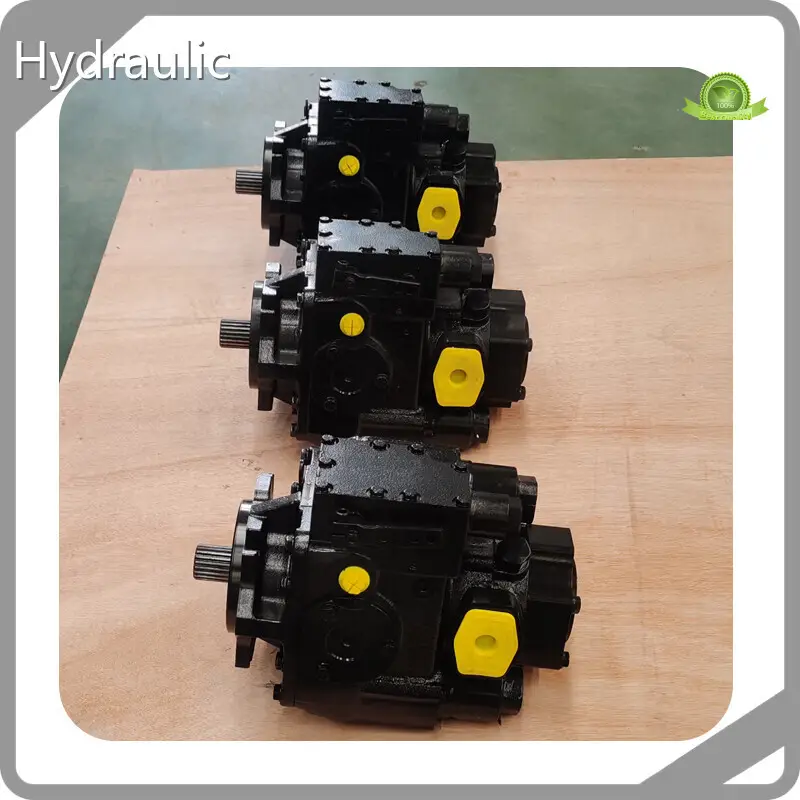

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic 1

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic 2

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic 3

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic 4

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic 5

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic 6

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic 7

Axial Displacement Pump Plywood Case Wholesale - Highland Hydraulic

Packaging Details:

Plywood case

Inquiry

Product Name

Variable Hydraulic Pump

Type

Axial piston pump

Brand

HIGHLAND

Material

Cast Iron

Product details of the axial displacement pump

Product Specification

Material: Cast Iron

Product Name: Variable Hydraulic Pump

Brand: HIGHLAND

Type: Axial piston pump

Product Description

Highland Hydraulic axial displacement pump is produced using optimum quality materials which we source from trusted vendors of the market. The product has satisfying functions that customers need and require. 'Customer Satisfaction' is the evaluation standard of axial displacement pump.

Best Quality Axial Flow Piston Pump hpv90 For Paver Machine

HPV90 axial flow piston pump is designed for paver machines, offering high efficiency, durability, and precise hydraulic control.

it ensures smooth paving operations and long-lasting performance in demanding construction environments.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

High-quality HPV90 axial flow piston pump is designed for paver machines, offering superior hydraulic efficiency and power. Its advanced design ensures precise fluid flow and optimal pressure control. Manufactured with durable, wear-resistant materials, the pump withstands heavy-duty applications. The compact and robust structure allows for easy installation and maintenance, while its energy-efficient operation helps reduce fuel consumption and overall running costs.

Product Features

HPV90 axial flow piston pump is a high-performance hydraulic component specifically designed for paver machines.
It provides precise fluid control, high-pressure capabilities, and exceptional durability, ensuring smooth and efficient paving operations.
With a compact and efficient design, the PV23 pump is easy to install and maintain, making it the perfect choice for construction professionals seeking reliability and performance.

Product INTRODUCTION

Built for demanding paving applications, HPV90 axial flow piston pump delivers unmatched efficiency, durability, and power output. Its advanced hydraulic design ensures smooth and stable operation, making it the ideal choice for paver machines requiring reliable and high-performance hydraulic solutions.

PRODUCT SPECIFICATIONS

Rated displacement			30	50	70	90	110	130
Rated displacement	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
Torque	Maximum output torque	Nm	227	353	480	606	749	885
Power	Continuous Power	KW	41	72	98	128	137	162
Power	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

Download FIle

PDF

Download FIle

HPV30(50)

PDF

HPV70(90)

PDF

HPV110(130)

PDF

detail displaY

Axial Piston Pump

Axial Flow Piston Pump

HPV90 Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of the HPV110 variable piston pump, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

Company Advantage

• Highland Hydraulic's Hydraulic pump、Hydraulic motor、Hydraulic test benches are sold in the domestic market. They are also exported to Europe, Africa, and Southeast Asia and other countries and regions.
• Our company has built up a comprehensive after sales service system. We are trying our best to provide timely, convenient and thoughtful consulting and service to answer customers' different doubts.
• It has been nearly years since Highland Hydraulic was established. Our company enjoys a good reputation in the industry for the exquisite production and processing technology.
Our products are guaranteed to be quality. Customers with needs are welcomed to contact us for purchase.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
