Axial Displacement Pump Plywood Case by Highland Hydraulic

Product details of the axial displacement pump

Product Specification

Speed: 3200r/min

Characteristic: High efficiency

Pressure: 42mpa

Operation Mode: Closed Circuit Hydraulic System

Product Introduction

This product is reliable, efficient, attractive, has flawless finishing and so many qualities. Professionals strictly control quality to ensure that products are always of the highest quality. We have many years of successful experience in manufacturing axial displacement pump.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

PV22 Axial Piston Pump is perfectly suited for concrete mixer trucks requiring high performance in compact spaces. Its robust, space-saving design ensures exceptional hydraulic efficiency, simple installation, and reduced maintenance efforts, making it ideal for demanding environments.

Product Features

• PV22 Hydraulic Axial Piston Pump is engineered precisely for concrete mixer trucks, delivering consistent hydraulic flow and exceptional operational stability under demanding workloads.
• Featuring advanced piston design, PV22 offers superior volumetric efficiency, significantly lowering fuel consumption and operational costs.
• Constructed using robust, corrosion-resistant materials, the PV22 pump ensures extended durability, providing reliable performance even under harsh environmental conditions.
• PV22 Hydraulic Piston Pump provides precise pressure control and smooth hydraulic responsiveness, ensuring consistently high productivity and optimal mixing quality.

Product INTRODUCTION

Purpose-built for high-pressure durability, the PV23 pump thrives under the relentless conditions typical in concrete mixer truck applications. Its sturdy construction and modular design make it a versatile choice, easily accommodating integration and ongoing maintenance within modern hydraulic systems.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

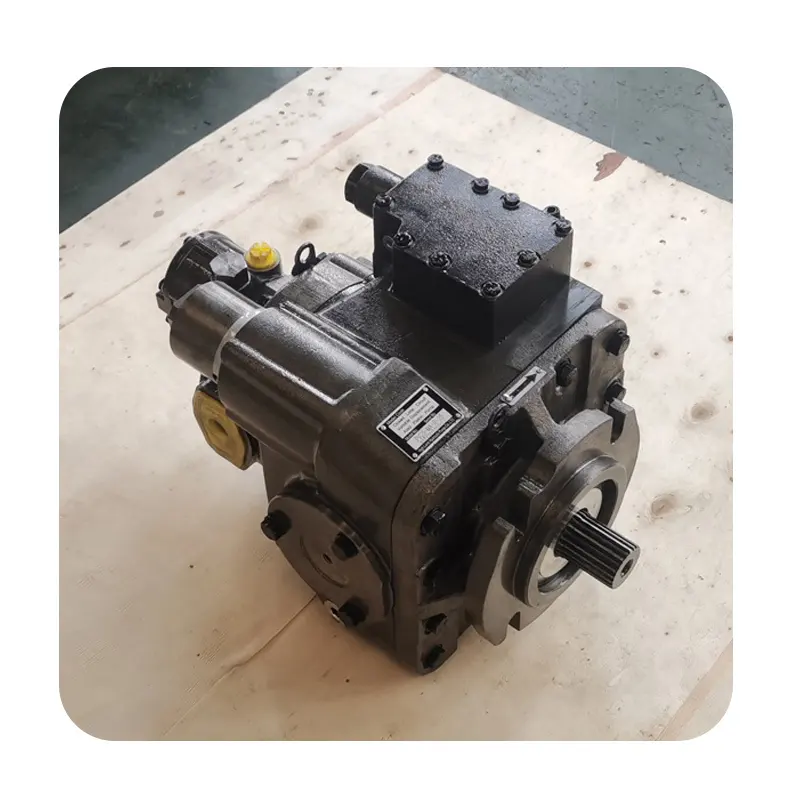

Hydraulic Pump PV22

Hydraulic Piston Pump PV22

Cement Mixer Hydraulic Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with nearly more than years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Feature

• Our sales network is spreading all over the country. We are dedicated to making it go global.
• Highland Hydraulic runs a comprehensive supply system and after-sales service system. We are committed to providing excellent service for the majority of customers.
• Highland Hydraulic's experienced experts and technical teams constantly improve and innovate our products. The product quality is guaranteed by the modern factory and professional production staff.
• Highland Hydraulic's location enjoys advantageous geographic condition with open and unimpeded traffic access. This creates convenience for us to deliver various Hydraulic pump、Hydraulic motor、Hydraulic test benches in time.
Our products are guaranteed to be quality. Customers with needs are welcomed to contact us for purchase.
