Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves

Dedicated hydraulic test bench for repair is a high-efficiency detection equipment specially designed for the hydraulic component maintenance industry. Featuring a modular design concept, the system is equipped with high-precision sensors and an intelligent control system, capable of comprehensively performing performance tests on various components including hydraulic pumps, motors, and multi-valve assemblies. By simulating actual working conditions, it can quickly and accurately measure key parameters such as pressure, flow, rotational speed, and torque, while also offering endurance testing and leakage detection capabilities. The unit comes with an intuitive digital display and data logging function that automatically generates test reports, significantly improving repair quality verification efficiency and substantially reducing the risk of secondary failures. It is an ideal solution for hydraulic maintenance enterprises to enhance service quality and competitiveness.

MOQ:

1 sets

Price:

USD 30000-86800/set

Packaging Details:

Plastic film packaging

Delivery Time:

30-60 work days

Payment Terms:

T/T, Western Union

Supply Ability:

1 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Pressure

42mpa

Brand

HIGHLAND

Flow Rate

380L/min

Power

160KW

Test Bench Use

Repair

Test Element

Closed Pump Test,Open Pump Test, Oil Cylinder Test

Power Drive Mode

Electromotor

Speed Range

0-2500r/min

Working Medium

Hydraulic Oil

Warranty

1 Year

PRODUCT FEATURES

Quality Inspection (Production Verification): On the production line, it conducts rigorous performance tests on every hydraulic pump, motor, and valve before leaving the factory, ensuring they meet design specifications and national/international quality standards. It acts as the "final gatekeeper" for product quality.
Repair Verification: In repair workshops, it is used to diagnose faulty components and verify if their performance has been restored to acceptable levels after repair. It provides an objective assessment of repair quality, preventing post-installation failures and reducing the cost of rework and downtime.
R&D and Type Testing: During the product development phase, it is used to test the performance limits, reliability, and service life of new prototypes, obtaining critical data to optimize product design.
Performance Qualification & Acceptance: It is used for incoming inspection of products from suppliers or for performance evaluation of hydraulic components in old equipment, providing data support for condition monitoring and predictive maintenance.

Products Advantages

Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.

Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves 7

Energy-Saving Options

Includes test benches with electric or hydraulic energy recovery systems

Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves 8

Power Range

Available in 75KW, 160KW, 250KW, and 400KW options

Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves 9

High Load Pressure

Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L

Drive Options

Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive

Product sPECIFCATIONS

Our experts can help you find the perfect hydraulic testing equipment for your home.

Pressure	35mpa、42mpa
Flow Rate	380L/min 、450L/min、500L/min
Brand	HIGHLAND
Power	75kw、90kw、110kw、160kw、200kw、250kw、315kw
Test Element	Close pump test, Open pump, Low speed motor, Valve set, Cylinder
Power Drive Mode	Electromotor, Diesel engine drive, Hydraulic mortor, Power recovery
Speed Range	1000r/min、0-1500r/min、0-2500r/min、0-3500r/min
Display Mode	Locale(Withour Computer)、Computer (long-distance)
Working Medium	Hydraulic oil
Oil Tank Cubage	1300L、2000L

STANDARD TEST BENCH MODELS INCLUDE

Hydraulic Pump Test Bench

Hydraulic Motor Test Bench

Hydraulic Cylinder Test Bench

Valve Factory Test Bench

Transmission & Torque Converter Test Bench

Hydraulic pump maintenance test bench (3).jpg (2)

ADDITIONAL SHOWCASES

YST500Hydraulic Test Bench

HIGHLAND YST380 Hydraulic Test Bench

90kw Hydraulic Test Stand

HIGHLAND YST400 Hydraulic Universal Test Bench

All what you need to know about us

We are a professional manufacturer with over 20 years of experience in the hydraulic industry. As a trusted enterprise known for process quality and reliability, we pride ourselves on delivering excellence.

We have our own quality control team, equipped with highly skilled technicians and strong development capabilities, supported by a strict quality control system to ensure high standards.

We offer regular supply of individual products with immediate delivery and can customize products according to customer needs. We also provide a one-year warranty on hydraulic test benches.

Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves 16

With 22 years of experience

With over 22 years of experience in the hydraulic industry.

Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves 17

With 22 years of experience

The factory covers an area of more than 10,000 square meters.

Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves 18

With 22 years of experience

Direct factory sales ensure high quality, competitive prices, and fast delivery.

Dedicated Hydraulic Test System for Repair Workshops Covers Rapid Performance Testing of Common PumpsMotors, and Valves 19

With 22 years of experience

Custom hydraulic test benches are available according to customer requirements.

PRODUCT DISPLAYZoom in For Better Detail

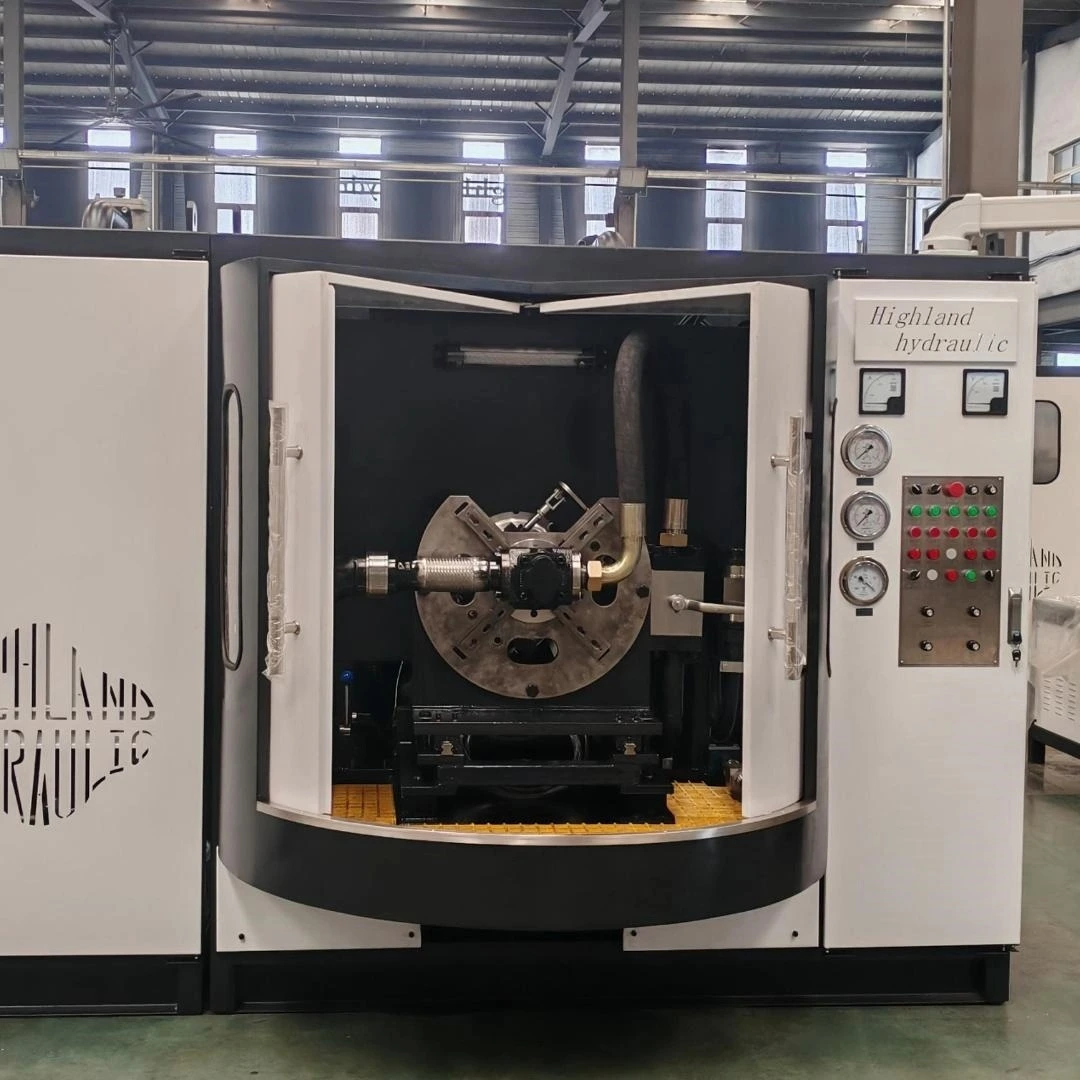

HIGHLAND YST380 Hydraulic Universal Test Bench

YST500 Closed pump test bench testing

HIGHLAND YST500 Hydraulic Cylinder Test Bench

Hydraulic motor maintenance test bench.jpg (2)

Product SPECIFICATIONS

Our experts can help you find the perfect hydraulic testing equipment for your home.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydraulic pump 2.Hydraulic motor 3.Hydraulic test bench 4.Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 30-60 work days

What is your terms of payment?

40% T/T in advance, balance before shipment.

What is the standard of package?

Plastic Film Packaging
