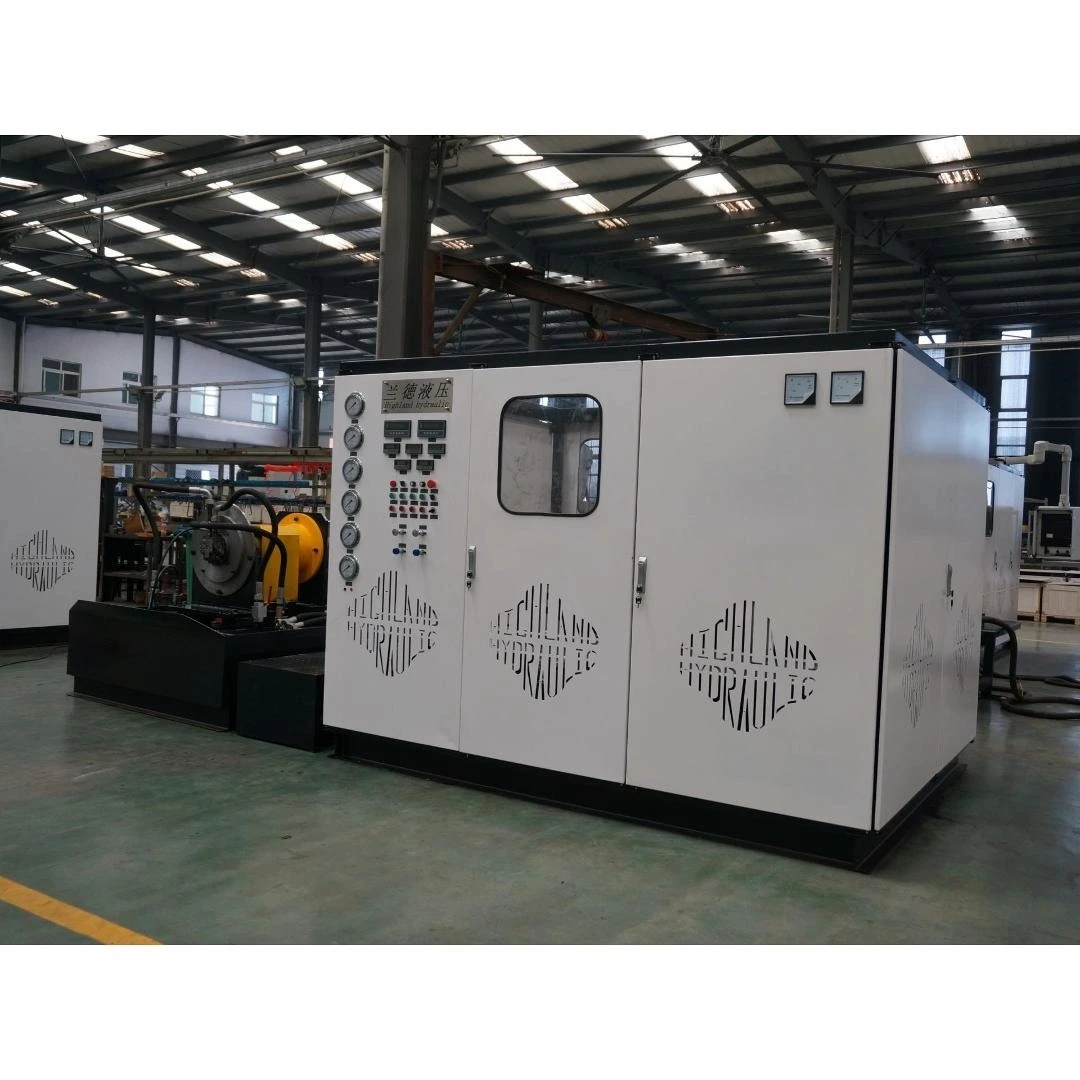

YST500 Hydraulic Repair Test Benches

YST500 Hydraulic Repair Test Bench is a professional-grade maintenance and testing equipment for hydraulic systems. Featuring a high-strength steel frame and modular design, it accommodates various hydraulic pumps, motors, valves and cylinders. Equipped with 0.1-class precision pressure sensors and flow meters, it offers a testing range of 0-50MPa pressure and 5-300L/min flow with ±0.5%FS accuracy. The intelligent control system integrates a 10.1-inch industrial HMI supporting parameter presetting, real-time monitoring, curve analysis and automated reporting. Dual safety protection including mechanical relief valves and electrical overload protection ensures CE compliance. Widely used in construction machinery, mining equipment and marine hydraulics maintenance, it provides an ideal testing solution for hydraulic repair businesses

Giá:

USD 30000-86800/set

chi tiết đóng gói:

Plastic film packaging

Delivery Time:

30-60 work days

Điều Khoản thanh toán:

T/T, Western Union

Khả Năng cung cấp:

1 sets per month

Giấy chứng nhận:

CE ISO9001

cuộc điều tra

Viết đánh giá

Tốc độ dòng chảy

380L/min

Điện

90KW

Sử dụng băng ghế thử nghiệm

Repair

Phần tử kiểm tra

Closed Pump Test,Low Speed Motor Test

Chế độ truyền động điện

Electromotor

Phạm vi tốc độ

0-1500r/min

Working Medium

Hydraulic Oil

Bảo hành

1 an

MULTI-VALVE HYDRAULIC TEST BENCH

Robust Construction

High-quality alloy steel welded frame withstands up to 50MPa
Anti-vibration design ensures long-term stable operation

Precision Measurement

0.1-class pressure sensors
High-response flow meters with ±0.5%FS accuracy
Multi-parameter monitoring (temp, speed, etc.)

Products Advantages

Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.

Energy-Saving Options

Includes test benches with electric or hydraulic energy recovery systems

Power Range

Available in 75KW, 160KW, 250KW, and 400KW options

High Load Pressure

Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L

Drive Options

Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive

Product sPECIFCATIONS

Our experts can help you find the perfect hydraulic testing equipment for your home.

Pressure	35mpa、42mpa
Flow Rate	380L/min 、450L/min、500L/min
Brand	HIGHLAND
Putere	75kw、90kw、110kw、160kw、200kw、250kw、315kw
Test Element	Close pump test, Open pump, Low speed motor, Valve set, Cylinder
Power Drive Mode	Electromotor, Diesel engine drive, Hydraulic mortor, Power recovery
Speed Range	1000r/min、0-1500r/min、0-2500r/min、0-3500r/min
Display Mode	Locale(Withour Computer)、Computer (long-distance)
Working Medium	Hydraulic oil
Oil Tank Cubage	1300L、2000L

STANDARD TEST BENCH MODELS INCLUDE

Hydraulic Pump Test Bench

Hydraulic Motor Test Bench

Hydraulic Cylinder Test Bench

Valve Factory Test Bench

Transmission & Torque Converter Test Bench

ADDITIONAL SHOWCASES

液压泵-低速大扭矩马达综合试验台~1

液压缸试验台2

液压马达试验台

液压缸试验台1~1

160KW试验台产品照片

大功率液压综合试验台

All what you need to know about us

We are a professional manufacturer with over 20 years of experience in the hydraulic industry. As a trusted enterprise known for process quality and reliability, we pride ourselves on delivering excellence.

We have our own quality control team, equipped with highly skilled technicians and strong development capabilities, supported by a strict quality control system to ensure high standards.

We offer regular supply of individual products with immediate delivery and can customize products according to customer needs. We also provide a one-year warranty on hydraulic test benches.

With 22 years of experience

With over 22 years of experience in the hydraulic industry.

With 22 years of experience

The factory covers an area of more than 10,000 square meters.

With 22 years of experience

Direct factory sales ensure high quality, competitive prices, and fast delivery.

With 22 years of experience

Custom hydraulic test benches are available according to customer requirements.

PRODUCT DISPLAYZoom in For Better Detail

Hydraulic test bench

Hydraulic testing platform

Hydraulic pump test bench

Product SPECIFICATIONS

Our experts can help you find the perfect hydraulic testing equipment for your home.

Citeşte mai mult

5bad7b1c9cfd5025

Citeşte mai mult

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydraulic pump 2.Hydraulic motor 3.Hydraulic test bench 4.Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 30 days

What is your terms of payment?

40% T/T in advance, balance before shipment.

What is the standard of package?

Plastic Film Packaging
