Tandem Hydraulic Pumps For Closed Circuit Hydraulic System

Tandem Hydraulic Pumps For Closed Circuit Hydraulic System

Optimized Tandem Design for Closed Circuit Systems: Highland Tandem hydraulic pumps are specifically engineered for closed circuit hydraulic systems, enabling multiple pump sections to work together while maintaining stable pressure and flow balance.
High Efficiency Power Transmission: Advanced internal design and precision manufacturing reduce internal leakage, improve volumetric efficiency, and ensure efficient power transfer within closed loop systems.
Compact Integration for Mobile Machinery: Highland tandem configuration significantly reduces installation space compared to separate pump units, making it ideal for compact mobile equipment layouts.
Stable Performance Under Variable Loads: Designed to operate reliably under changing load and speed conditions, ensuring smooth system response and consistent output in demanding applications.
Durable Construction and Long Service Life: High-strength materials, optimized lubrication, and strict quality control support long-term operation and reduced maintenance in closed circuit environments.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

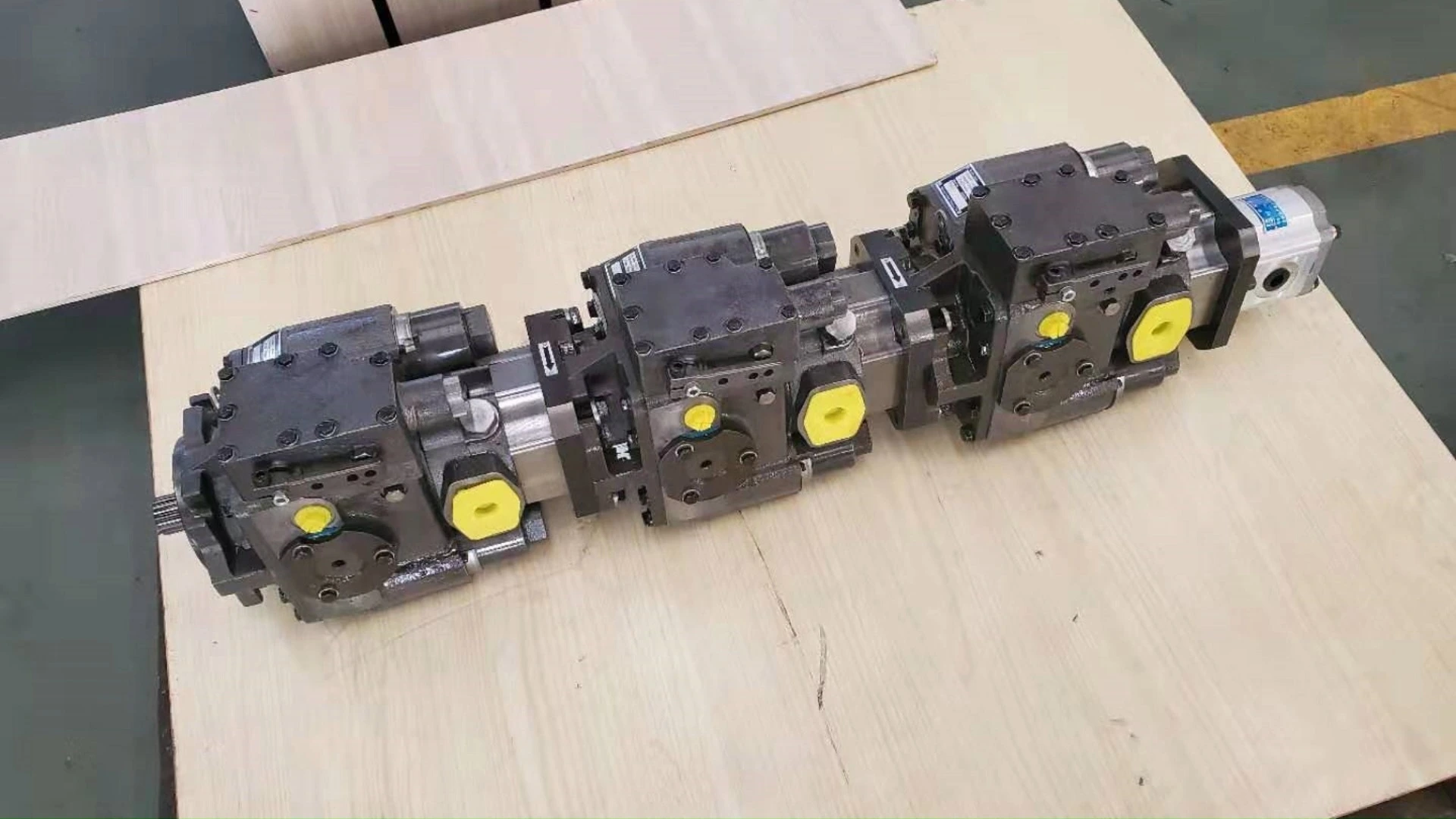

Tandem Hydraulic Pumps For Closed Circuit Hydraulic System

Highland Tandem hydraulic pumps for closed circuit systems deliver compact installation,

efficient power transmission, and reliable performance for advanced mobile hydraulics.

Corn Harvester Hydraulic Pump Motors System.jpg

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland Tandem hydraulic pumps play a vital role in closed circuit hydraulic systems where efficiency, compact design, and stable performance are critical. By combining multiple pump sections into a single tandem assembly, these systems enable flexible hydraulic power distribution while maintaining closed loop stability.

Product Features

Designed for high pressure operation, Highland tandem hydraulic pumps ensure efficient energy circulation between hydraulic pump and motor, reducing energy loss and improving system responsiveness.
Precision manufacturing and optimized internal flow paths support high volumetric efficiency and reduced heat generation.
Widely used in mobile machinery such as construction equipment, agricultural machines, and road machinery, Highland tandem hydraulic pumps provide a reliable and space-saving solution for modern closed circuit hydraulic systems.

PRODUCT INTRODUCTION

Highland tandem hydraulic pumps are engineered for closed circuit hydraulic systems, delivering efficient, reliable, and compact hydraulic power solutions. Designed for mobile machinery, they support stable operation and long service life under demanding conditions.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Mobile Hydraulic Pumps

Closed Circuit Hydraulic System

Tandem Hydraulic Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
