SPV22 Piston Pumps Supporting Demanding Mobile Applications

SPV22 Piston Pumps For Mobile Applications

SPV22 Piston Pumps Supporting Demanding Mobile Applications

Engineered for Demanding Mobile Applications: SPV22 piston pumps are specifically designed to operate reliably in demanding mobile environments, providing consistent hydraulic power for construction machinery, agricultural equipment, and other mobile systems.
Stable Flow and Pressure Performance: Advanced piston design ensures smooth flow delivery and stable pressure control, allowing equipment to perform efficiently under variable loads and changing operating conditions.
High Efficiency Hydraulic Design: Optimized internal geometry and precision-machined components reduce internal leakage and energy loss, improving volumetric efficiency and overall system efficiency.
Robust Construction for Harsh Conditions: Manufactured with high-strength materials, reinforced housing, and reliable sealing systems, SPV22 pumps withstand vibration, dust, temperature variation, and continuous duty cycles.
OEM-Oriented Integration Flexibility: Multiple displacement options, control types, and mounting configurations make SPV22 piston pumps easy to integrate into a wide range of mobile hydraulic system designs.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

SPV22 Piston Pumps Supporting Demanding Mobile Applications

Highland SPV22 piston pumps engineered for demanding mobile applications, delivering stable performance,

high efficiency, and reliable hydraulic power.

Closed Loop Hydraulic Pump Motor System.jpg

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland SPV22 piston pumps provide reliable hydraulic power for demanding mobile applications. Stable flow, high efficiency, and durable construction ensure dependable performance in harsh operating environments.

Product Features

Highland SPV22 piston pumps are developed to support demanding mobile applications where reliability, efficiency, and durability are essential.
Designed for continuous operation under variable loads, Highland SPV22 hydraulic pumps deliver stable hydraulic power for mobile machinery operating in challenging environments.
Through precision piston technology and optimized internal flow design, SPV22 pumps achieve high volumetric efficiency while maintaining smooth and controllable output.

PRODUCT INTRODUCTION

Highland hydraulic supply SPV22 piston pumps designed to meet the performance requirements of demanding mobile applications. Combining efficient hydraulic design with robust construction, Highland piston pumps deliver stable output, long service life, and flexible integration for mobile machinery systems.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

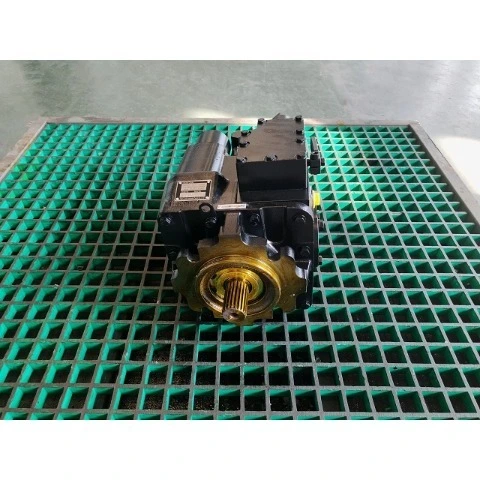

SPV22 Piston Pumps

Hydraulic Pumps for Mobile Applications

Mobile Hydraulic Pumps

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.
