Reliable Hydraulic Drive Solutions Hydraulic Power Pumps

Reliable Hydraulic Drive Solutions Hydraulic Power Pumps

High Efficiency Power Output: Engineered to deliver consistent and efficient hydraulic power, these pumps ensure optimized energy conversion with minimal losses, supporting demanding hydraulic drive systems across mobile machinery and industrial equipment.
Robust and Durable Construction: Manufactured using high-strength materials and precision machining processes, the hydraulic power pumps are built to withstand high pressure, continuous operation, and harsh working environments.
Stable and Smooth Hydraulic Performance: Advanced internal flow design ensures stable pressure and smooth flow delivery, reducing vibration and noise while improving system control accuracy and overall operational reliability.
Flexible System Integration: Designed for compatibility with a wide range of hydraulic drive configurations, including open-loop and closed-loop systems, allowing seamless integration into various machines and power units.
Low Maintenance and Long Service Life: Optimized sealing technology and wear-resistant components significantly reduce maintenance frequency, extend service intervals, and lower total operating costs over the equipment lifecycle.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

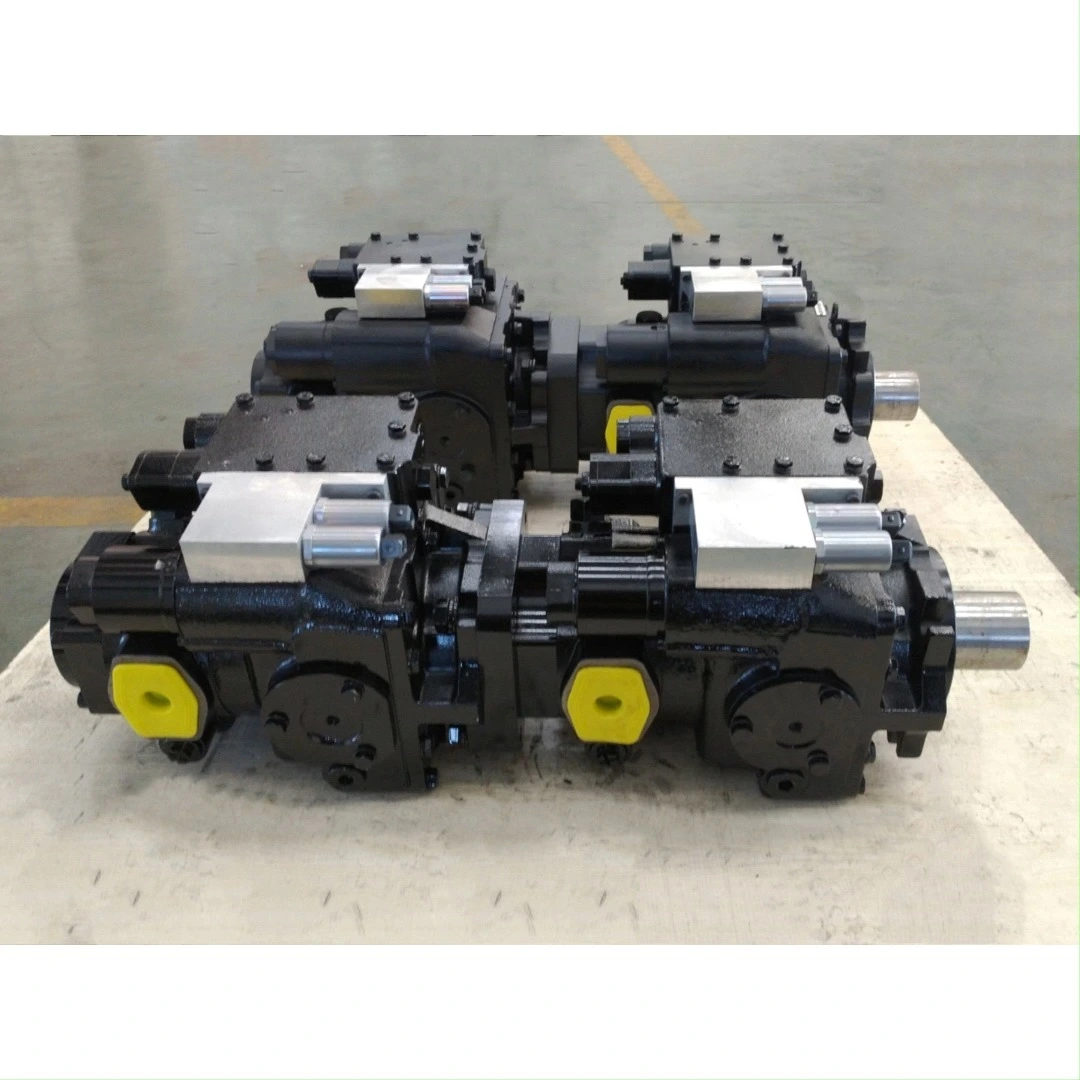

Reliable Hydraulic Drive Solutions Hydraulic Power Pumps

Highland Reliable hydraulic power pumps designed to deliver stable, efficient,

and durable hydraulic drive solutions for mobile machinery and industrial hydraulic systems.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland hydraulic power pumps provide reliable hydraulic drive solutions with stable pressure, high efficiency, and durable performance. Designed for demanding applications, they ensure smooth power transmission, reduced energy loss, and long service life in mobile and industrial hydraulic systems.

Product Features

Highland Reliable hydraulic drive solutions require dependable hydraulic power pumps that can operate efficiently under continuous load and varying working conditions.
Highland hydraulic power pumps are engineered to provide consistent pressure and flow, ensuring smooth power transmission for hydraulic drive systems.
With a focus on efficiency, durability, and system stability, they are suitable for mobile equipment such as construction machinery, agricultural machines, road equipment, and industrial hydraulic units.

PRODUCT INTRODUCTION

Highland Reliable hydraulic drive solutions depend on high-quality hydraulic power pumps that deliver consistent performance under pressure. These pumps are developed to meet the needs of modern hydraulic systems, combining efficient power output, robust construction, and flexible system compatibility. They are ideal for equipment requiring dependable hydraulic energy and long-term operational stability.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Drive Solutions

Hydraulic Power Pumps Motors

Hydraulic Pumps Motors Drive System

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.
