PV23 MF23 Axial Piston Pumps Motors Closed Loop Hydrostatic Drive

Axial Piston Pumps Motors Closed Loop Hydrostatic Drive

PV23 MF23 Axial Piston Pumps Motors Closed Loop Hydrostatic Drive

1. Optimized Closed Loop Hydrostatic Design: PV23 and MF23 axial piston pumps and motors are engineered specifically for closed loop hydrostatic drive systems, ensuring efficient power circulation, fast response, and stable performance under dynamic load conditions.

2. High Volumetric And Mechanical Efficiency: Precision-machined rotating groups, optimized port plates, and advanced sealing reduce internal leakage and friction, maximizing usable hydraulic output and minimizing energy loss.

3. Precise Speed And Torque Control: Variable displacement control enables smooth and accurate regulation of speed and torque, supporting precise vehicle motion, traction control, and smooth acceleration in mobile equipment applications.

4. Robust Construction For Heavy Duty Operation: High-strength housings, durable bearings, and wear-resistant components ensure reliable operation under high pressure, shock loads, and continuous duty cycles in demanding working environments.

5. System Compatibility And Integration Flexibility: PV23 and MF23 pumps and motors are compatible with a wide range of control options and auxiliary components, allowing easy integration into customized hydrostatic drive systems.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

PV23 MF23 Axial Piston Pumps Motors

Closed Loop Hydrostatic Drive

Highland PV23 and MF23 axial piston pumps and motors provide efficient, reliable closed loop hydrostatic drive performance

with precise control for mobile and heavy-duty machinery applications.

Variable Displacement Hydraulic Pumps Motors.jpg

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland PV23 and MF23 axial piston pumps and motors are designed for closed loop hydrostatic drive systems. They deliver high efficiency, stable pressure control, and precise speed regulation, ensuring reliable performance under demanding operating conditions.

Product Features

Highland PV23 MF23 Axial Piston Pumps and Motors for Closed Loop Hydrostatic Drive are designed to meet the performance demands of modern mobile machinery.
Highland Axial Piston Pumps Motors operate within a closed hydraulic circuit, enabling efficient power transfer, rapid response, and precise speed control.
High volumetric and mechanical efficiency reduce heat generation and improve fuel economy, even under fluctuating loads and long operating hours.

PRODUCT INTRODUCTION

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Axial Piston Pumps Motors

Hydrostatic Drive Systems

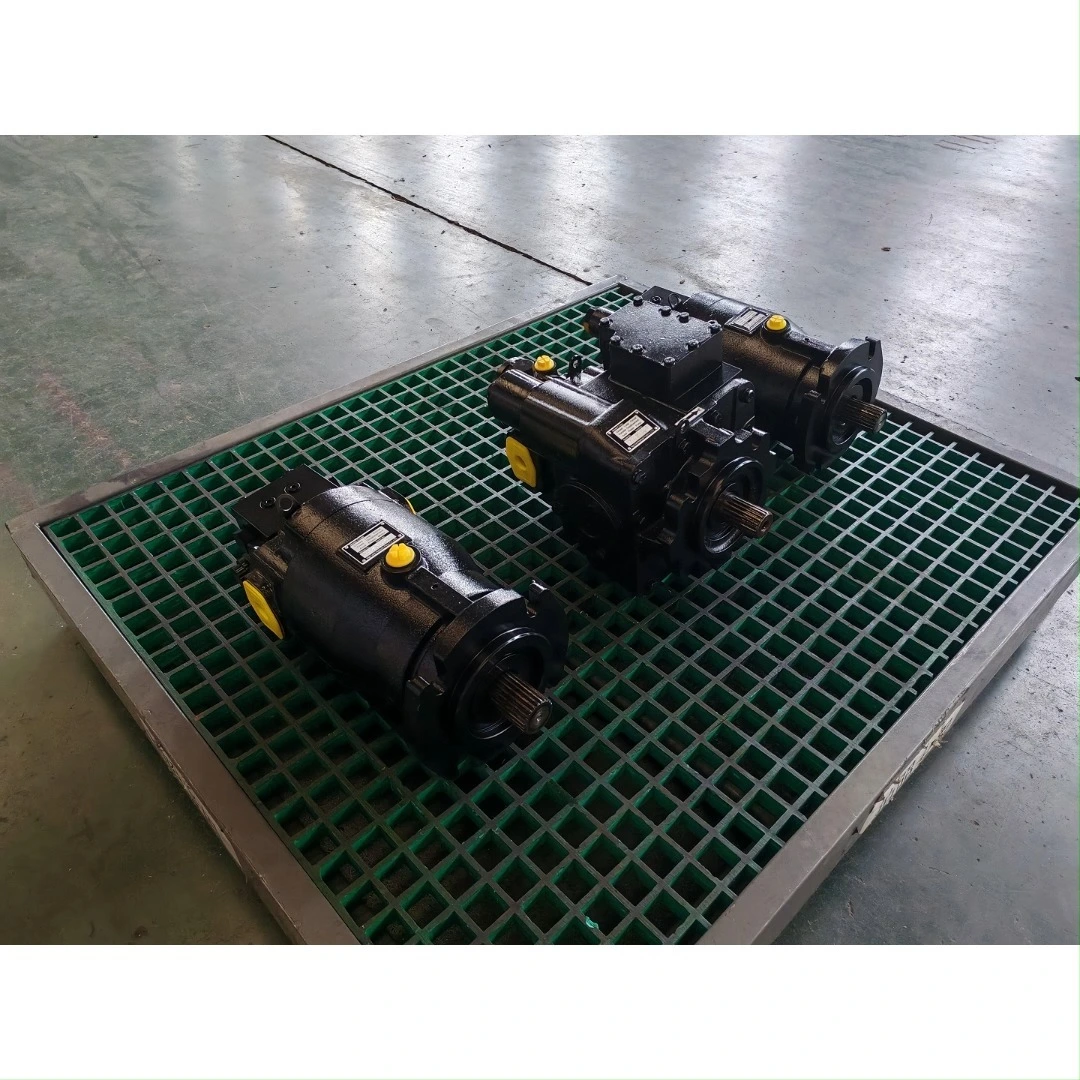

Closed Loop Hydraulics

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
