PV23 Hydraulic High Pressure Variable Displacement Axial Piston Pumps

Variable Displacement Axial Piston Pumps

PV23 Hydraulic High Pressure Variable Displacement Axial Piston Pumps

Variable Displacement: Enables accurate flow and pressure adjustment, improving system efficiency.
High Pressure: Designed to handle demanding applications with working pressures up to 420 bar for reliable power delivery.
Robust Construction: Premium materials and precision machining ensure exceptional durability and long service life under extreme loads.
Energy Efficiency: Advanced swashplate design minimizes energy loss and reduces heat generation for lower operating costs.
Versatile Application: Ideal for mobile machinery, industrial hydraulics, and agricultural equipment requiring consistent high-performance power.

MOQ:

1 set

Packaging Details:

Plywood case

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Certificate:

CE ISO9001

Inquiry

Write a Review

Hydraulic Pump Mode

PV23

Application

Walking machinery

Characteristic

High efficiency

Type

Axial piston pump

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Warranty

1 Year

Material

Cast Iron

PV23 Hydraulic High Pressure Variable Displacement Axial Piston Pumps

Highland PV23 high pressure variable displacement axial piston pumps deliver reliable power, precise control,

and superior efficiency for heavy-duty hydraulic systems across industries.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland PV23 variable displacement axial piston pump delivers high-pressure performance and precise control for demanding hydraulic applications. Built for durability and efficiency, it is ideal for construction, agricultural, and industrial machinery requiring reliable power.

Product Features

Highland PV23 hydraulic high-pressure variable displacement axial piston pump is engineered to meet the demands of heavy-duty hydraulic systems. Its variable displacement design allows precise adjustment of flow and pressure, ensuring optimal performance and energy efficiency across a wide range of operating conditions.
Capable of pressures up to 420 bar, PV23 pump provides reliable hydraulic power for construction machinery, agricultural equipment, and industrial applications.
Constructed from high-strength materials and built with precision engineering, it offers long service life and dependable operation even in harsh environments.

Product INTRODUCTION

Highland PV23 high-pressure variable displacement axial piston pumps provide exceptional efficiency and robust performance. Designed for heavy-duty mobile and industrial equipment, they offer precise flow control, long service life, and easy integration into modern hydraulic systems.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

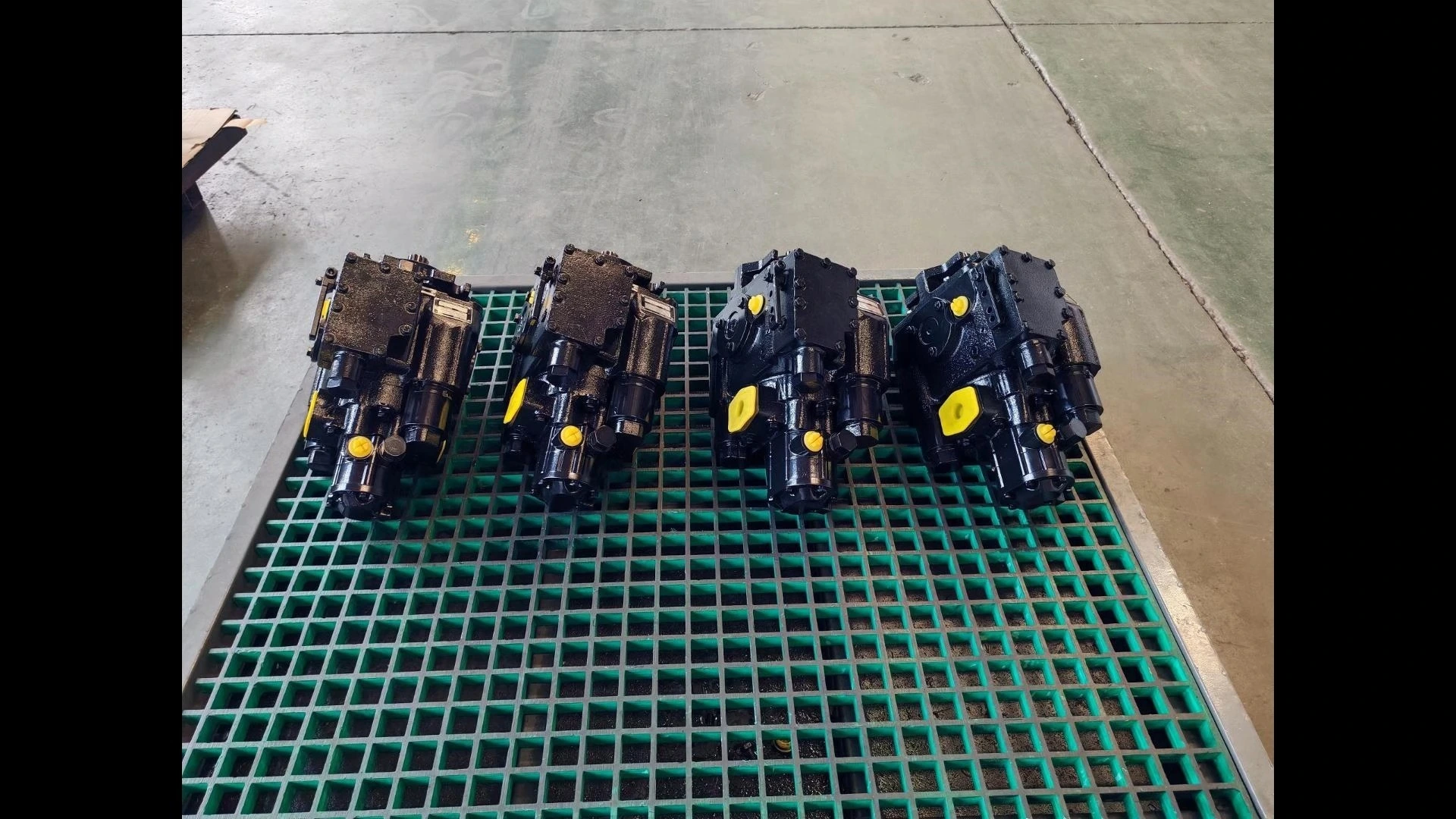

detail displaY

PV23 Hydraulic Axial Piston Pumps

Variable Displacement Axial Piston Pumps

High Pressure Axial Piston Pumps

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.
