Powering Heavy Duty Applications with Hydraulic Piston Pumps

Powering Heavy Duty Applications with Hydraulic Piston Pumps

Powerful Hydraulic Output for Heavy-Duty Tasks: Hydraulic piston pumps are engineered to provide strong and stable power output, supporting demanding applications such as construction machinery, agricultural equipment, and industrial mobile systems.
High Efficiency Under Heavy Loads: Optimized piston structures and precision internal components maintain high volumetric efficiency, even when operating under continuous heavy load conditions.
Stable Flow and Pressure Performance: Advanced hydraulic design ensures consistent flow delivery and accurate pressure control, enabling smooth operation across varying workloads and operating environments.
Durable Design for Harsh Environments: Built with high-strength materials and reinforced components, these pumps perform reliably in environments with vibration, dust, high temperature, and extended duty cycles.
Flexible Integration for Mobile Machinery: Multiple displacement options, control types, and mounting configurations allow easy integration into hydraulic systems used in heavy-duty mobile machinery.

MOQ:

1 set

Packaging Details:

Plywood case

Delivery Time:

15 DAYS FOR SMALL BATCH, 60 DAYS FOR MORE THAN 100 SETS

Payment Terms:

T/T, Western Union

Supply Ability:

100 sets per month

Inquiry

Write a Review

Application

Agricultural Machinery,Walking Machinery

Characteristic

High efficiency,Smoother operation,Simple layout

Function

Hydraulic System Components

Pressure

42mpa

Brand

HIGHLAND

Operation Mode

Closed Circuit Hydraulic System

Working Medium

Hydraulic Oil

Material

Cast Iron

Powering Heavy Duty Applications with Hydraulic Piston Pumps

Highland hydraulic piston pumps delivering powerful and reliable performance for heavy-duty applications,

ensuring efficient operation in demanding mobile and industrial hydraulic systems.

Closed Loop Hydraulic Pump Motor System.jpg

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland hydraulic piston pumps deliver powerful hydraulic performance for heavy-duty applications. Stable output, high efficiency, and durable construction ensure reliable operation in demanding environments.

Product Features

Heavy duty applications require hydraulic pumps capable of delivering powerful output, stable performance, and long-term durability.
Highland hydraulic piston pumps are designed to meet these demanding requirements, providing reliable hydraulic power for machinery operating under continuous heavy loads.
With precision piston technology and optimized internal flow paths, hydraulic piston pumps maintain high volumetric efficiency and stable output across a wide range of operating conditions.

PRODUCT INTRODUCTION

Highland Hydraulic provide hydraulic piston pumps engineered to power heavy-duty applications. Combining high pressure capability with durable construction, our pumps deliver stable hydraulic performance and long service life for mobile machinery systems.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Button

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

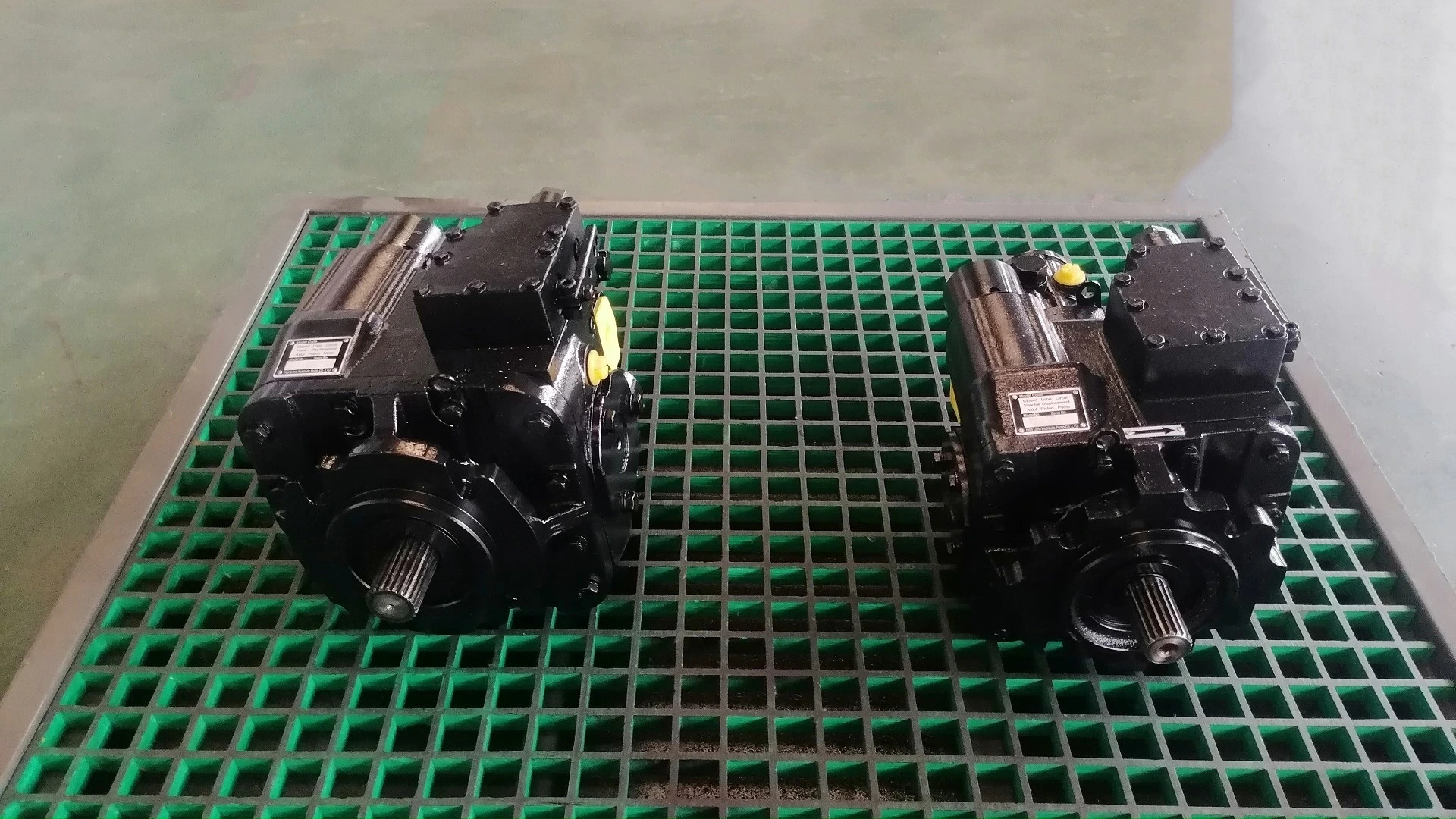

Heavy Duty Piston Pump

Hydraulic Powering

High Pressure Hydraulic Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

Packing & Delivery

To ensure the safe delivery of variable piston pump and hydraulic motor, we utilize multiple layers of protective packaging. The pump is first sealed in a durable plastic bag to prevent moisture and contamination. Next, it is securely fixed within a reinforced plywood case to prevent movement and damage during transportation, given the heavy weight of the product. Finally, the plywood case, built to standard export specifications, provides sturdy protection suitable for international shipping.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Portable hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.
