Payment Terms:
T/T, Western Union
Certificate:
CE ISO9001
Inquiry
Send your inquiry
Test Bench Use
Repair
Power Drive Mode
Electromotor
Speed Range
0-1500r/min

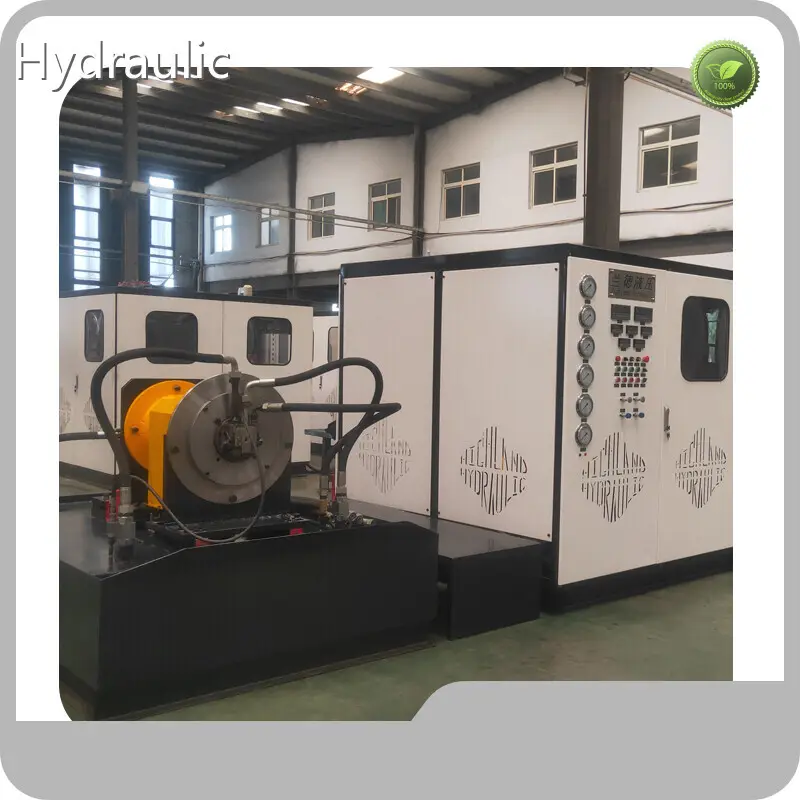

Product details of the test bench hydraulic


Product Specification

Speed Range: 0-1500r/min

Test Bench Use: Repair

Power Drive Mode: Electromotor


Product Introduction

The design concept of Highland Hydraulic test bench hydraulic is comparatively mature in the industry. The strict quality control process is carried out throughout the whole production eliminates the possible defects of the product. Shandong Highland Hydraulic Seiko Co., Ltd has gained rapid development in both product and market thanks to more than decade years of product R&D and production experience.

PRODUCT FEATURES

  1. Modular Design: Flexible combination of functional modules for multi-scenario applications

  2. High-precision Measurement: Imported sensors ensure testing accuracy up to ±0.5%FS

  3. Intelligent Control: Equipped with PLC control system for automated testing process

  4. Multi-functional Testing: Capable of testing various parameters including pressure, flow and temperature

多路阀液压试验台

Products Advantages

Our hydraulic test bench provides accurate and reliable testing for hydraulic components, ensuring optimal performance and safety. It offers customizable pressure settings, fast testing times, and easy operation for increased productivity.

Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 9
Energy-Saving Options
Includes test benches with electric or hydraulic energy recovery systems
Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 10
Power Range
Available in 75KW, 160KW, 250KW, and 400KW options
Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 11
High Load Pressure
Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L
book
Drive Options
Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive

 Product sPECIFCATIONS

Our experts can help you find the perfect hydraulic testing equipment for your home.

Pressure35mpa、42mpa
Flow Rate380L/min 、450L/min、500L/min
BrandHIGHLAND
Power75kw、90kw、110kw、160kw、200kw、250kw、315kw
Test ElementClose pump test, Open pump, Low speed motor, Valve set, Cylinder
Power Drive ModeElectromotor, Diesel engine drive, Hydraulic mortor, Power recovery
Speed Range1000r/min、0-1500r/min、0-2500r/min、0-3500r/min
Display ModeLocale(Withour Computer)、Computer (long-distance)
Working MediumHydraulic oil
Oil Tank Cubage1300L、2000L

STANDARD TEST BENCH MODELS INCLUDE

Hydraulic Pump Test Bench

Hydraulic Motor Test Bench

Hydraulic Cylinder Test Bench

Valve Factory Test Bench

Transmission & Torque Converter Test Bench

大功率液压综合试验台

ADDITIONAL SHOWCASES

液压泵-低速大扭矩马达综合试验台~1
液压泵-低速大扭矩马达综合试验台~1
液压缸试验台1~1
液压缸试验台1~1
液压缸试验台2
液压缸试验台2
800x600试验台-14
800x600试验台-14
160KW试验台产品照片
160KW试验台产品照片
大功率液压综合试验台
大功率液压综合试验台

All what you need to know about us

We are a professional manufacturer with over 20 years of experience in the hydraulic industry. As a trusted enterprise known for process quality and reliability, we pride ourselves on delivering excellence.

We have our own quality control team, equipped with highly skilled technicians and strong development capabilities, supported by a strict quality control system to ensure high standards.

We offer regular supply of individual products with immediate delivery and can customize products according to customer needs. We also provide a one-year warranty on hydraulic test benches.

Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 20
With 22 years of experience
With over 22 years of experience in the hydraulic industry.
Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 21
With 22 years of experience
The factory covers an area of more than 10,000 square meters.
Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 22
With 22 years of experience
Direct factory sales ensure high quality, competitive prices, and fast delivery.
Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 23
With 22 years of experience
Custom hydraulic test benches are available according to customer requirements.

PRODUCT DISPLAYZoom in For Better Detail

Hydraulic test bench
Hydraulic test bench
Hydraulic pump maintenance test bench
Energy Regenerative Hydraulic Test Bench
Hydraulic testing platform
Hydraulic testing platform
Hydraulic pump test bench
Hydraulic pump test bench
Hydraulic test bench
Hydraulic test bench

Product SPECIFICATIONS

Our experts can help you find the perfect hydraulic testing equipment for your home.

3fa946a1be96ab9335f21545dad1e72
5bad7b1c9cfd5025

FAQ

1
Are you a manufacturer or Trader ?
We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
2
What is your company brand name?
Our brand name is HIGHLAND.
3
What is your main products?
1. Hydraulic pump 2.Hydraulic motor 3.Hydraulic test bench 4.Hydraulic tester
4
If products have some quality problem, how would you deal with?
We will responsible for all the quality problems.
5
How long is your delivery time?
Generally it is 30 days
6
What is your terms of payment?
40% T/T in advance, balance before shipment.
7
What is the standard of package?
Plastic Film Packaging

Latest News

Our hydraulic test benches are widely used in:

Industrial Manufacturing,Construction Machinery & Heavy Equipment,Aerospace & Defense, Scientific Research & Education。

Test Bench Hydraulic CE ISO9001 - - Highland Hydraulic-1 31
Excavator Hydraulic Testing
800x600特种设备-24
Special Equipment
800x600铲运机-50
Load-Haul-Dump Machine


Company Advantage

• The core personnel of our management team have industrial experience for several decades and rich theoretical and practical experience. It provides favorable conditions for our development.
• Highland Hydraulic owns a superior geographical location. There are traffic convenience, elegant ecological environment, and abundant natural resources.
• Highland Hydraulic, founded in has been developing in the industry for years. Now we have a complete scientific production system.
• Our company builds the sales chain of 'offline + online', and focus on expanding the domestic market. After continuous exploration and improvement, we have obtained the qualifications and recognition of the domestic major markets, and has won the majority of consumers for the excellent products. Besides, our market share has been greatly increased, and our sales network has been expanded continuously.
• On the basis of the customers-oriented service concept, our company is committed to providing convenient service for customers.
Dear new and old customer, if you have other questions or good advice after browsing our site, please feel free to contact Highland Hydraulic.
