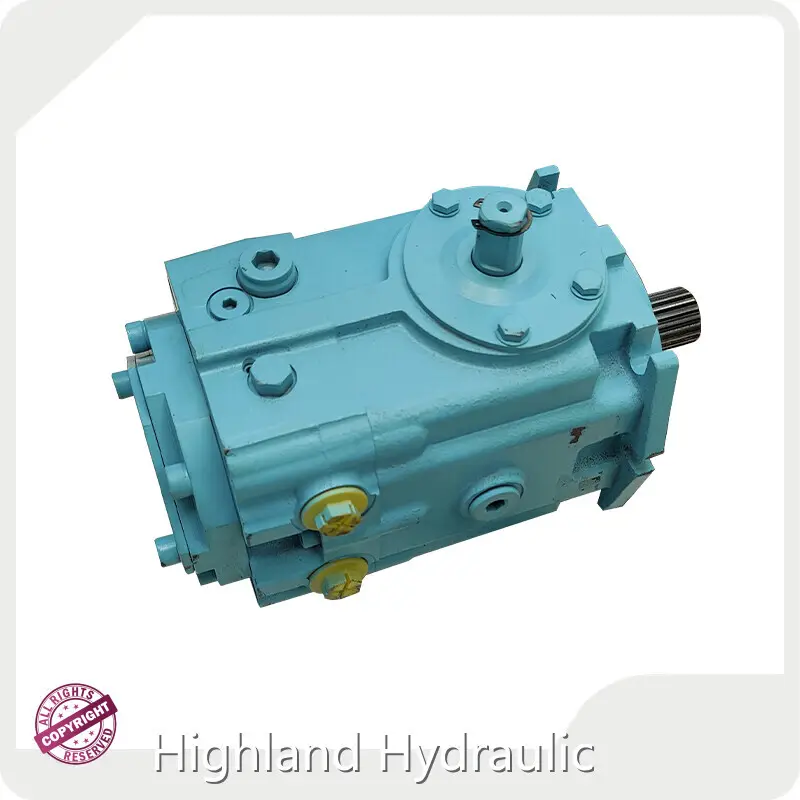

Swash Plate Hydraulic Pump Road Machinery - - Highland Hydraulic 1

Swash Plate Hydraulic Pump Road Machinery - - Highland Hydraulic 2

Swash Plate Hydraulic Pump Road Machinery - - Highland Hydraulic 3

Swash Plate Hydraulic Pump Road Machinery - - Highland Hydraulic 4

Swash Plate Hydraulic Pump Road Machinery - - Highland Hydraulic 5

Swash Plate Hydraulic Pump Road Machinery - - Highland Hydraulic 6

Swash Plate Hydraulic Pump Road Machinery - - Highland Hydraulic

Packaging Details:

Plywood case

Certificate:

CE ISO9001

Inquiry

more products

Hydrostatic Pump

Hydrostatic Motor

Hydraulic Test Bench

Portable Hydraulic Tester

Send your inquiry

Application

Road Machinery

Characteristic

Good stability

Speed

3200r/min

MPV hDRAULIC PUMP

product description

Highland Hydraulic Pump Co., Ltd. is dedicated to axial piston variable displacement pumps, and its products are easy to operate.
Most of the component technology for MPV hydraulic pump products comes from SAUER SUNDSTRAND static hydraulic drive PV22 variable piston pump and MF22 motor products from the United States. The connection size and performance parameters are completely interchangeable, and the rated pressure can reach 42MPa.

WHY CHOOSE US?

Product Characteristics

Easy Maintenance and Safety: Our high-pressure relief valve is built into the pump’s rear cover, giving you easy access for maintenance and added pressure cut-off protection for system safety.

Customizable Design: We can customize the MPV pump’s rear cover to support specific control functions in your hydraulic systems, so you get exactly what you need.

Contamination-Resistant: Designed to perform in harsh conditions, the MPV pump’s strong internal structure keeps it running smoothly, even in challenging environments.

Built to Last: Made from high-quality materials and engineered for durability, the MPV pump’s components are tough, wear-resistant, and built for a long service life.

Product SPECIFICATIONS

Rated displacement			30	50
Rated displacement	Maximum displacement	ml/r	30	50
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3
Torque	Maximum output torque	Nm	227	353
Power	Continuous Power	KW	41	72
Power	Maximum power	KW	57	87
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	MPV series hydraulic pump Hydraulic oil drainage	kg	45	46

Closed Circuit Axial Piston Pump MPV-30(50)

PDF

PRODUCT DISPLAY

Product Design: Simple and easy to disassemble, high strength and high pressure resistance, easy to install in series, with a wide range of varieties

HIGHLAND MPV Hydraulic Tandem Pumps

Tandem Hydraulic Pumps HIGHLAND

Hydraulic Tandem Pumps MPV50

mPV pUMP INTRODUCTION

CONTROL MODE

Manual servo
electric proportional servo
hydraulic servo,
modular replacement of control valves

HYDRAULIC PUMP

FEATURES

Easy Maintenance and Safety: Our high-pressure relief valve is built into the pump’s rear cover, giving you easy access for maintenance and added pressure cut-off protection for system safety.
Customizable Design: We can customize the MPV pump’s rear cover to support specific control functions in your hydraulic systems, so you get exactly what you need.
Contamination-Resistant: Designed to perform in harsh conditions, the MPV pump’s strong internal structure keeps it running smoothly, even in challenging environments.
Built to Last: Made from high-quality materials and engineered for durability, the MPV pump’s components are tough, wear-resistant, and built for a long service life.
Simple Structure for Easy Service: With a straightforward design, the MPV pump is easy to assemble, disassemble, and maintain, keeping service time and costs low.

Product Application

MPV Series is versatile across many applications

Construction Equipment: Perfect for concrete mixers, rollers, pavers, loaders, and dozers.

Agriculture and Landscaping: Reliable for harvesters, mowers, and forage machines.

Mining Operations: Built for hydrostatic-driven dump trucks, tunnel loaders, and port conveyors.

Designed for any closed-circuit system that needs smooth, adjustable speed control.

Special equipment

Mixer Truck

Special equipment

Underground loader

HYDRAULIC PUMP

Key Parameters

Displacement (ml/r): 30, 50, 70, 90, 110, 130, 160, 180, 200
Rated pressure (Mpa): 35
Max. pressure (Mpa): 42

HYDRAULIC PUMP

Installation interface

The design of each installation interface of the pump complies with international standards and is easy to operate according to installation
Non standard customization can be made according to customer needs
