Swash Plate Hydraulic Pump HPV110 - - Highland Hydraulic

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

HPV110 Axial Piston Pump excels in delivering robust hydraulic performance under extreme pressure conditions. Its compact, adaptable layout ensures effortless integration into various system configurations. Featuring advanced sealing technology and reinforced internal components, the LPV70 guarantees minimal internal leakage, stable efficiency, and prolonged service life, perfectly suited for high-demand hydraulic applications in construction, mining, and industrial equipment.

Product Features

• High-pressure axial piston pump is engineered for superior efficiency and longevity.
• With cutting-edge technology, it optimizes fluid flow, minimizes energy consumption, and enhances operational stability.
• Its robust construction ensures durability under extreme conditions, making it suitable for heavy-duty applications.
• Featuring precision engineering and innovative design, it offers smooth operation, reduced noise levels, and excellent thermal stability.

Product INTRODUCTION

HPVseries is optimized for superior operational efficiency, featuring precision-machined components that reduce internal friction and energy loss. This efficiency translates to lower operating costs and improved productivity in heavy-duty applications.

Product specification

Rated displacement			30	50	70	90	110	130
	Maximum displacement	ml/r	30	50	70	90	110	130
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3500	3200	3000	2900	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Maximum output torque	Nm	227	353	480	606	749	885
power	Continuous Power	KW	41	72	98	128	137	162
	Maximum power	KW	57	87	105	138	159	188
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
weight	HPV series hydraulic pump Hydraulic oil drainage	kg	45	46	63	64	87	87.5

HPV30(50)

PDF

HPV70（90）

PDF

HPV110(130)

PDF

detail displaY

High Pressure Axial Piston Pump

HPV70 Hydrostatic Piston Pump

High Pressure Axial Piston Pump

Product Application

6--8 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

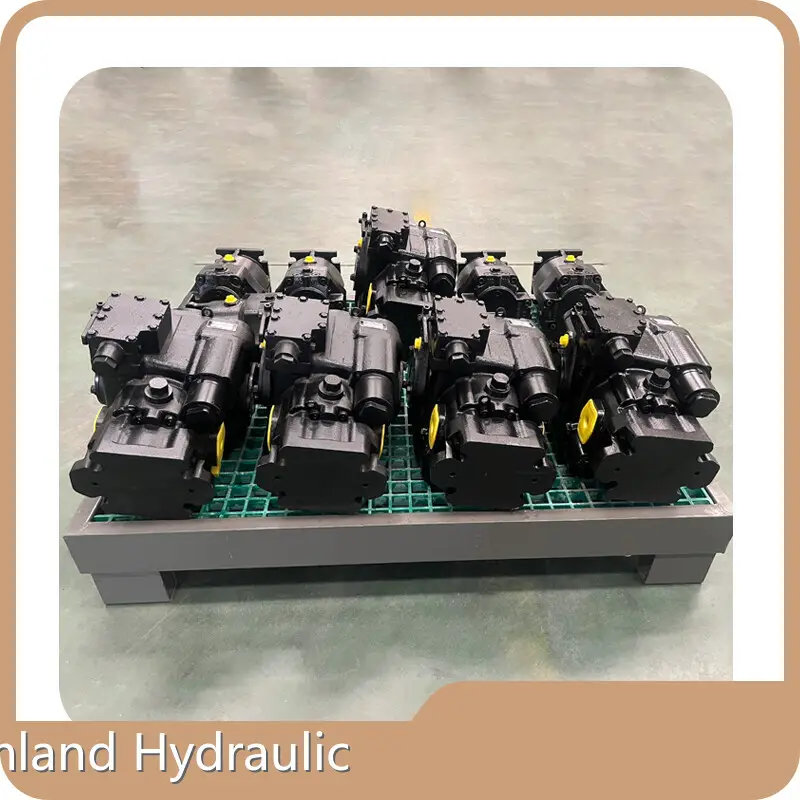

Packing & Delivery

To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

Company Advantages

· The fashionable design of swash plate hydraulic pump allows customers to enjoy the aesthetics.

· This product is methodically examined to ensure the quality and durability.

· swash plate hydraulic pump's export has brought the rich profit repayment for the company.

Company Features

· Shandong Highland Hydraulic Seiko Co., Ltd is one of the most dependable manufacturers of swash plate hydraulic pump and has been highly appraised for its extensive expertise in designing and manufacturing.

· Our R&D department is led by senior experts. These experts continuously develop new products based on market trends and introduce advanced development equipment. They are engaged in pursuing high-quality products to meet the needs of domestic and foreign swash plate hydraulic pump markets.

· Shandong Highland Hydraulic Seiko Co., Ltd is committed to building the world's first brand among similar products! Please contact.

Application of the Product

The swash plate hydraulic pump of Highland Hydraulic can meet the different needs of different customers.

Highland Hydraulic has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
