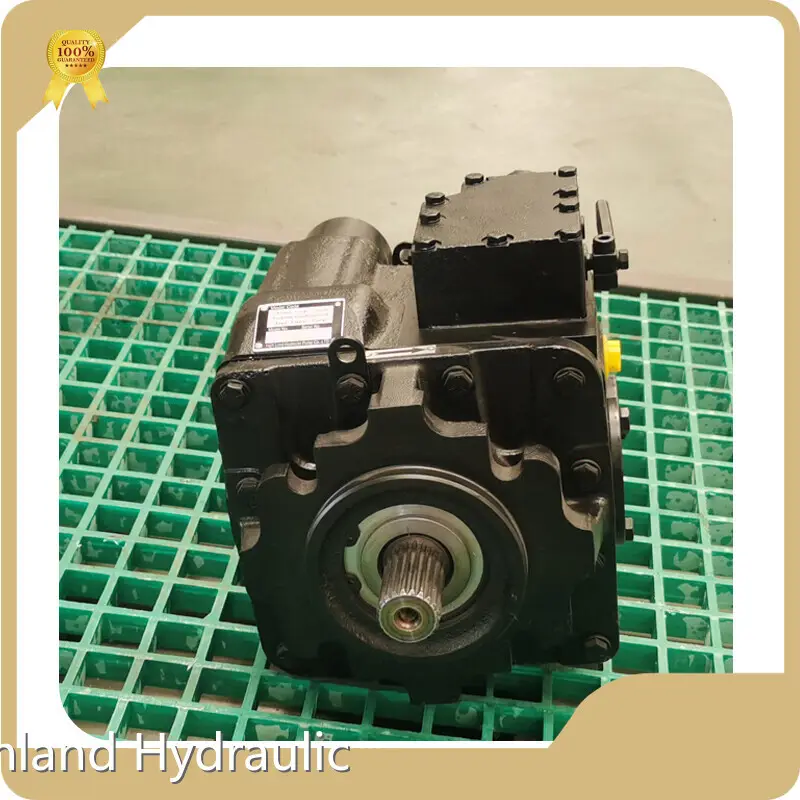

Swash Plate Hydraulic Pump 42mpa by Highland Hydraulic

Product details of the swash plate hydraulic pump

Product Specification

Pressure: 42mpa

Material: Cast Iron

Operation Mode: Closed Circuit Hydraulic System

Speed: 3200r/min

Quick Overview

swash plate hydraulic pump from Shandong Highland Hydraulic Seiko Co., Ltd must be built in fine, exquisite and swash plate hydraulic pump. The product is proven to function timelessly on a basis of its reasonable design and fine craftsmanship. It can be used for a long time without breakdown. As the society changing, the quality of swash plate hydraulic pump remains the same as before.

Product Description

Compared with other similar products, the outstanding advantages of our company's swash plate hydraulic pump is mainly reflected in the following points.

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

When performance matters but space is tight, the PV23 Axial Piston Pump is the perfect solution for concrete mixer trucks. Its rugged build withstands continuous high-pressure operation, and its streamlined, maintenance-friendly design keeps installation simple and downtime to a minimum.

Product Features

•  Heavy-Duty Construction: Engineered with high-strength alloy materials to withstand rigorous operational stresses.
• - Low-Noise Operation: Optimized internal components minimize hydraulic pulsations, significantly reducing operational noise.
• - Superior Wear Resistance: Surface-treated internal components enhance resistance to abrasion, extending operational life.

Product INTRODUCTION

Designed specifically to endure the rigorous workloads of concrete mixer trucks, the PV23 Axial Piston Pump combines resilience and adaptability. Its modular, space-efficient design facilitates straightforward integration with other hydraulic components, providing operators with flexibility, efficiency, and reduced downtime.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

Read More

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

PV23 Hydrostatic Pump

Hydraulic Piston Pump PV23

PV23/089 Hydraulic Piston Pump

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine
