Portable Hydraulic Tester 420bar Wholesale - Highland Hydraulic
Product details of the portable hydraulic tester
Product Specification
Working Medium: Hydraulic Oil
Precision: ±1％
Max Pressure: 420bar
Product Information
Highland Hydraulic portable hydraulic tester is designed and manufactured using the best material. Quality controls are carefully carried out throughout the production cycle to ensure the quality of the product meets the requirements of both industry and customers. Our portable hydraulic tester is certified to ISO and FDA.
HIGHLAND MYHT SERIES
Portable hydraulic test equipment for measuring flow, pressure and temperature within a hydraulic system
Products Advantages
Equipped with high-precision sensors and intelligent analysis algorithms, the system achieves a testing accuracy of ±1%, with a response time of <0.1 seconds and a maximum pressure of 420 bar. It supports a variety of hydraulic equipment, meeting the testing needs of different devices.
INSTRUMENT MAINTENANCE
Product Specifications
|
Model |
Max flow(lpm) |
Max presure(bar) |
Dimension(mm) |
Weight(kg) |
|
MYHT—1—2 |
200 |
420 |
295×265×210 |
6.1 |
|
MYHT—1—4 |
400 |
420 |
295×265×210 |
8.8 |
|
MYHT—1—5 |
500 |
420 |
295×265×210 |
10.2 |
|
MYHT—1—7 |
800 |
420 |
310×285×261 |
14 |

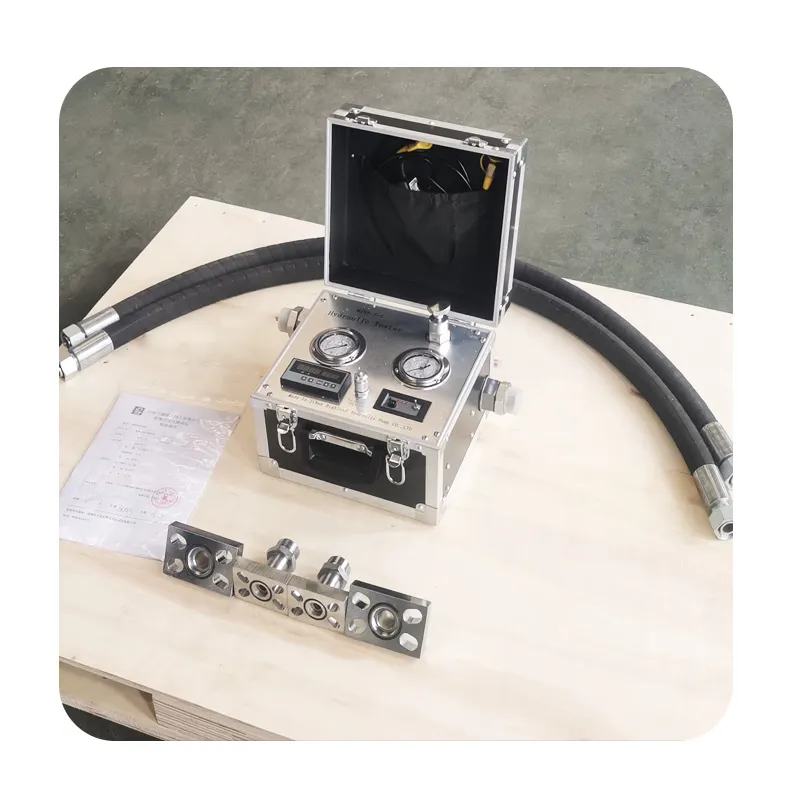

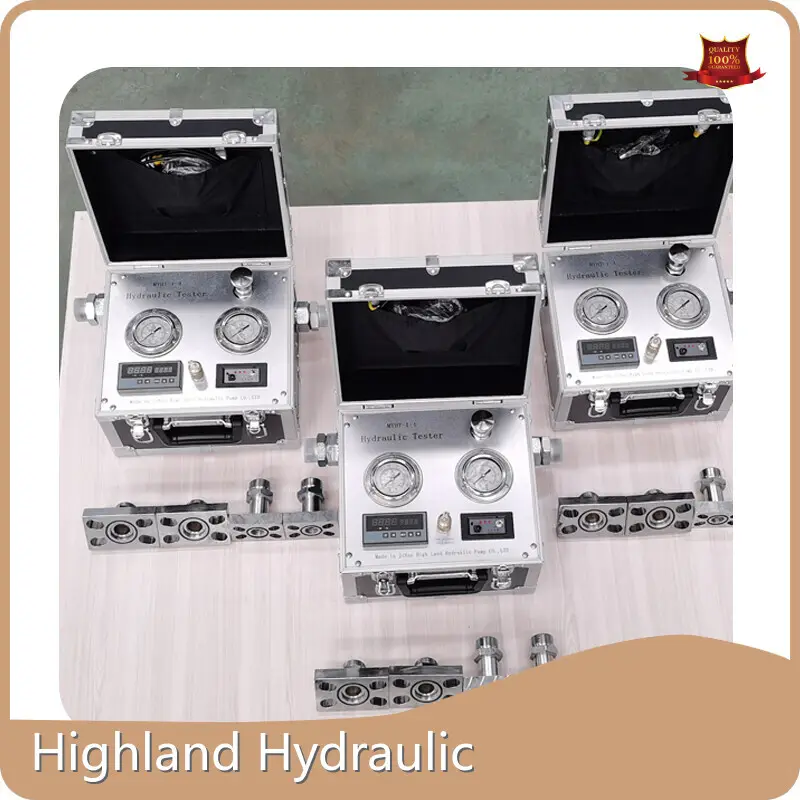

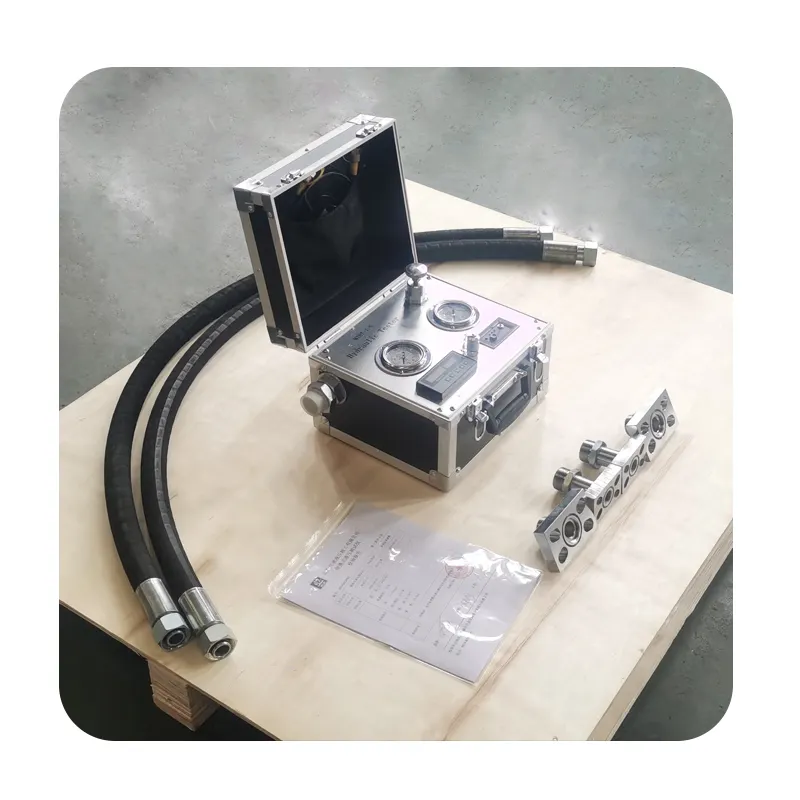

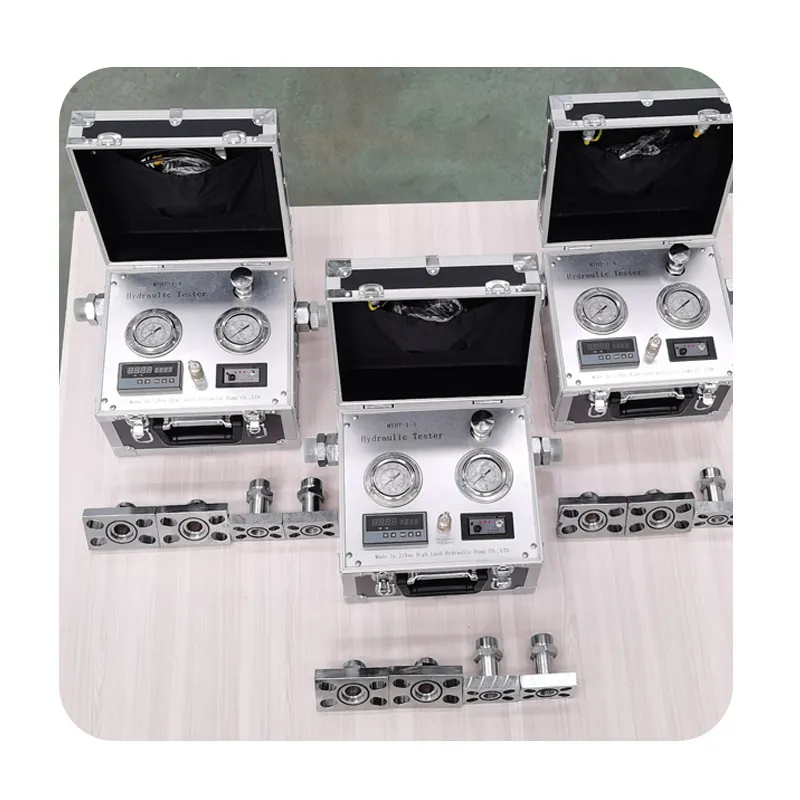

MYHT series portable hydraulic tester
Portable hydraulic tester is suitable for on-site diagnosis and measurement of hydraulic system flow, pressure, and temperature in construction equipment!
portable hydraulic tester
The Portable Hydraulic Tester for Concrete Equipment is an intelligent detection device specially designed for construction machinery hydraulic systems. Incorporating advanced sensor technology and digital processing systems, it enables quick and accurate diagnosis of hydraulic system failures in concrete pump trucks, mixer trucks and other equipment.
Key Features
- Compact and lightweight design , ideal for field use
- LCD display for real-time monitoring of pressure, flow rate, temperature and other critical hydraulic parameters
- Rapid diagnosis of hydraulic system failures with precise fault location
- Compatible with various concrete equipment including pump trucks and mixers
- Built-in database of hydraulic system troubleshooting solutions
- Rugged industrial-grade housing for tough construction site conditions
Fault Diagnosis Solutions
- Insufficient Pressure: Quickly locate pump, valve or seal failures
- System Overheating: Analyze abnormal oil temperature causes to prevent hydraulic oil deterioration
- Slow Operation: Check flow rate compliance and evaluate pump/motor efficiency
- Pressure Fluctuation: Identify air entrainment or contamination issues
- Abnormal Noise: Analyze possible cavitation or mechanical failures through pressure curves
Applications
◆ Loading valve: Under normal connection conditions, if the loading valve cannot be loaded, check whether there are pollutants inside the valve
◆ Battery: The instrument is equipped with a 12V lithium battery, which can work for up to 30 hours when connected and has a charging time of 4-8 hours per charge
◆ Flow meter: The flow meter cannot display data normally, possibly due to contamination. Please contact the manufacturer for resolution
Packing & Delivery
To protect the goods, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.
