Closed loop hydraulic pump/hydraulic motor manufacturer & hydraulic solutions provider - Highland Hydraulic

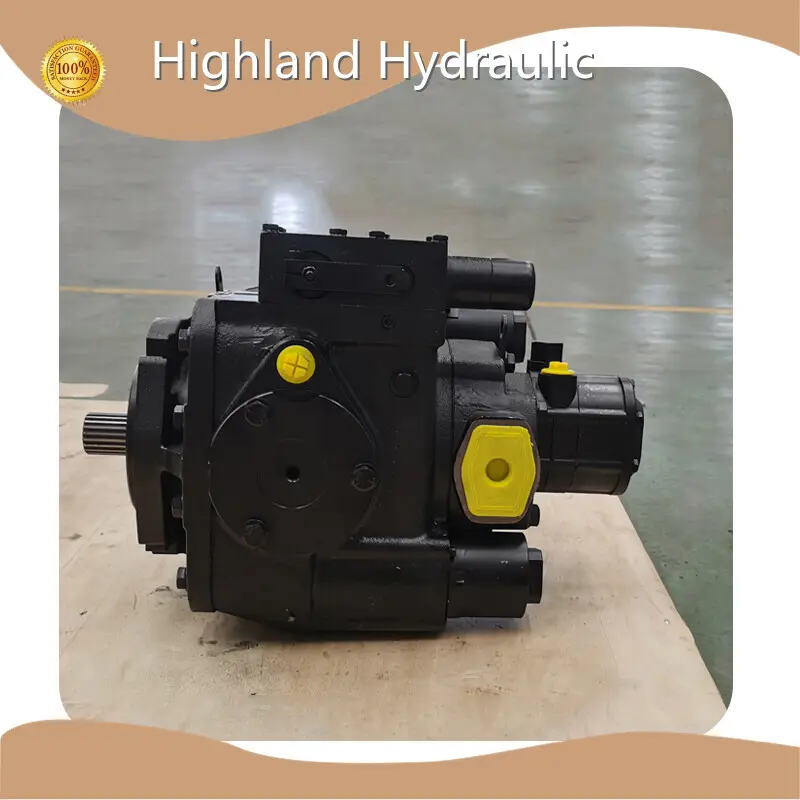

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic 1

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic 2

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic 3

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic 4

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic 5

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic 6

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic 7

Hydrostatic Pumps and Motors Axial Piston Pump - - Highland Hydraulic

Certificate:

CE ISO9001

Inquiry

Application

Walking machinery

Type

Axial piston pump

Pressure

42mpa

Operation Mode

Closed Circuit Hydraulic System

Product details of the hydrostatic pumps and motors

Product Specification

Type: Axial piston pump

Pressure: 42mpa

Operation Mode: Closed Circuit Hydraulic System

Application: Walking machinery

Quick Overview

The mature production process of Highland Hydraulic hydrostatic pumps and motors makes it more valuable. Quality is the base of Highland Hydraulic, which is crucial to bussiness success. hydrostatic pumps and motors has powerful and sustained advantages.

Product Information

With the pursuit of perfection, Highland Hydraulic exerts ourselves for well-organized production and high-quality hydrostatic pumps and motors.

High Efficiency Variable Displacement

hydraulic Piston Pump Manufacturer

Highland Hydraulic are a trusted manufacturer of high-efficiency variable displacement hydraulic piston pumps,

delivering reliable, energy-saving, and durable solutions for industrial applications worldwide.

our advantage

Product design

Simple and easy to disassemble and assemble, high strength and high pressure resistance, easy to install in series, full variety

Low price

We promise the lowest price for new products of the same variety in the world

Control mode

Manual servo, electric proportional servo, hydraulic servo, control valve can be replaced modularly

Simple operation

The installation interface design of the pump meets international standards and is easy to install and operate

Product Description

Highland variable displacement hydraulic piston pumps are engineered for maximum efficiency and adaptability. They offer smooth and precise control, ensuring optimal performance in diverse industrial applications. Designed with advanced materials and technology, our pumps reduce energy consumption while maintaining durability.

Product Features

As a leading manufacturer of high-efficiency variable displacement hydraulic piston pumps, we provide cutting-edge solutions for industrial and mobile hydraulic systems.
Highland hydraulic pumps feature enhanced efficiency, and durability, making them ideal for applications in construction, agriculture, manufacturing, and more.
We continuously invest in R&D to develop advanced hydraulic technologies, ensuring reliability and longevity in demanding conditions.

Product INTRODUCTION

Highland hydraulic manufacture high-performance variable displacement hydraulic piston pumps, designed to deliver efficiency, durability, and precise control. Highland hydraulic pumps support various industries, including construction, agriculture, and manufacturing, ensuring superior hydraulic performance with energy-saving benefits.

PRODUCT SPECIFICATIONS

Rated displacement			20	22	23	110
Rated displacement	Maximum displacement	ml/r	33.3	69.8	89	110.8
Speed	Maximum continuous operating speed (Full load condition)	r/min	3500	3200	2700	2700
	Rated speed	r/min	2500
	Minimum continuous operating speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Maximum working pressure (instantaneous)	Mpa	42
	Continuous working pressure ( Δ P)	Mpa	30
	Allowable shell pressure (absolute)	Mpa	Constant0.25，Peak value0.5
Torque	Continuous output torque (Under continuous work pressure)	Nm	162.3	342.6	432.9	535.3
Torque	Maximum output torque	Nm	227	480	606	749
Power	Continuous Power	KW	41	98	128	137
Power	Maximum power	KW	57	105	138	159
Temperature	Allowable temperature of shell	℃	80
Temperature	Maximum operating temperature of fuel tank	℃	70
Angle	Maximum inclination angle of the inclined plate	°	± 18 °
Weight	PV series hydraulic pump Hydraulic oil drainage	kg	45	63	79	79

PV20

PDF

PV22

PDF

PV23

PDF

PV110

PDF

detail displaY

Hydraulic Piston Pump

Variable Displacement Piston Pump

Variable Piston Pump Manufacturer

Product Application

6-12 cubic meter concrete mixer truck

Cotton picker

Engineering ship pump

Underground loader

Mine use loader

Cane Grabber Machine

About Us

Shandong Highland Hydraulic Seiko Co., Ltd. is one of China's largest hydraulic enterprises, covering 10,000㎡ with more than 20 years of experience. We specialize in hydraulic pumps, motors, testers, and test benches for industries like agriculture, engineering, shipbuilding, mining, and oil exploration. With strong R&D, advanced equipment, and over 20 patents, we have customized hydraulic systems and test benches for 6,000+ enterprises. Our products serve OEMs and repair companies worldwide, including America, Europe, and Asia, recognized for quality, service, and competitive pricing. We look forward to long-term, mutually beneficial cooperation.

Packing & Delivery

To protect hydrostatic pump, we pack and fix goods at least two layers. The first layer is plastic bag to protect against moisture, the second is to fix hydrostatic pump in the plywood case because its heavy goods, the third is plywood case, standard export package.

FAQ

Are you a manufacturer or Trader ?

We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.

What is your company brand name?

Our brand name is HIGHLAND.

What is your main products?

1. Hydrostatic Pump 2. Hydrostatic Motor 3. Hydraulic test bench 4. Hydraulic tester

If products have some quality problem, how would you deal with?

We will responsible for all the quality problems.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is15-20 days if the goods are not in stock, it is according to customers’ quantity.

What is your terms of payment?

Payment<=10000USD,100% in advance. Payment>=10000USD, 40% T/T in advance, balance before shipment.

What is the standard of package?

Export standard package or special package according to customer requirement.

What is the supply ability for the Hydraulic Piston Pumps?

The supply ability for the Hydraulic Piston Pumps is 200 Sets per month.

Company Information

Shandong Highland Hydraulic Seiko Co., Ltd is mainly engaged in the business of Hydraulic pump、Hydraulic motor、Hydraulic test benches, currently located in de zhou. Highland Hydraulic has set up an experienced and knowledgeable team to provide all-around and efficient services for customers. Welcome to contact us.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
